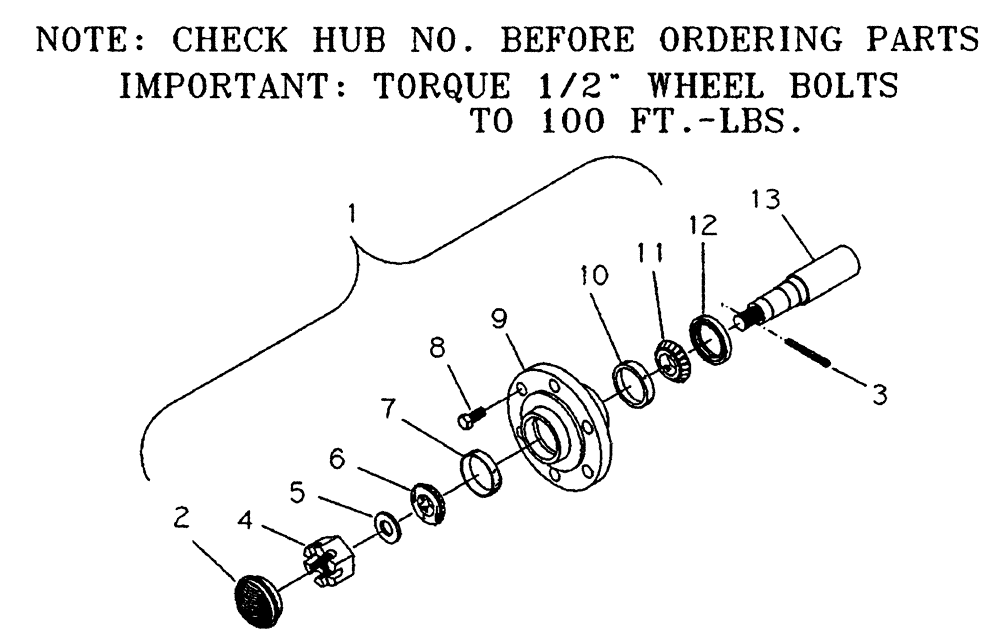

Запчасти Case IH NPX2800 (44.100.01) - 783 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

28078305

HUB ASSY.

783, With Spindle

1шт.

1

28178300

HUB ASSY.

783, 6 Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

5

495-61094

WASHER,7/8" x 2 1/4" x .16"

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Bore, TImken LM670480

1шт.

7

651817R1

BEARING CUP

2.33 OD, Timken LM67010

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1-15/32, NF, Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub With Cups

1шт.

10

663558R1

BEARING CUP

2.89 OD, Timken LM501310

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 Bore, Timken LM501349

1шт.

12

145769C91

OIL SEAL

1.875 x 3.005, CR18823

1шт.

13

28378305

SPINDLE

2 Spindle

1шт.
