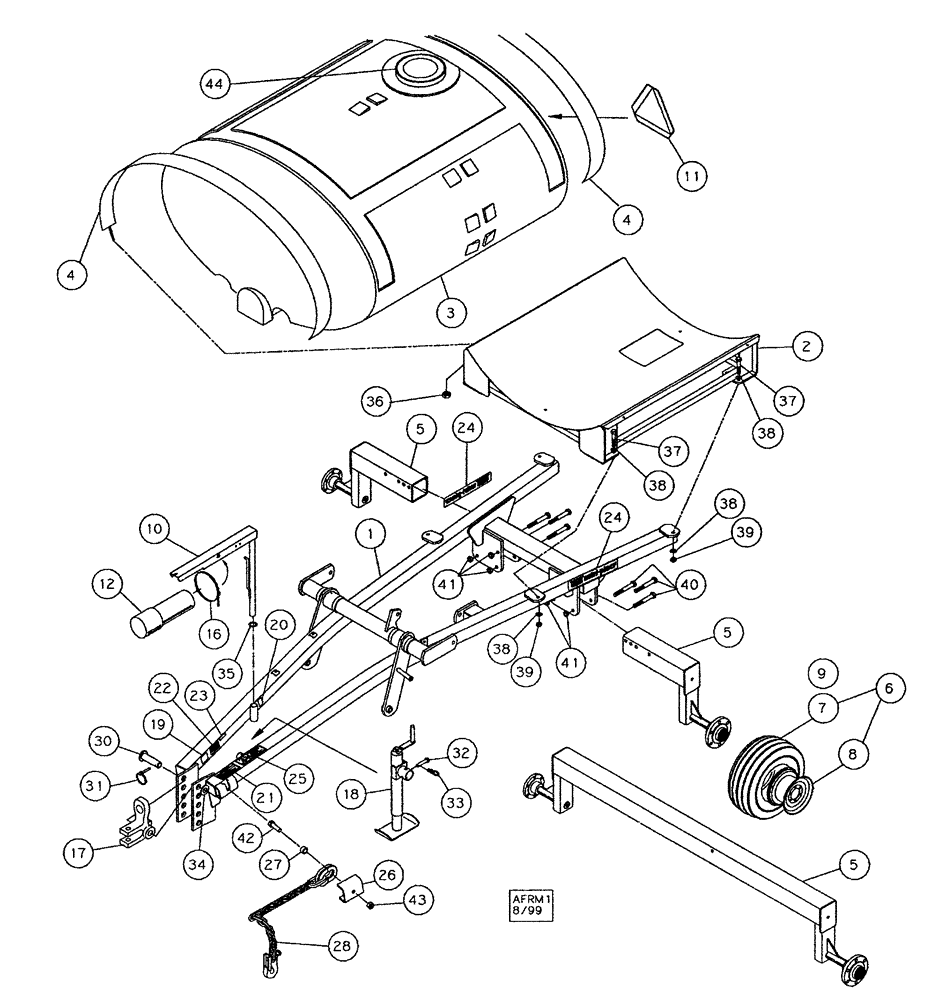

Запчасти Case IH NPX2800 (39.100.01) - MAIN FRAME 2007 AND PRIOR UNITS (39) - FRAMES AND BALLASTING

1

87336211

FRAME ASSY

A-Frame

1шт.

2

87338177

MOUNTING PARTS

Tank, 500 Gallon

1шт.

2

87338188

MOUNTING PARTS

Tank, 850 Gallon

1шт.

3

87461175

TANK

Ellipitacal, 500 Gallon

1шт.

3

87461176

TANK

Ellipitical, 850 Gallon

1шт.

4

05302335

STRAP

Tank, 500 Gallon

2шт.

4

05302365

STRAP

Tank, 850 Gallon

3шт.

5

05302200

STUB AXLE/STEERING S

Spindle, Adjustable, 783, 6 Bolt

2шт.

5

87338161

ARM ASSY.

Spindle, Adjustable, 50-8, 8 Bolt

2шт.

5

87338165

AXLE

Fixed, 120, 50-8, 8 Bolt

1шт.

6

10010160

WHEEL ASSY.

12.5L x 15SL, Tire And Wheel

2шт.

6

87461163

WHEEL ASSY.

14L x 16.1, Tire And Wheel

2шт.

7

NSS

NOT SOLD SEPARAT

12.5L x 15, 10 Ply, T-1

2шт.

7

NSS

NOT SOLD SEPARAT

Tire - 14L x 16.1, 12 Ply, T-1

2шт.

8

10110154

WHEEL

15 x 10 LB, For 783, 6 Bolt Hub

2шт.

8

87461170

WHEEL ASSY.

16.1 x W11C, For 50-8, 8 Bolt Hub

2шт.

9

NSS

NOT SOLD SEPARAT

Tube - 14L x 16.1, T-1 Tire, For 50-8, 8 Bolt Hub

2шт.

10

05302150

STAND

Hose

1шт.

11

311858A1

DECAL

SMV Sign

1шт.

12

30026030

TUBE

Manual

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

17

20092310

CLEVIS

Hitch Combination

1шт.

18

87416370

JACK,40.1 mm L

5K/7K, Square Tube

1шт.

19

NSS

NOT SOLD SEPARAT

Plate - Serial Number

1шт.

21

18534228

DECAL

Warning

1шт.

22

18534107

DECAL

Patents

1шт.

23

18534174

DECAL

Other Patents

1шт.

24

18534272

DECAL

Nutri-Placr

2шт.

25

18534317

WARNING SIGN

Caution

1шт.

26

04681210

BRACKET

1шт.

27

04681211

BUSHING

1шт.

28

87393082

CHAIN

20,000 Lbf, Safety

1шт.

30

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8"

1шт.

31

D33805

PIN

7/16" x 2", Klik

1шт.

32

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

33

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

1шт.

34

17426001

WASHER

1-5/8" x 1/4"

1шт.

35

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", 10 Gauge, Machine

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

4шт.

37

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

38

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

39

425-1010

NUT,5/8"-11, G5

4шт.

40

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

6шт.

41

425-1014

NUT,7/8"-9, G5

6шт.

42

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

43

86992219

LOCK NUT

1"

1шт.

44

30000012

LID

10", Screw On

1шт.
