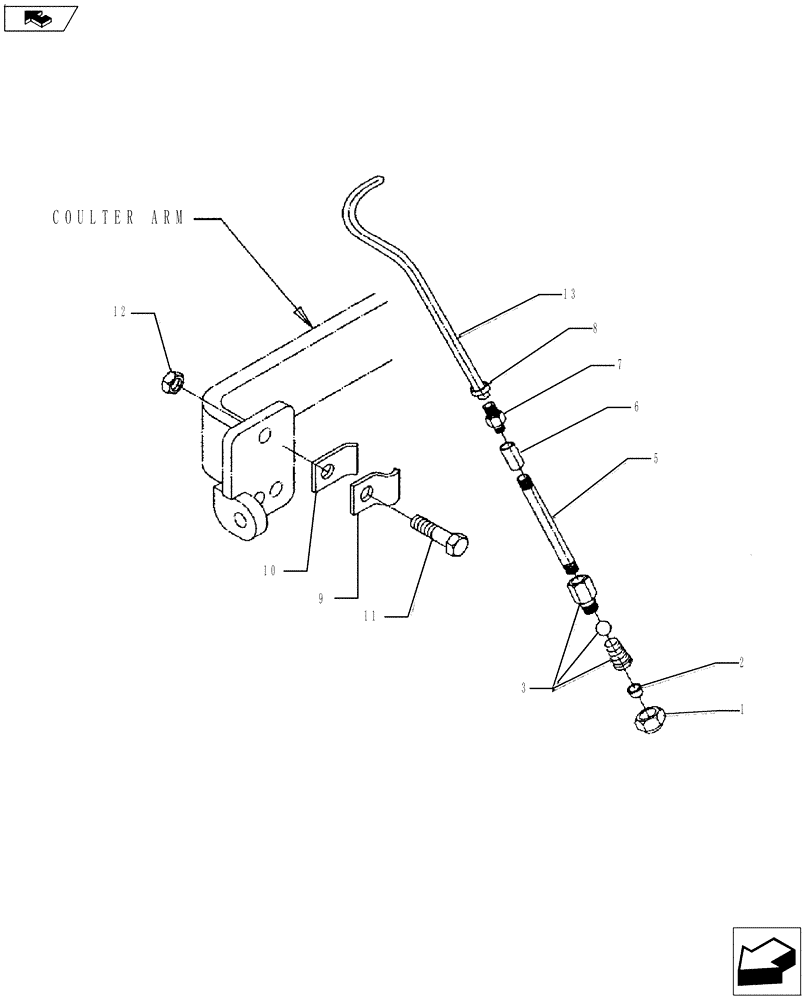

Запчасти Case IH NPX2800 (75.200.05[02]) - COULTER INJECTOR ASSEMBLY 2010AND AFTER Invalid section

05302856

KIT

Injector, For One Injector

1шт.

1

34600031

CAP

Nozzle

1шт.

2

34600010

NOZZLE

Tip, Solid Stream, .055

1шт.

2

34600011

NOZZLE

Tip, Solid Stream, .061

1шт.

2

34600012

NOZZLE

Tip, Solid Stream, .067

1шт.

2

34600013

NOZZLE

Tip, Solid Stream, .078

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600014

NOZZLE

Tip, Solid Stream, .086

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600015

NOZZLE

Tip, Solid Stream, .107

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600025

NOZZLE

Tip, Solid Stream, .047

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600026

NOZZLE

Tip, Solid Stream, .039

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600027

NOZZLE

Tip, Solid Stream, .033

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

2

34600028

NOZZLE

Tip, Solid Stream, .125

1шт.

2

34600029

NOZZLE

Tip, Solid Stream, .140

1шт.

3

34600030

CHECK VALVE

1шт.

5

15010253

PIPE

1/4" x 6"

1шт.

6

15070251

FLUID COUPLING

1/4", NPT

1шт.

7

15040256

FITTING,1/4" - 18 NPT x 1/2" Hose Barb, SST

1/4" x 1/2", NPT

1шт.

8

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

3/8"

1шт.

9

05310130

CLAMP

Outer

1шт.

10

05310140

CLAMP

Inner

1шт.

11

16910161

BOLT

5/8" x 2", Stainless

1шт.

12

14091002

NUT

5/8", Hex, Stainless

1шт.

13

25630805

HOSE

1/2" x 60"

1шт.
