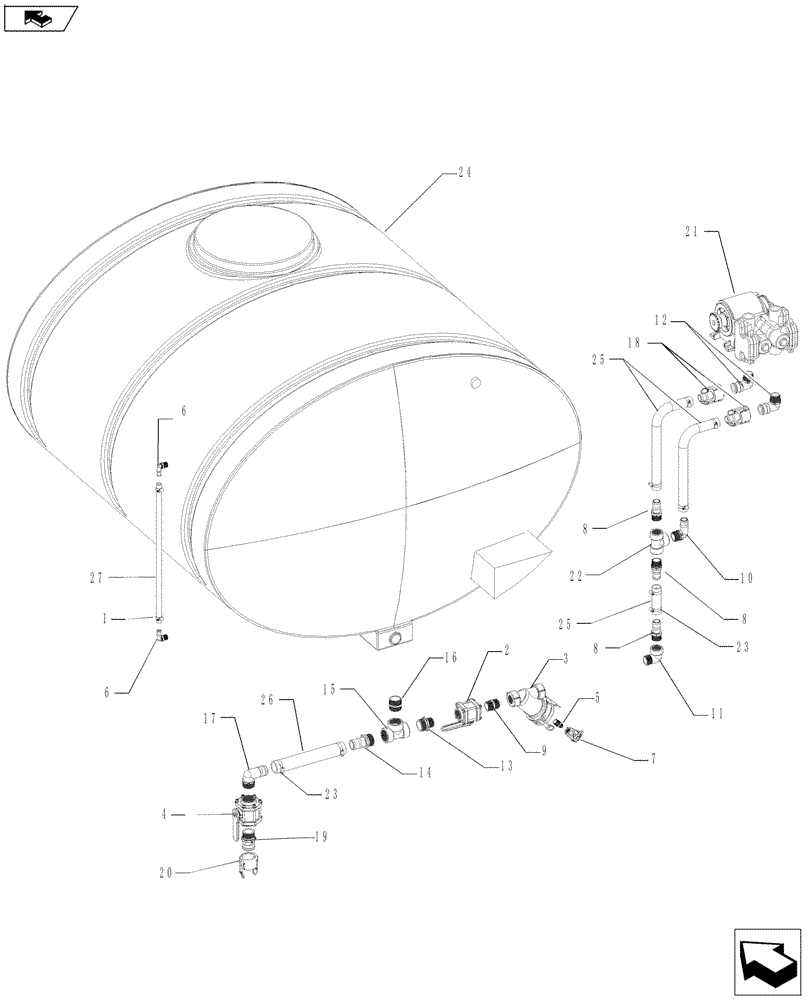

Запчасти Case IH NPX2800 (75.200.06) - TANK FITTING DOUBLE PISTON PUMP 1300 GAL (75) - SOIL PREPARATION

1

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

2

34212001

VALVE,1-1/2" Full Port Valve

1-1/2" Ball Valve

1шт.

3

3421002

Line Strainer

1шт.

4

34216001

VALVE,2" Full Port Valve

2" Ball Valve

1шт.

5

34306041

HYD CONNECTOR

3/4" NPT x 1/2" NPT Reducer Nipple

2шт.

6

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

3/4" NPT x 3/4" Hose Barb, 90 Deg.

1шт.

7

34308003

VALVE,1/2" Single Union Poly Valve

1/2" NPTF Union Poly Ball Valve

1шт.

8

34312001

PIPE FITTING

1-1/2" NPT x 1-1/2" Hose Barb

3шт.

9

34312002

HYD CONNECTOR

1-1/2" NPT Short Poly Nipple

1шт.

10

34312003

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1-1/2" NPTM x 1-1/2" Hose Barb, 90 Deg.

1шт.

11

34312005

ELBOW

1-1/2" NPT Pipe Street Elbow, 90 Deg.

1шт.

12

34312012

ELBOW

2шт.

13

34316001

REDUCER FITTING

2" NPT x 1-1/2" Pipe Reducer

1шт.

14

34316003

PIPE FITTING

2" NPT Poly Hose Barb

2шт.

15

34316005

TEE

2" NPT Poly

1шт.

16

34316006

HYD CONNECTOR

2" NPT Short Poly Nipple

1шт.

17

34316008

PIPE FITTING

2" x 90 Deg.

1шт.

18

34412012

PUSH-PULL COUPLING

1-1/2" Female Coupler

1шт.

19

34416002

PUSH-PULL COUPLING

2" NPTF Male Coupler

1шт.

20

34416022

DUST CAP,2" Cap

2"

1шт.

21

84315374

PUMP

Double Pistion

1шт.

22

84325029

TEE,1-1/2" Poly Tee

1-1/2" Poly Pipe

1шт.

23

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

8шт.

24

87461178

TANK

1300 Gallon

1шт.

25

BULK

Hose, 1-1/2" ID

1шт.

26

BULK

Hose, 2" ID

1шт.

27

BULK

Hose, 3/4" ID

1шт.
