Запчасти Case IH NPX2800 (75.200.03[01]) - COULTER KNIFE ASSEMBLY 2009 AND PRIOR (75) - SOIL PREPARATION

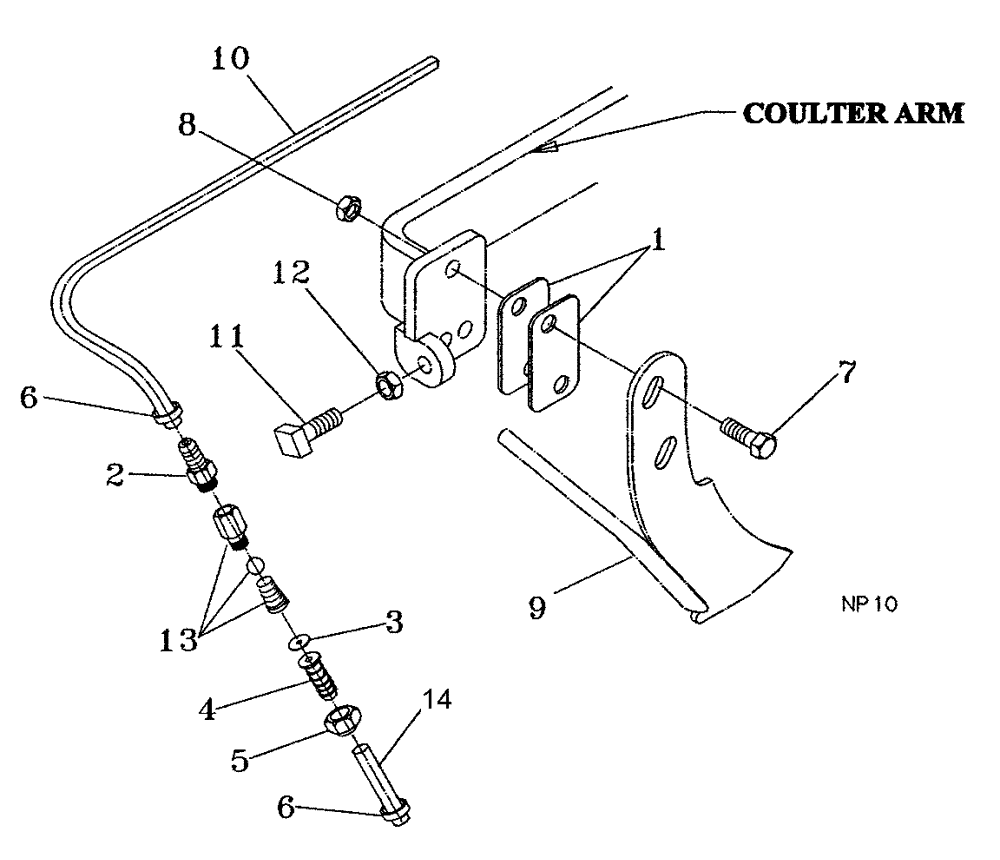

Схема запчастей Case IH NPX2800 - (75.200.03[01]) - COULTER KNIFE ASSEMBLY 2009 AND PRIOR (75) - SOIL PREPARATION
4
7
2
5
10
6
9
11
6
13
8
10
1
12
3

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Knife Hardware, Enough For One Knife

1шт.

1

05310110

SHIM

16 Gauge

1шт.

1

05310120

SHIM

10 Gauge

1шт.

2

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" x 1/2", NPT, Hose

1шт.

3

34600020

ORIFICE

51

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600021

ORIFICE

72

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600022

ORIFICE

98

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600023

ORIFICE

125

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

3

34600024

ORIFICE

86

1шт.

Parts Supplied By Fertilizer Distributor

1шт.

4

34600007

PIPE FITTING

3/8 ID, Hose

1шт.

5

34600031

CAP

Nozzle

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

7

16910161

BOLT

5/8" x 2", Stainless

2шт.

8

14091002

NUT

5/8", Stainless

2шт.

9

87437978

KNIFE

With 3/8" Tube

1шт.

10

25630601

HOSE

3/8" x 166'

1шт.

10

25630805

HOSE

1/2" X 60'

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2", Square Head

1шт.

12

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

13

34600030

CHECK VALVE

1шт.

14

34600019

NOZZLE HOLDER

T-J, With Hose Barb

1шт.

14

05310023

KIT

Check Valve And Orfice

1шт.

Выбрано товаров: 27
