(75.200.02) - LIQUID COULTER ASSEMBLY

Запчасти Case IH NPX2800 (75.200.02) - LIQUID COULTER ASSEMBLY (75) - SOIL PREPARATION

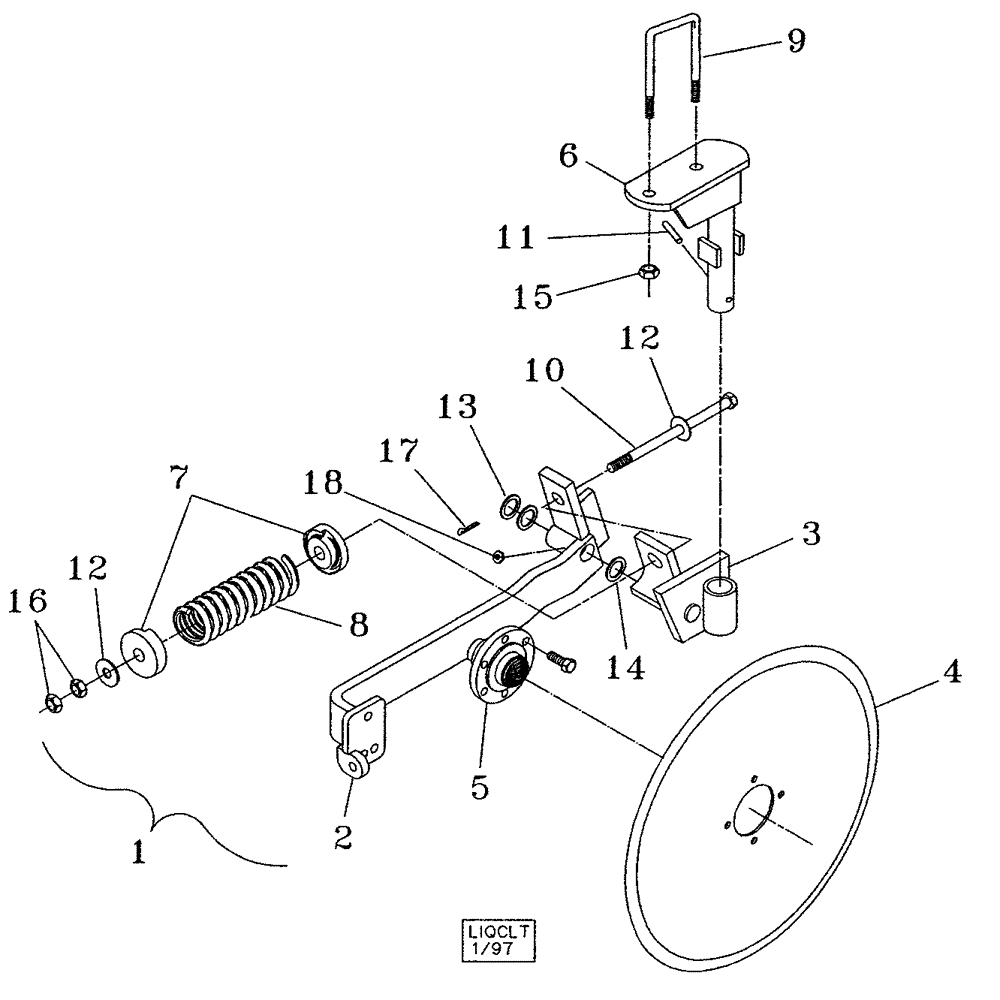

Схема запчастей Case IH NPX2800 - (75.200.02) - LIQUID COULTER ASSEMBLY (75) - SOIL PREPARATION
7
4
11
10
18
1
13
14
3
12
9
16
17
15
12
5
6
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

05310100

COULTER

20", Arm

1шт.

2

05310200

ARM

20", Coulter

1шт.

3

04663200

BAR ASSY.

Pivot

1шт.

4

443627A1

PLOW DISC

20", Coulter, rippled

1шт.

5

28063331

HUB ASSY.

633, Spindle

1шт.

6

05302700

MOUNTING PARTS

Coulter

1шт.

7

20090050

HOLDER

Spring Casting

2шт.

8

24143880

COMPRESSION SPRING

1шт.

9

87427182

U-BOLT

BOLT "U" 3/4" x 4" x 7.5", For 4" x 6" Tube

1шт.

10

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

1шт.

11

438-32840

PIN,11.1mm OD x 63.5mm L

Roll

2шт.

12

495-81028

WASHER,21/32" x 1 1/2" x .240"

5/8" x 1-1/4"

2шт.

13

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", 14 Gauge, Machine

2шт.

14

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", 10 Gauge, Machine

1шт.

15

86992217

NUT

3/4"

2шт.

16

425-1010

NUT,5/8"-11, G5

Hex.

2шт.

17

432-1632

COTTER PIN,1/4" x 2"

1шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

1шт.
