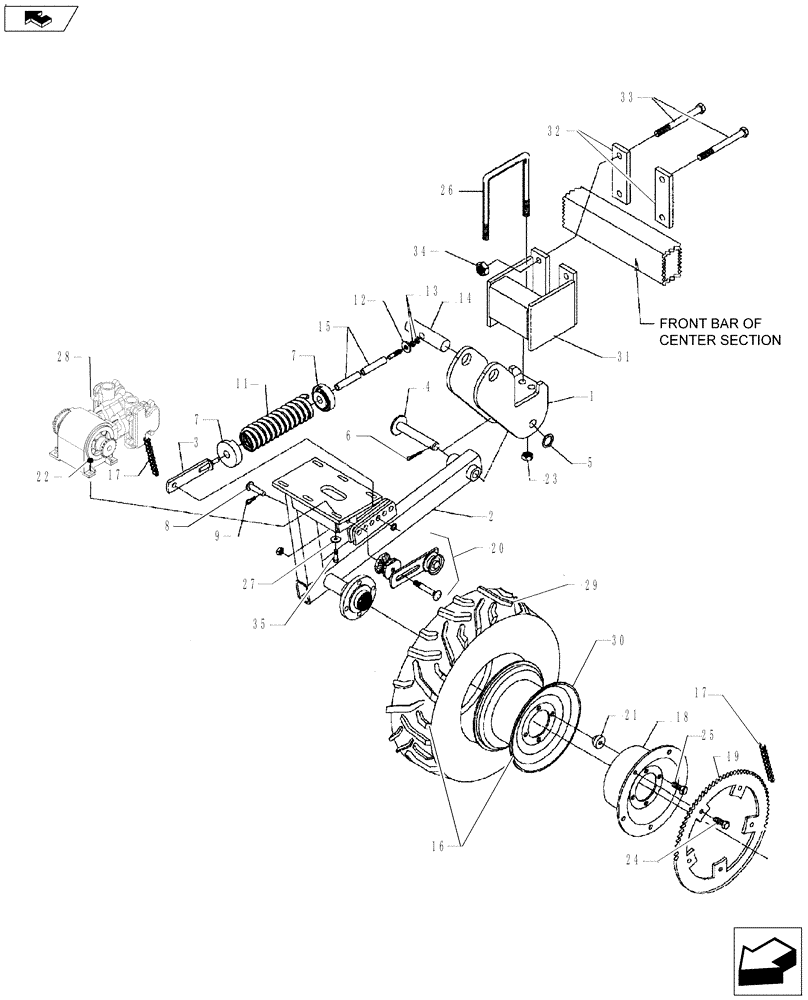

Запчасти Case IH NPX2800 (75.200.01[02]) - GROUND DRIVE 2010 AND AFTER (75) - SOIL PREPARATION

05302680

MOUNTING PARTS

Ground Drive Assy.

1шт.

1

05302690

MOUNTING PARTS

Pump

1шт.

2

05302630

MOUNTING PARTS

Spindle

1шт.

3

05302660

SPRING

Linkage

1шт.

4

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81, EL

1шт.

5

495-21106

WASHER,1"

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

7

20090100

HOLDER

Spring

2шт.

8

14810090

X

5/8 x 1-5/8, EL

1шт.

9

14720411

COTTER PIN

PIN, COTTER 1/8, Hair

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

11

24143901

COMPRESSION SPRING

1шт.

12

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

Special

1шт.

13

425-168

NUT,1/2"-13, G5, Hvy

2шт.

14

05302670

TRUNNION

1шт.

15

06210370

BUSHING

2шт.

16

87461161

WHEEL ASSY.

7.0 x 14, 4 Ply, Tire & Wheel

1шт.

17

84353903

CHAIN

50, Roller, Stainless Steel

1шт.

18

34120010

ADAPTER

Sprocket Hub

1шт.

19

34120011

SPROCKET

Roller Chain 60T

1шт.

20

34120012

IDLER

Single Spool With Bracket

1шт.

21

34120013

SPACER

4шт.

22

86992213

NUT

4шт.

23

86992217

NUT

4шт.

24

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

5шт.

25

86622971

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

Wheel

4шт.

26

87427185

U-BOLT

3/4 x 4 x 5-1/2

2шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

28

84315374

PUMP

NGP9055, John Blue, Components Are NSS

1шт.

29

NSS

NOT SOLD SEPARAT

7.00 x 14, 4 Ply, Traction Tire

1шт.

30

87461168

WHEEL ASSY.

14 x 5, KB

1шт.

31

09576750

BAR

Extension

1шт.

32

09576757

STRAP

2шт.

33

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

4шт.

34

86992218

LOCK NUT

4шт.

35

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.
