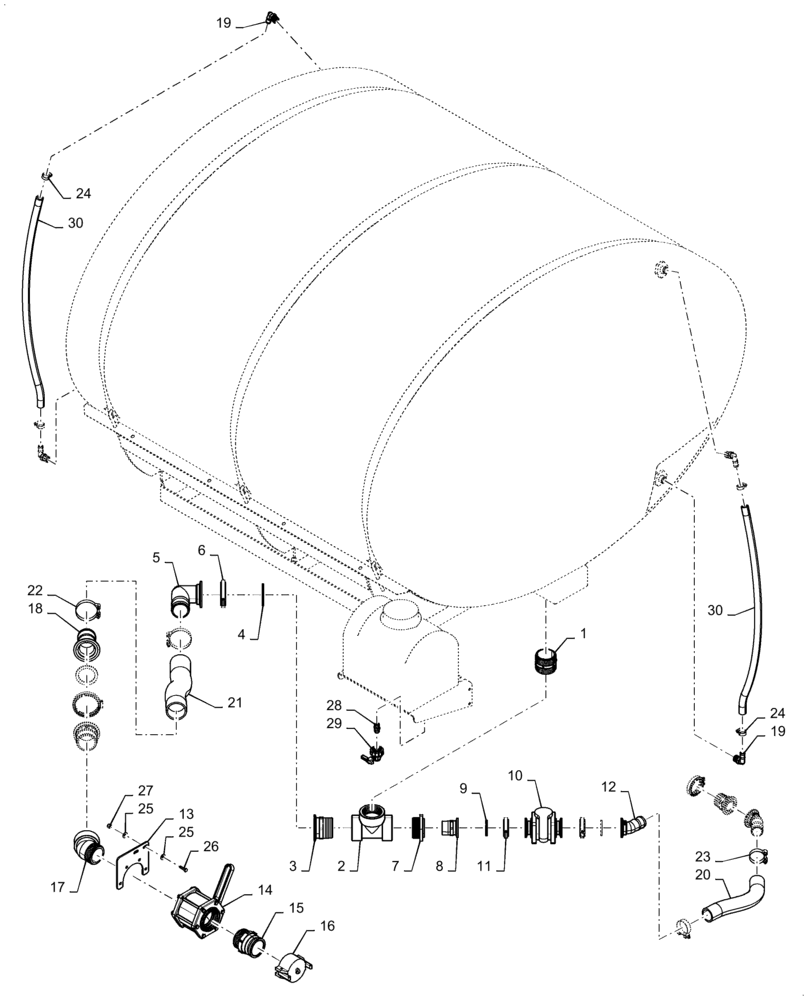

Запчасти Case IH NPX2800 (63.100.AA[15]) - TANK INLET PIPE HYDRAULIC PUMP (63) - CHEMICAL APPLICATORS

1

BN73788

NIPPLE, LUBE

3.0

1шт.

2

84380657

TEE,3" Poly Tee

3" Banjo

1шт.

3

BN321078

ADAPTER

3"

2шт.

4

BN321073

GASKET,3" Flange, EPDM

3"

2шт.

5

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

90 Deg

1шт.

6

BN321074

CLAMP,101.6mm

2шт.

7

84380658

BUSHING,3" MPT x 2" FPT Reducing Bushing

3"

1шт.

8

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

Fitting

2шт.

9

BN313772

GASKET,2" Full Port, EPDM

2.2"

3шт.

10

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

2"

1шт.

11

BN313773

CLAMP,2" Full Port

2" Full Port

3шт.

12

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

2.2

2шт.

13

47698157

PLATE

3"

1шт.

14

84380156

VALVE,3" Full Port Valve

3" Full Port

1шт.

15

84380173

ADAPTER,3" Male Adapter-3" Male Thread

3"

1шт.

16

BN2393384

CAP

3"

1шт.

17

84380164

ELBOW,3" 45 Degree Poly Street Elbow

3"

1шт.

18

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3.0"

1шт.

19

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

4шт.

20

47699774

HOSE

2" ID

1шт.

21

47700230

HOSE

3"

1шт.

22

87484999

CLAMP,3.37" - 3.68"

2шт.

23

47744741

CLAMP

T-Bolt

2шт.

24

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

26

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

27

88902

NUT,3/8"-16

2шт.

28

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1шт.

29

34308003

VALVE,1/2" Single Union Poly Valve

1/2"

1шт.

30

25631206

TUBE

3/4" Sight Tube

2шт.
