Запчасти Case IH NPX2800 (55.100.AA[01]) - ACCUCONTROL ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

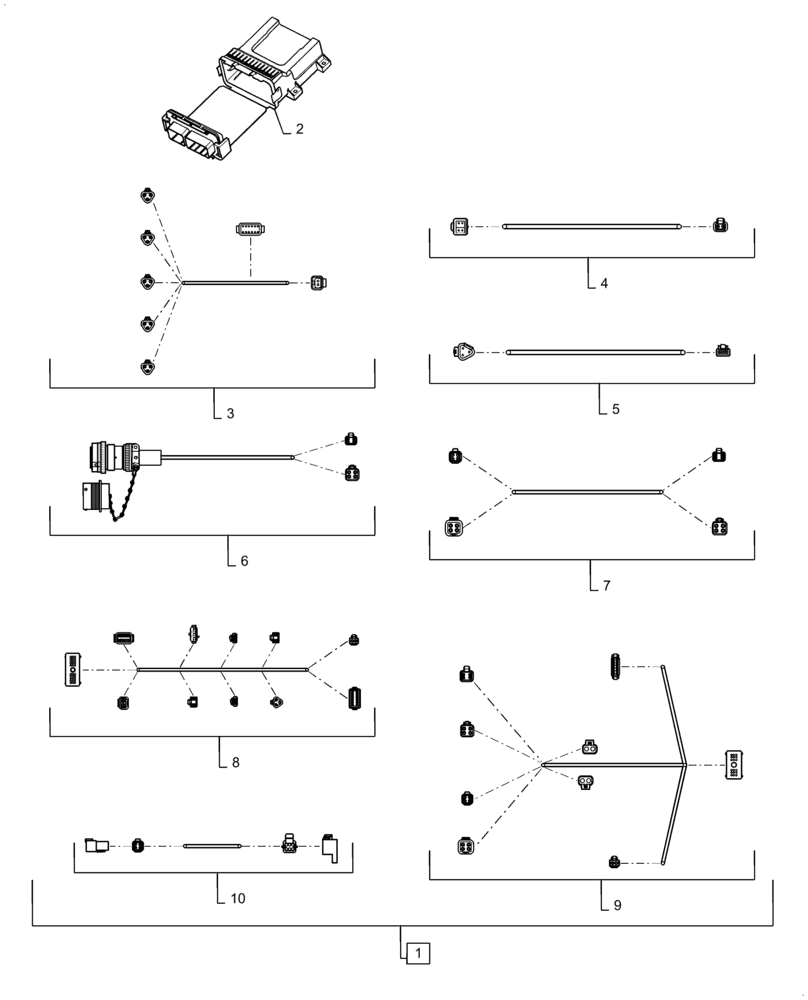

Схема запчастей Case IH NPX2800 - (55.100.AA[01]) - ACCUCONTROL ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS
10
3
5
8
9
7
2
4
1
6

Артикул

Название

Примечание

Количество

1

47695103

KIT

Accucontrol Electrical System Incl 2-10, Start Serial: 87410525W

1шт.

2

47707813

CONTROLLER

Accucontrol , Start Serial: 87410525W

1шт.

3

47707817

WIRE HARNESS

Section Control , Start Serial: 87410525W

1шт.

4

47707819

WIRE HARNESS

Flow Control , Start Serial: 87410525W

1шт.

5

47707821

WIRE HARNESS

Flow Metering , Start Serial: 87410525W

1шт.

6

47707822

WIRE HARNESS

Hitch Extention Power , Start Serial: 87410525W

1шт.

7

47707823

WIRE HARNESS

CAN Power , Start Serial: 87410525W

1шт.

8

47707825

WIRE HARNESS

Field IQ and Rate , Start Serial: 87410525W

1шт.

9

47707826

WIRE HARNESS

Rate And Section , Start Serial: 87410525W

1шт.

10

47707827

WIRE HARNESS

Terminator , Start Serial: 87410525W

1шт.

Выбрано товаров: 10
