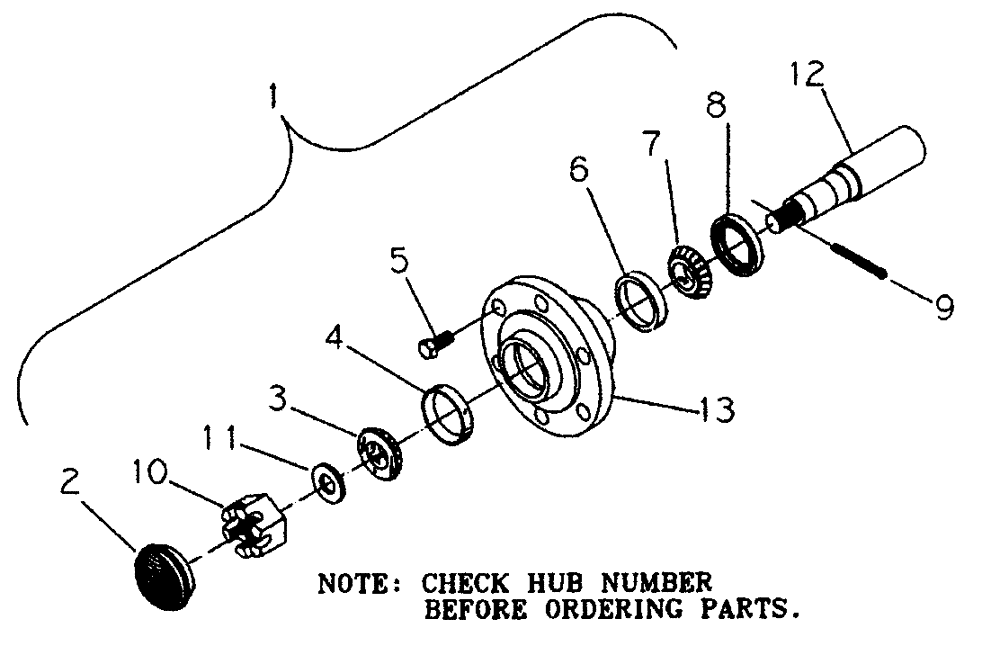

Запчасти Case IH NPX2800 (44.100.03) - 710 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

28071001

HUB ASSY.

710, With Spindle

1шт.

1

28171000

HUB ASSY.

Q710, 6 Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore, Timken LM67048

1шт.

4

651817R1

BEARING CUP

2.33" OD, Timken LM67010

1шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" x 1-15/32" NF. Lug

6шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56" OD, Timken LM48510

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8" Bore, Timken LM48548

1шт.

8

614410R91

SEAL

1.63" x 2.63" CR16322

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

11

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

12

28371001

SPINDLE

1шт.

13

28270900

HUB ASSY.

1шт.
