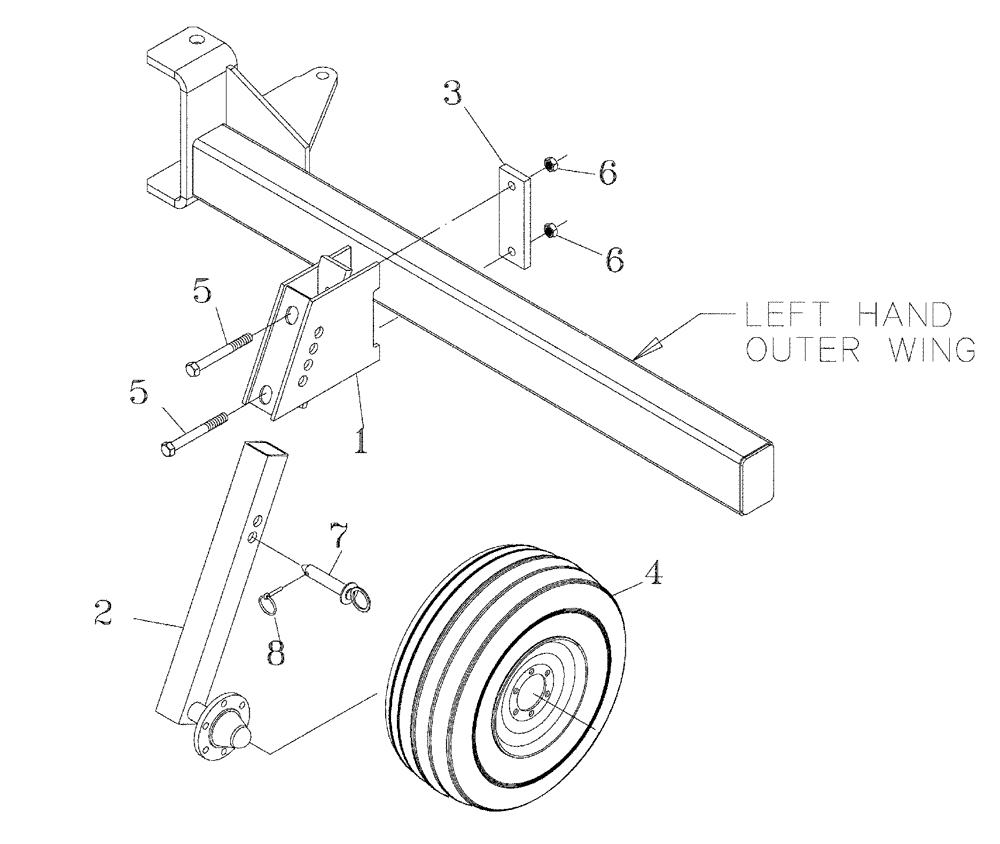

Запчасти Case IH NPX2800 (44.100.02) - GAUGE WHEEL ASSEMBLY (44) - WHEELS

1

04661320

GAUGE

Mounting, Wheel

1шт.

2

02380400

BAR ASSY.

Gauge Wheel With 710 Hub

1шт.

3

09576610

LINKAGE

Flat

1шт.

4

10008260

LAND WHEEL

20.5 x 8-10, Tire And Wheel

1шт.

5

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

6

280375

NUT,3/4"-10, GC

2шт.

7

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

8

A30338

PIN

1/4" x 1-3/4" Klik

1шт.
