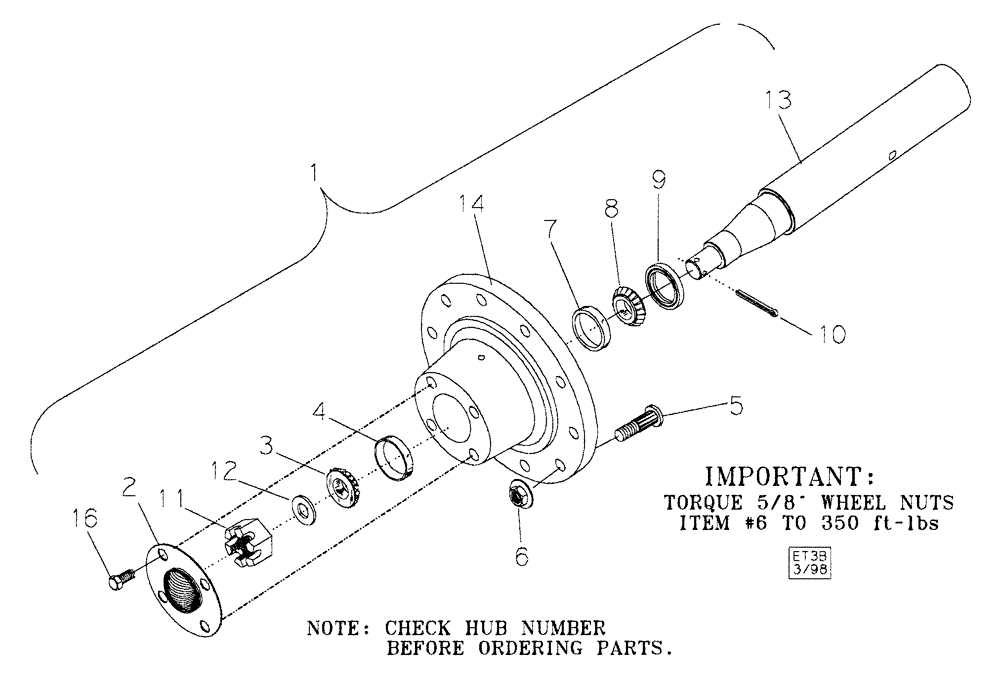

Запчасти Case IH NPX2800 (44.100.01) - Q871 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28087102

HUB ASSY.

Q871, 10 Bolt, Hub & Spindle

1шт.

2

28487101

HUB CAP

1шт.

3

21871750

ROLLER BEARING,1.75" ID

1.75" Bore, Timken 460

1шт.

4

21884250

BEARING CUP,107.95mm OD

4.25" OD, Timken 453A

1шт.

5

16412418

STUD

Wheel, 3/4" x 2-9/16" NF

10шт.

6

14091203

NUT

Wheel, 3/4" NF

10шт.

7

21884430

CUP

4.435" OD, Timken 39520

1шт.

8

21872505

ROLLER BEARING,63.5 mm ID

2.250" Bore, Timken 39585

1шт.

9

21933000

SEAL

3.00" CR30087

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

11

25-1320

SLOTTED NUT,1 1/4"-12, G5

1шт.

12

17952632

WASHER

3.25" Heavy

1шт.

13

28387101

SPINDLE

Q871, Drilled

1шт.

14

28787101

HUB ASSY.

Q871, With Cups

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.
