Запчасти Case IH NPX2800 (39.100.AA[01]) - TANK AND PLUMING 1300 GALLON (39) - FRAMES AND BALLASTING

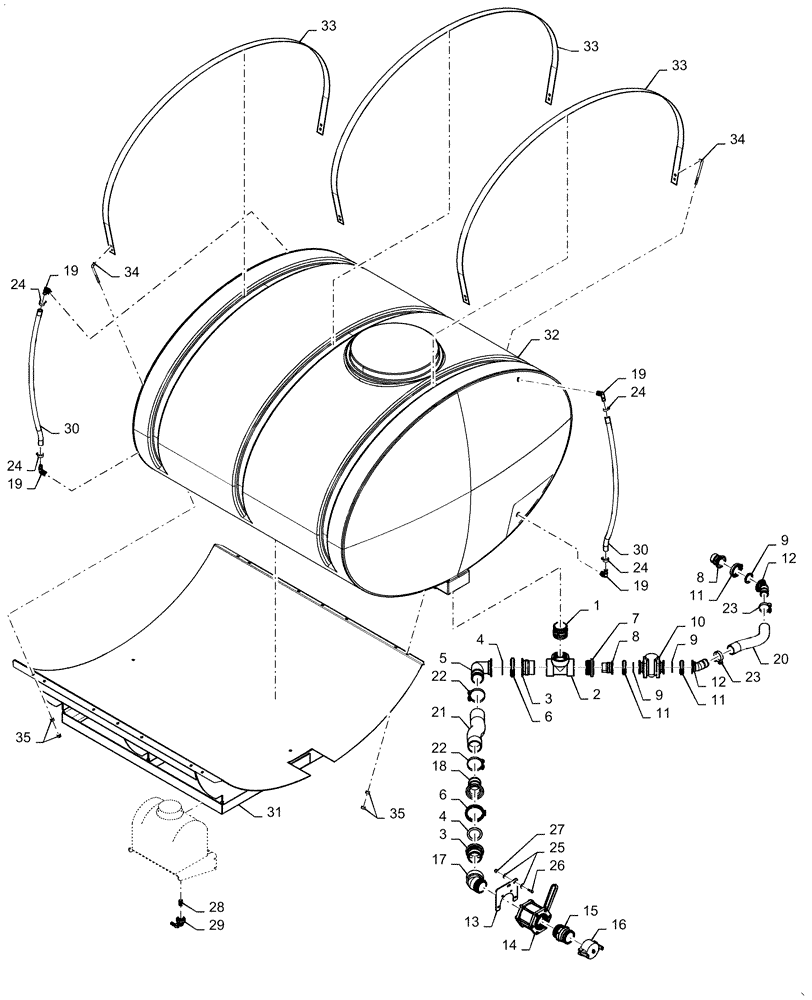

Схема запчастей Case IH NPX2800 - (39.100.AA[01]) - TANK AND PLUMING 1300 GALLON (39) - FRAMES AND BALLASTING
11
11
19
15
25
16
1
19
29
30
5
23
4
10
21
13
34
12
24
24
19
35
9
19
32
6
26
27
6
14
4
3
2
33
22
9
8
3
8
33
9
12
18
24
22
30
33
35
20
24
31
34
23
11
7
28
17

Артикул

Название

Примечание

Количество

1

BN73788

NIPPLE, LUBE

3.0"

1шт.

2

84380657

TEE,3" Poly Tee

Banjo 3"

1шт.

3

BN321078

ADAPTER

3.0"

2шт.

4

BN321073

GASKET,3" Flange, EPDM

3.0"

2шт.

5

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

90 Deg

1шт.

6

BN321074

CLAMP,101.6mm

2шт.

7

84380658

BUSHING,3" MPT x 2" FPT Reducing Bushing

Banjo

1шт.

8

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2.2 x 2.0

2шт.

9

BN313772

GASKET,2" Full Port, EPDM

2.2"

3шт.

10

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

2"

1шт.

11

BN313773

CLAMP,2" Full Port

2" Full Port

3шт.

12

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45 deg

2шт.

13

47698157

PLATE

3"

1шт.

14

84380156

VALVE,3" Full Port Valve

Banjo

1шт.

15

84380173

ADAPTER,3" Male Adapter-3" Male Thread

3" Poly Cap Fitting

1шт.

16

BN2393384

CAP

3.0"

1шт.

17

84380164

ELBOW,3" 45 Degree Poly Street Elbow

3"

1шт.

18

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3.0"

1шт.

19

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

4шт.

20

47699774

HOSE

2"

1шт.

21

47700230

HOSE

3"

1шт.

22

87484999

CLAMP,3.37" - 3.68"

2шт.

23

47744741

CLAMP

T-Bolt

2шт.

24

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

26

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

27

88902

NUT,3/8"-16

2шт.

28

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1шт.

29

34308003

VALVE,1/2" Single Union Poly Valve

1/2"

1шт.

30

25631206

TUBE

Sight 3/4"

2шт.

31

87338678

FRAME ASSY

Tank Mount

1шт.

32

47689121

TANK

1300 Gallon

1шт.

33

05302888

STRAP

1300 Gallon Tank

3шт.

34

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

6шт.

35

280431

NUT,1/2"-13, G5

12шт.

Выбрано товаров: 35
