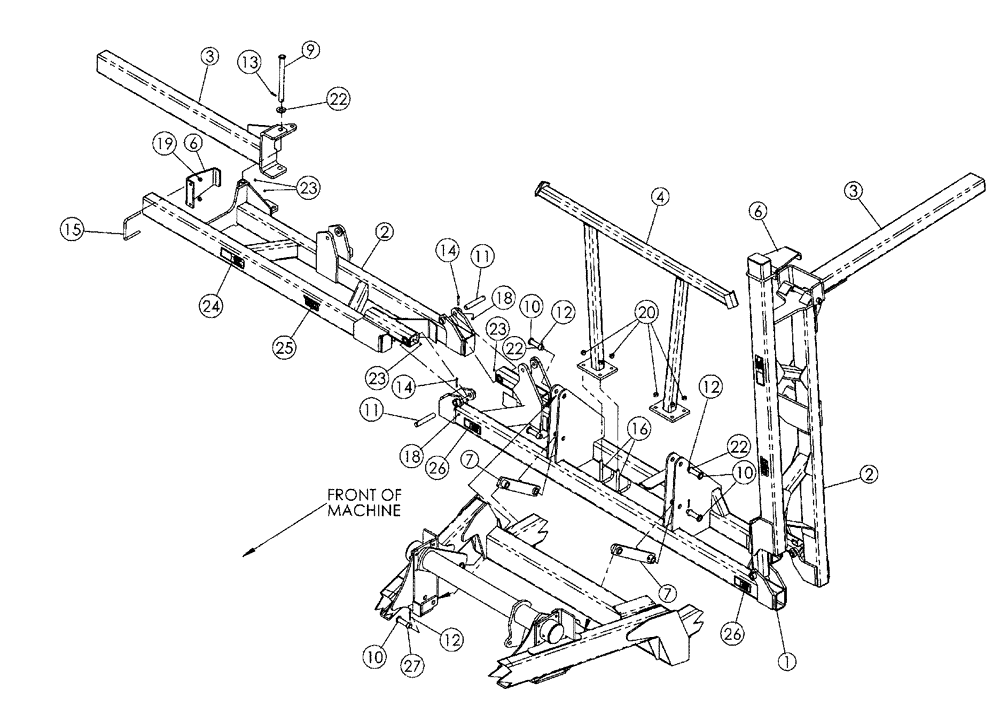

Запчасти Case IH NPX2800 (39.100.02) - COULTER BAR (39) - FRAMES AND BALLASTING

1

87337913

FRAME ASSY

Coulter, Center Section

1шт.

2

87337918

BAR

Couler, Mid Section, RH

1шт.

2

87337907

FRAME ASSY

Coulter, Mid Section, LH

1шт.

3

87337955

FRAME ASSY

Coulter, Outer Wing, Rh, 15 Coulter - 66-3/4 Long

1шт.

3

87339366

FRAME ASSY

Coulter, Outer Wing, Lh, 15 Coulters - 66-3/4 Long

1шт.

3

87339359

FRAME ASSY

Coulter, Outer Wing, Rh, 13 Coulters - 34-1/4 Long

1шт.

3

87339362

FRAME ASSY

Coulter, Outer Wing, Lh, 13 Coulters - 34-13/ Long

1шт.

4

87337952

FRAME ASSY

Toolbar

1шт.

6

05302899

STOP

Wing, 13 & 15 Coulters

2шт.

7

05302850

LINKAGE

Parallel

2шт.

9

14820107

CLEVIS PIN

1-1/4" x 14-1/4" 13 & 15 Coutlers

1шт.

10

14820355

PIN

1-1/4" x 4-3/8"

6шт.

11

14892077

SPECIAL PIN

1-1/4" x 7-1/2"

4шт.

12

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

8шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

15

87427168

U-BOLT

5/8" x 6" x 5-1/2" 13 & 15 Coulters

2шт.

16

87427182

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2"

4шт.

18

86992213

NUT

3/8"

4шт.

19

85700693

NUT,5/8" - 11, Gr C

13 & 15 Coulters

4шт.

20

280375

NUT,3/4"-10, GC

8шт.

22

17421021

WASHER

1-1/4" x 1/4" 13 & 15 Coulters

6шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

8шт.

24

18534333

DANGER DECAL

2шт.

25

18534261

DECAL

DMI

2шт.

26

18534227

DANGER DECAL

2шт.

27

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" 14 Gauge, Machine

2шт.
