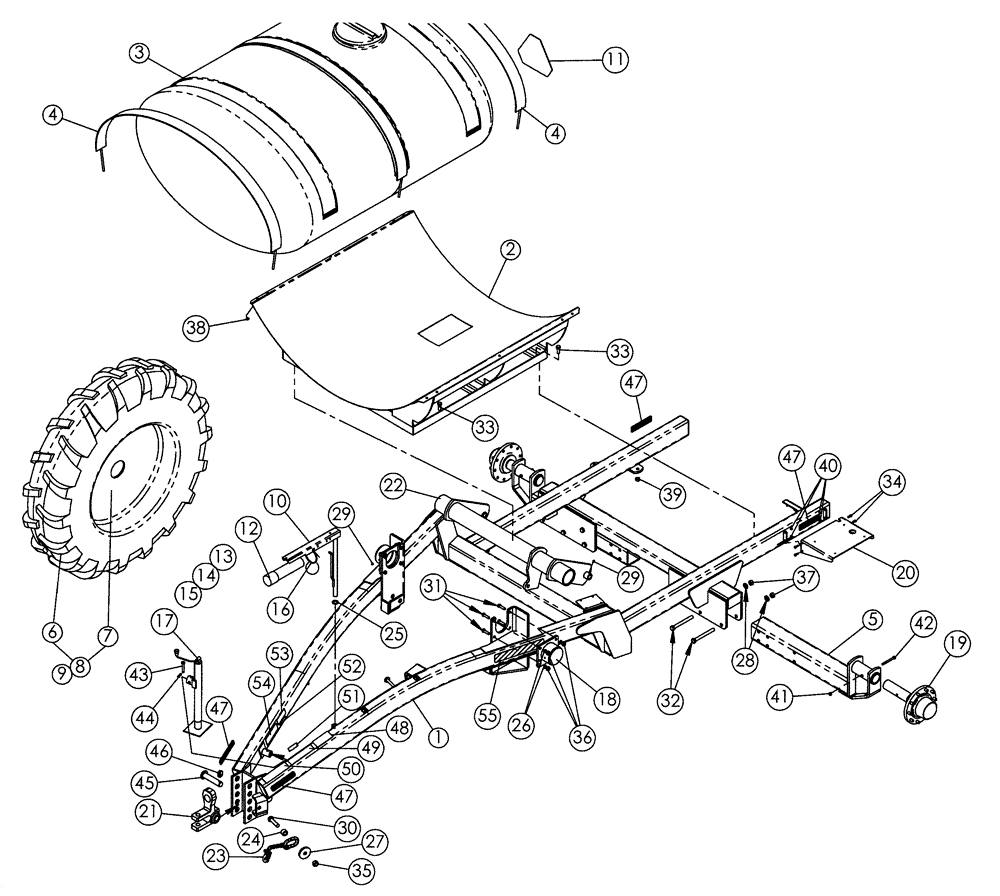

Запчасти Case IH NPX2800 (39.100.01) - 2800-16 MAIN FRAME (39) - FRAMES AND BALLASTING

1

87337209

FRAME ASSY

1шт.

2

87338678

FRAME ASSY

Tank, 1300 Gallon

1шт.

3

87461178

TANK

1300 Gallon

1шт.

4

05302888

STRAP

Tank

4шт.

5

05302840

MOUNTING PARTS

Adjustable Wheel

2шт.

6

NSS

NOT SOLD SEPARAT

420/80 R46,3*, Tubeless

2шт.

7

87461171

WHEEL ASSY.

46" x 12" On 11-1/4" Diameter

2шт.

8

87461164

WHEEL ASSY.

46 x 12, Silver, RH

1шт.

9

87461165

WHEEL ASSY.

48 x 12, Silver, LH

1шт.

10

05302150

STAND

Hose, Swinging

1шт.

11

311858A1

DECAL

SMV

1шт.

12

30026030

TUBE

Manual

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

17

87416370

JACK,40.1 mm L

5K/7K Square Tube

1шт.

18

87342158

MOUNTING PARTS

Bearing

2шт.

19

28087101

STUB AXLE/STEERING S

Q871, Hub & Spindle

2шт.

20

05302845

SUPPORT

Wash Tank, Bolt On

1шт.

21

20092311

CLEVIS

Combo

1шт.

22

87337953

TUBE,141.22 mm OD

Lift

1шт.

23

87393082

CHAIN

20,200 Lbf, Safety

1шт.

24

04681211

BUSHING

1шт.

25

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" 10 Gauge, Machine

1шт.

26

492-11062

BEARING WASHER,5/8"

1шт.

28

495-11094

WASHER,7/8", SAE

Flat

8шт.

29

87019498

FITTING

1/8" Pipe Spcl Taper Drive

4шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

30

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

31

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

32

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

8шт.

33

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

35

86992219

LOCK NUT

1"

1шт.

36

231-42410

LOCK NUT,5/8"-11, GB

8шт.

37

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8"

8шт.

38

425-108

NUT,1/2" - 13, Gr 5

16шт.

39

280375

NUT,3/4"-10, GC

4шт.

40

86992213

NUT

3/8"

4шт.

41

87333862

NUT

2шт.

42

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

43

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" Clevis

1шт.

44

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

1шт.

45

14820520

HITCH PIN

1-5/8" OD, Hair

1шт.

46

D33805

PIN

7/16" x 2" Klik

1шт.

47

311864A1

REFLECTOR

Amber

4шт.

48

18534282

WARNING DECAL

1шт.

49

18534371

WARNING SIGN

Power Lines

1шт.

51

NSS

NOT SOLD SEPARAT

Serial Number

1шт.

52

18534174

DECAL

Other Patents Appied For

1шт.

53

18534107

DECAL

Patent

1шт.

54

18534228

DECAL

Caution - Pull Type

1шт.

55

18534272

DECAL

Nutri-Placr

2шт.

56

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

1/2" x 7"

8шт.

57

84271506

DECAL KIT

Liquid Fert/Speed, English

1шт.

57

84271509

DECAL KIT

Liquid Fert/Speed, French, Not Shown

1шт.

57

84271511

DECAL KIT

Liquid Fert/Speed, Russian, Not Shown

1шт.

58

87461173

TANK

8 Gallon

1шт.

59

495-21031

WASHER,1/4"

4шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

61

34308003

VALVE,1/2" Single Union Poly Valve

1/2" NPT, Ball, Poly

1шт.

62

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1/2" NPT, Short Poly

1шт.
