(35.100.03) - 2-1/2 X 16 WING FOLD CYLINDER

Запчасти Case IH NPX2800 (35.100.03) - 2-1/2 X 16 WING FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

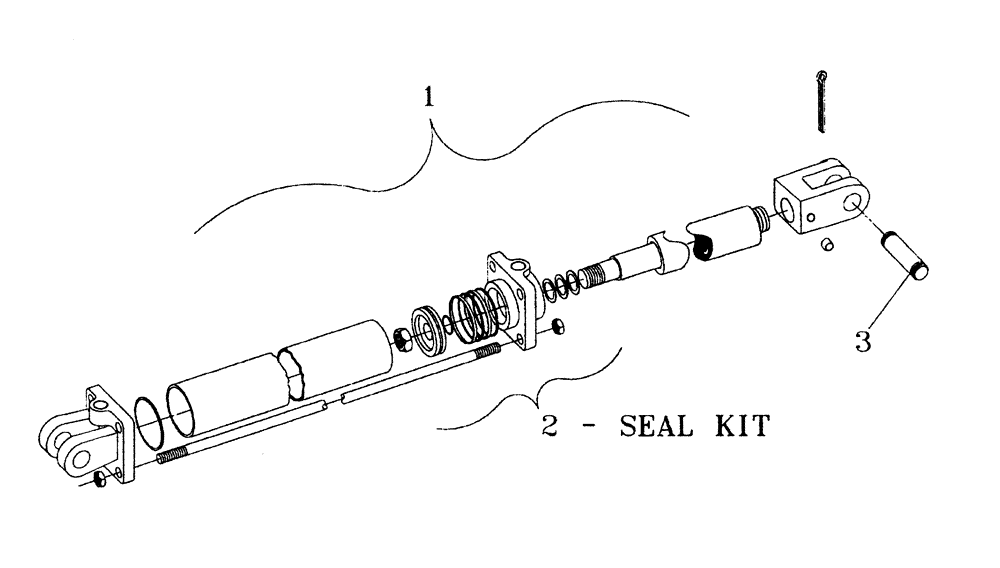

Схема запчастей Case IH NPX2800 - (35.100.03) - 2-1/2 X 16 WING FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" x 16"

1шт.

2

25832510

SEAL KIT

1шт.

3

25890100

KIT

Cylinder Pin, 1 inch

1шт.

Выбрано товаров: 3
