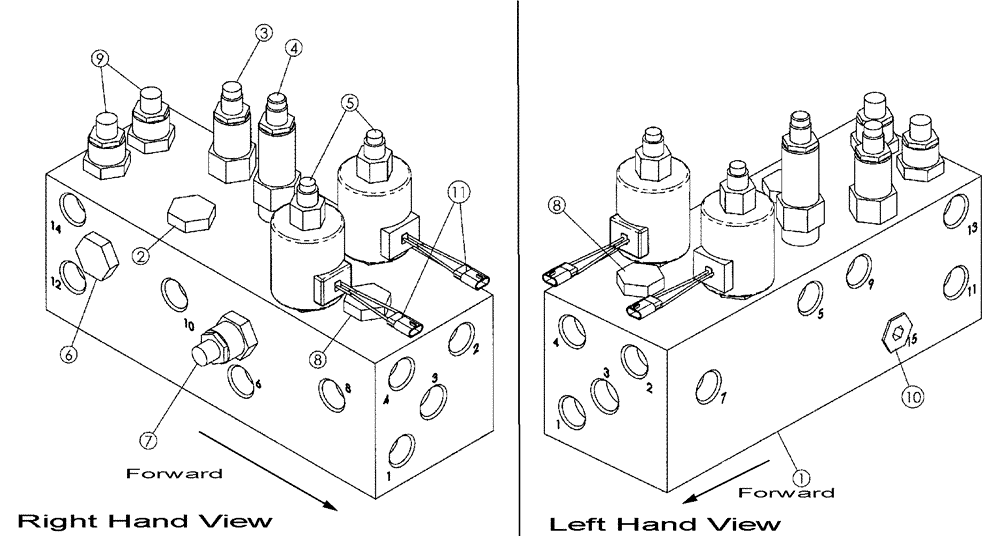

Запчасти Case IH NPX2800 (35.100.02) - HYDRAULIC MANIFOLD (35) - HYDRAULIC SYSTEMS

05302848

CONTROL VALVE

Includes 1- 11

1шт.

1

NSS

NOT SOLD SEPARAT

Valve Body

1шт.

2

25410004

PILOT VALVE

PC10-30-0-N, 4:1

1шт.

3

25410006

VALVE, PRESSURE RELI

EF Reducing-Relieving, PR10-36A-0-N-15/10

1шт.

4

25410007

CONTROL VALVE

Sequence, PS10-34A-0-N-17/08

1шт.

5

25410008

SOLENOID VALVE

SV10-23W-0-N-00

2шт.

6

25410003

RESTRICTOR VALVE

FD10-41-0-N-33

1шт.

7

25410011

BALANCE VALVE

CBCA-LHN

1шт.

8

25410001

CHECK VALVE

CD10-20-0-N-05

1шт.

9

25410002

BALANCE VALVE

CBCH-LKN

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, 6108080

1шт.

11

25410009

SEALING LEAD

18 Gauge, 6359412

2шт.
