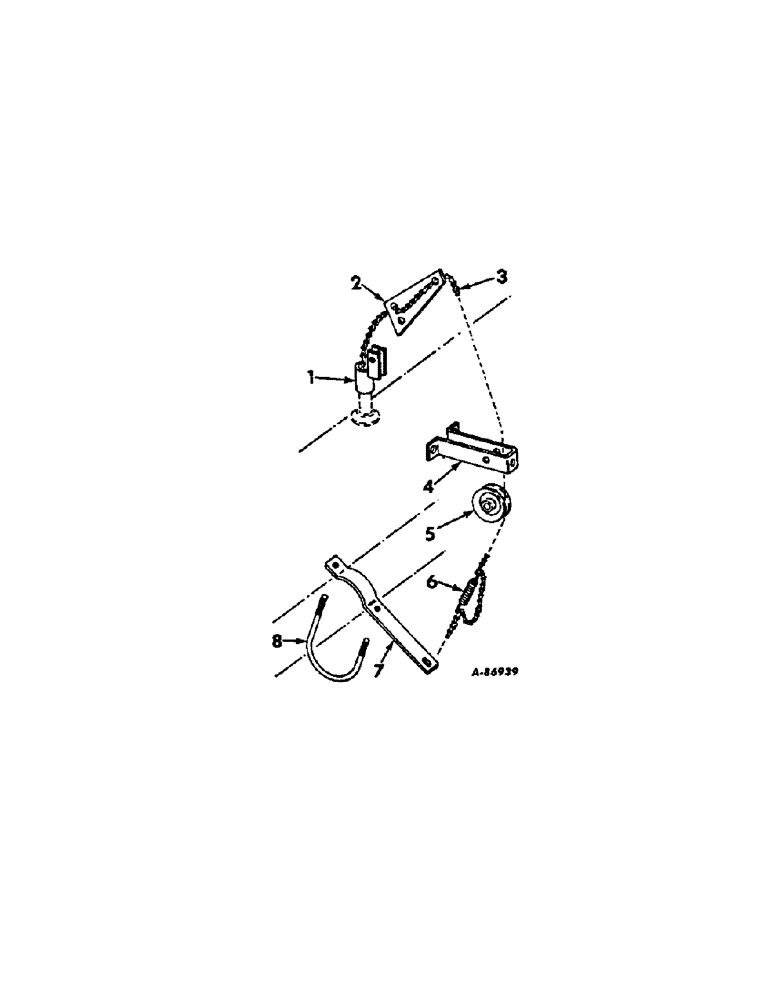

Запчасти Case IH LIQUID (B-08) - 56 AND 66 LIQUID FERTILIZERS, LIQUID FERTILIZER CONTROLS, TWO ROW

1

474694R91

PIVOT ASSY, pull chain

1шт.

2

474699R1

ARM, shut-off control

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

21815R1

PIN, 5/16 x 11/16 C-Z std-hd 5/16" x 11/16"

1шт.

3

478487R1

CHAIN, valve control 68 inches

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

4

484500R1

CASE, pulley

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

J250M

PULLEY, chain

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

6

943045R1

SPRING

control chain

1шт.

7

475210R3

BRACKET, shut-off valve link

1шт.

8

475211R

U-BOLT, shut-off valve link bracket

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16", G5

2шт.

120376

NUT,5/16"-18, G5

WASHER, 5/16 in. C-Z lock

2шт.
