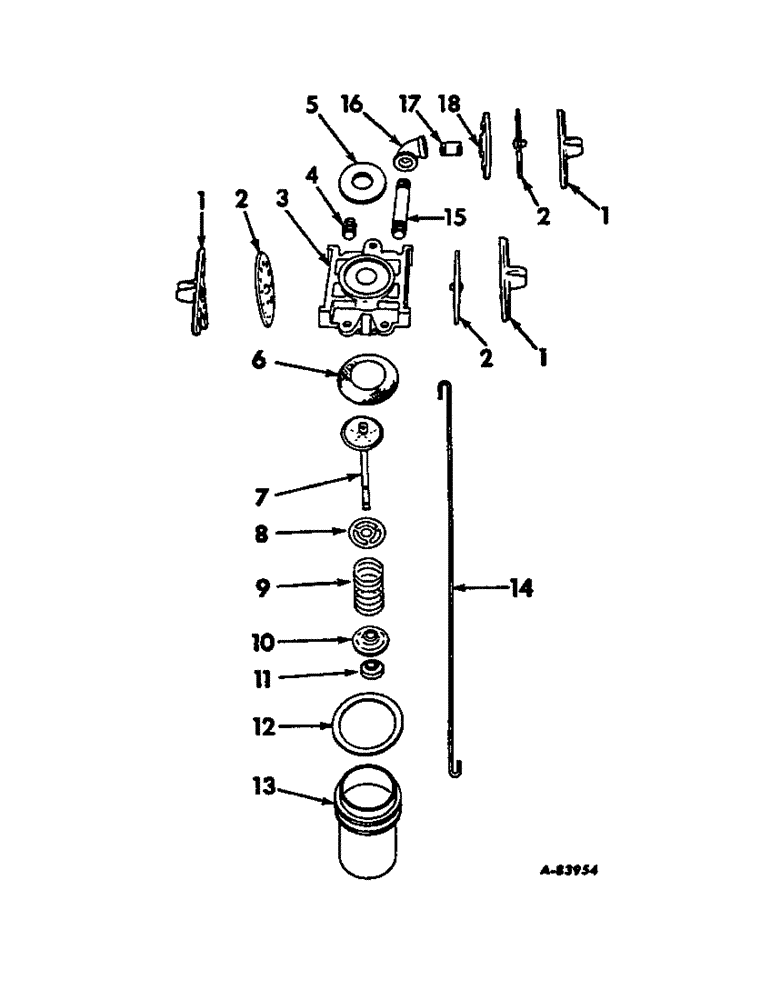

Запчасти Case IH LIQUID (B-80) - LIQUID FERTILIZERS, LIQUID FERTILIZER FLOW CONTROL VALVE

1

626230R1

HEAD, flow control, 4 for four-row, and 6 for six row

1шт.

18877R1

BOLT

1/4-20 x 1-1/4 C-Z sq-hd mach, 8 for four-row, and 12 for six-row

1шт.

129-409

WING NUT,1/4"-20

NUT, 1/4-20 C-Z wing, 8 for four-row, and 12 for six-row

1шт.

2

626233R1

DISK, metering valve, 4 for four-row, and 6 for six row

1шт.

3

474702R1

HOUSING, flow control valve, 2 for four-row and six row

1шт.

4

1017870R1

PLUG, pipe, 2 for six-row, and 4 for four row

1шт.

5

474703R2

WASHER, flow control valve, 2 for four-row and six row

1шт.

6

478492R1

SCREEN, bowl filter, 2 for four-row and six row

1шт.

7

474706R91

VALVE ASSY, flow control, 2 for four-row and six row, also order cup 474705R1 and pin 220257 if not so equipped

1шт.

8

474710R1

GUIDE, valve, 2 for four-row and six row

1шт.

9

474711R1

SPRING, flow control, 2 for four-row and six row

1шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 stainless steel cotter, 2 for four-row and six-row

1шт.

10

474705R1

CUP, spring retainer, 2 for four-row and six row

1шт.

11

474709R1

COLLAR, valve stem, 2 for four-row and six row

1шт.

12

625861R3

RUBBER WASHER

sediment bowl rubber, 2 for four-row and six row

1шт.

13

64178D

CONTAINER

JAR, half pint glass mason, 2 for four-row and six row

1шт.

14

626209R1

ROD, flow control valve, 2 for four-row and six row

1шт.

15

626339R1

NIPPLE, 3/8 x 3 pipe, 2 for six row

1шт.

16

119097

ELBOW,90º, 3/8" NPT

3/8 in. 90 deg pipe, 2 for six row

1шт.

17

626369R1

NIPPLE, 3/8 x 1 pipe, 2 for six row

1шт.

18

626335R1

ADAPTER, flow control, 2 for six row

1шт.
