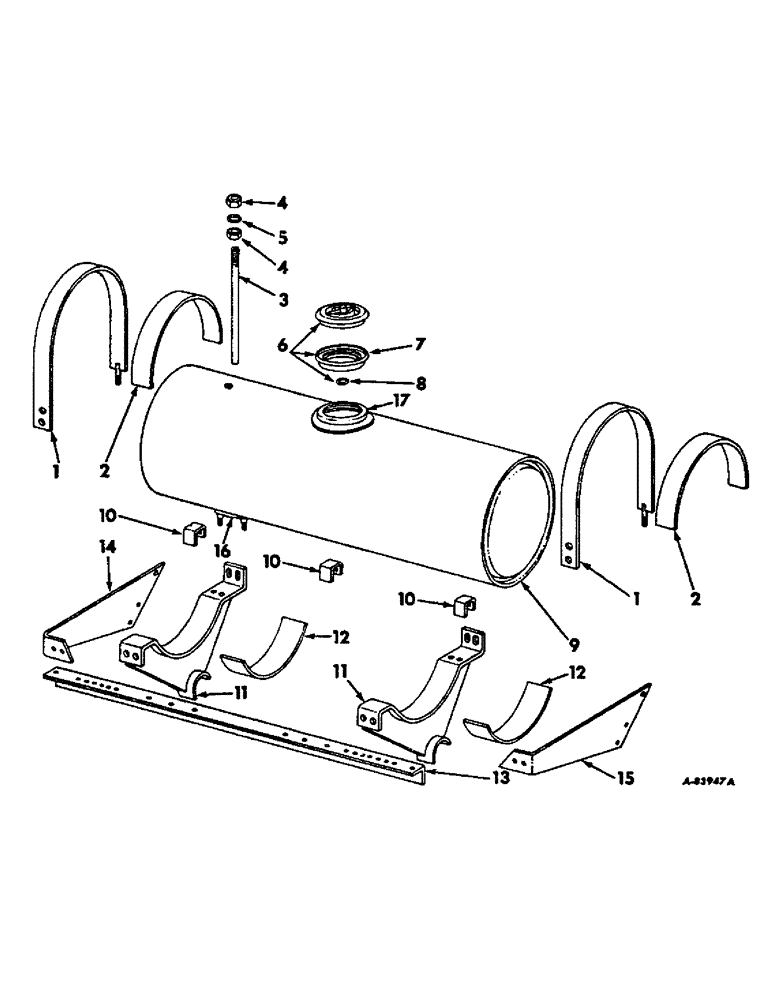

Запчасти Case IH LIQUID (B-78) - LIQUID FERTILIZERS, LIQUID FERTILIZER TANK AND SUPPORTS, 1965 AND SINCE

1

479257R92

STRAP ASSY, clamp

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

478846R1

PAD, strap clamp

2шт.

3

474674R1

PIPE, tank vent

1шт.

4

474675R1

NUT, tank bent pipe lock

2шт.

5

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

vent pipe

1шт.

6

474676R93

CAP

ASSY, filler

1шт.

7

474677R3

GASKET

filler cap

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

filler cap

1шт.

9

479265R91

TANK ASSY, 50 gal. round flat end includes ref. nos. 16 and 17

1шт.

10

477575R2

CHANNEL

marker chain guide, 6 for four-row and six row

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , 6 for four-row and six row Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , 6 for four-row and six row 1/2"

1шт.

102637

NUT,1/2"-13, G5

6 for four-row and six row 1/2"-13, G5

1шт.

11

478844R92

SUPPORT ASSY, tank

2шт.

19285R1

BOLT

1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

474687R1

PAD, tank

2шт.

13

479261R1

ANGLE, lift rod, for four-row planting

1шт.

13

476912R2

ANGLE, lift rod support LH, for six-row planting

1шт.

13

476913R2

ANGLE, lift rod support RH, for six-row planting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap

2шт.

14

476918R1

PLATE, lift angle LH, used with 476912R1

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

476919R1

PLATE, lift angle RH, used with 476913R1

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

484740R1

HOUSING, valve, note A

1шт.

When ordering ref. nos. 16 and 17 service kit, fiber glass repair 481803R91 is required.

1шт.

484699R1

BOLT, 5/16 x 1-3/4 stainless stl

3шт.

484700R1

NUT

5/16-18 stainless stl hex

3шт.

17

481802R1

NECK FILLER

NECK, tank filler, note A

1шт.

When ordering ref. nos. 16 and 17 service kit, fiber glass repair 481803R91 is required.

1шт.
