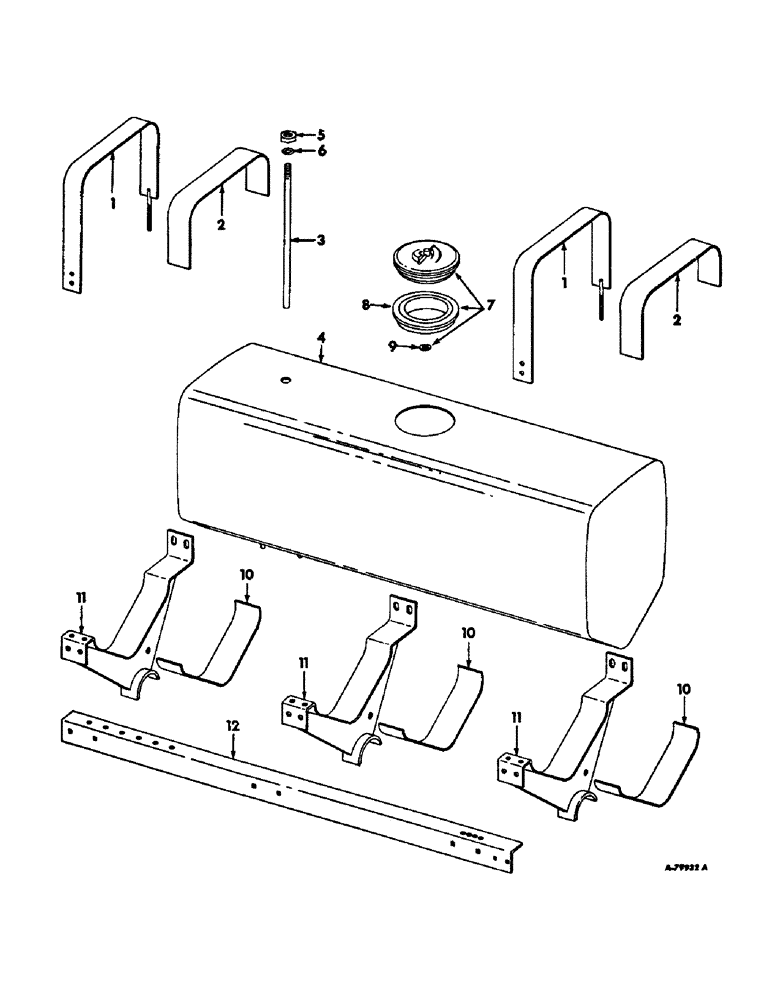

Запчасти Case IH LIQUID (B-76) - LIQUID FERTILIZERS, LIQUID FERTILIZER TANK AND SUPPORTS, 1963 TO 1965

1

474684R92

STRAP ASSEMBLY, clamp

2шт.

102635

NUT,3/8"-16, G5

4шт.

2

474686R1

PAD, strap

2шт.

3

474674R1

PIPE, tank vent

1шт.

4

474670R11

TANK ASSEMBLY, 50 gallon

1шт.

5

474675R1

NUT, vent pipe lock

2шт.

6

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

vent pipe, 11/16 x 7/8 x 3/32 in.

1шт.

7

474676R92

CAP ASSEMBLY, filler

1шт.

8

474677R3

GASKET

filler cap

1шт.

9

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

filler cap, 7/16 x 5/8 x 3/32 in.

1шт.

10

474687R1

PAD, tank

3шт.

11

474678R91

SUPPORT ASSEMBLY, tank

3шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

102637

NUT,1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

12

474683R2

ANGLE, lift rod RH

1шт.

12

474682R2

ANGLE, lift rod LH

1шт.
