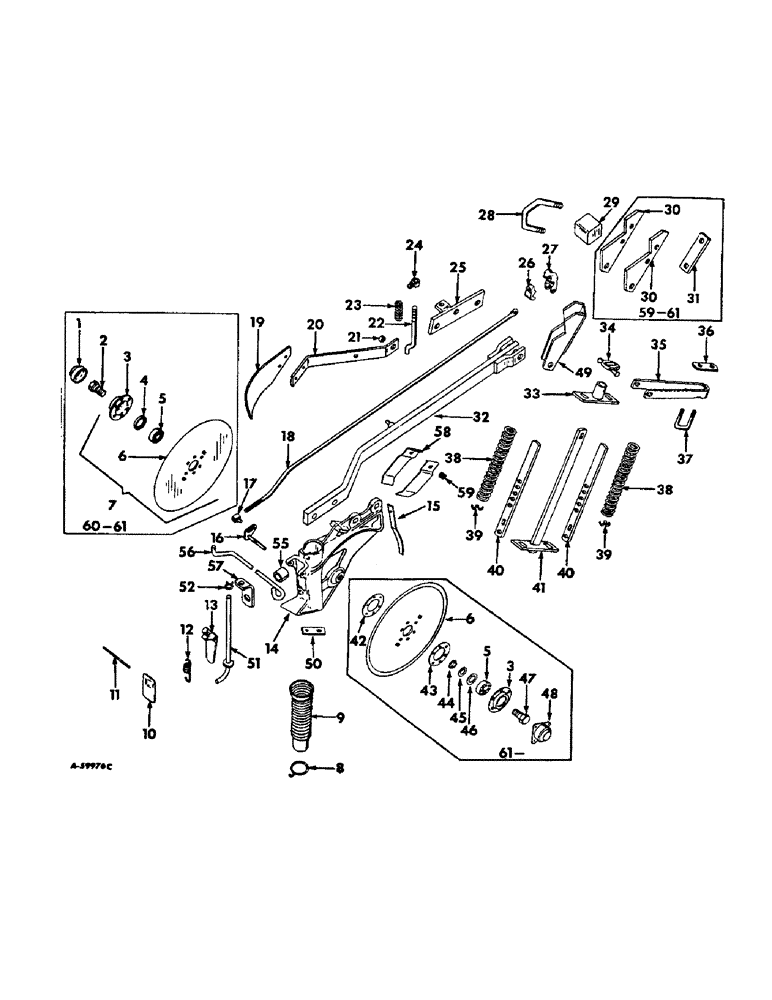

Запчасти Case IH LIQUID (B-66) - LIQUID FERTILIZERS, DOUBLE DISK FERTILIZER OPENER WITH COVERING BLADE

1

603012R1

DUST CAP

CAP, bearing housing dirt, units A, B and D, Serial Range: 1960-1961

1шт.

2

524673R1

BOLT,5/8" - 11 x 1 1/8", LH Thd

disk bearing, LH thread, units A, B and D, Serial Range: 1960-1961

1шт.

2

524674R1

BOLT,5/8" - 11 x 1 1/8", RH Thd

disk bearing, RH thread, units A, B and D, Serial Range: 1960-1961

1шт.

3

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing, 1960 to 1961

1шт.

426209

RIVET, 1/4 x 1/2 in. rd-hd

6шт.

3

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing, 1961 and since

1шт.

SCREW, 1/4 x 7/16 in. cap

6шт.

WASHER, 1/4 in. C-Z lock

3шт.

4

524675R1

WASHER

SPACER, opener disk, units A, B and D, Serial Range: 1960-1961

1шт.

5

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

1шт.

6

524676R1

DISK HARROW

DISK, opener

1шт.

7

462506R91

DISC

DISK ASSEMBLY, opener, Serial Range: 1960-1961

1шт.

8

626441R1

CLIP

rubber hose

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

526269R1

FASTENER

CLIP, rubber hose, unit C

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

(Not used in this application)

1шт.

10

625789R1

COVER

PLATE, cover, units A, B, C and D

1шт.

11

463320R1

STRAP, fastener cover, unit A, B, C and D

1шт.

12

(Not used in this application)

1шт.

13

(Not used in this application)

1шт.

14

462530R1

BOOT, double disk fertilizer, units A, B and D

1шт.

BOLT W/NUT, 1/2 x 2 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

14

464490R1

BOOT, double disk fertilizer, units C and D

1шт.

BOLT, 1/2 x 2-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

NUT, 1/2-13 hex

2шт.

15

462531R1

GUARD, stone, units A, B, and D

1шт.

BOLT W/NUT, 5/16 x 1 in. hex-hd mach

1шт.

WASHER, 5/16 in. lock

1шт.

15

464489R1

GUARD, stone, unit D

1шт.

BOLT, 5/16 x 3/4 in. hex-hd mach

1шт.

NUT, 5/16 in. sq

1шт.

WASHER, 5/16 in. lock

1шт.

16

(Not used in this application)

1шт.

17

(Not used in this application)

1шт.

18

(Not used in this application)

1шт.

19

621426R1

SUPPORT

BLADE, wide covering LH

1шт.

19

621427R1

BLADE

wide covering RH

1шт.

BOLT W/NUT, 5/16 x 1 in. hex-hd mach

2шт.

WASHER, 5/16 in. lock

2шт.

20

462550R1

ARM, covering blade, units A, B and D

1шт.

21

625347R1

BUSHING, units A, B and D

1шт.

22

464460R1

ROD

pressure, unit C

1шт.

22

527091R1

ROD, pressure, units A, B and D

1шт.

PIN, 1/8 x 3/4 in. cotter

2шт.

23

2833

SPRING

pressure, unit C

1шт.

23

127

SPRING, pressure, units A, B and D

1шт.

24

PO2593

COLLAR W/SET SCREW, unit C

1шт.

24

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, units A, B and D

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 in. sq-hd cup-pt set

1шт.

25

462546R91

PLATE ASSEMBLY, mounting LH

1шт.

25

462547R91

PLATE ASSEMBLY, mounting RH

1шт.

BOLT W/NUT, 3/8 x 1 in. hex-hd mach

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1-1/2 in. x 11 ga

1шт.

26

624367R1

CAP, valve rod arm

1шт.

27

462532R1

ARM, valve rod

1шт.

BOLT W/NUT, 3/8 x 2-1/4 in. crg

1шт.

PIN, 1/8 x 5/8 in. cotter

1шт.

Q1179

HEADED PIN,5/16" x 1 1/4"

PIN, 5/16 x 1-1/4 in. dld-std-hd

1шт.

WASHER, 3/8 in. lock

1шт.

28

625547R1

U-BOLT, drawbar bracket

1шт.

NUT, 5/8 in.

2шт.

WASHER, 5/8 in. lock

2шт.

29

462542R1

BLOCK, unit D

1шт.

30

462543R1

PLATE, clamp, units A, B and D

1шт.

BOLT W/NUT, 3/8 x 2 in. hex-hd mach

1шт.

WASHER, 3/8 in. lock

1шт.

31

462544R1

PLATE, bottom, units A, B and D

1шт.

32

464479R11

DRAWBAR, units C and D

1шт.

32

462534R11

DRAWBAR, units A, B and D

1шт.

BOLT, 1/2 x 3 in. mach, unit C

1шт.

BOLT, 1/2 x 3-1/4 in. hex-hd mach, unit D

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

PIN, 1/8 x 7/8 in. cotter

1шт.

WASHER, 13/32 x 3/4 in. x 16 ga

1шт.

33

462539R91

GUIDE ASSEMBLY

1шт.

33

NA2540

TRUNNION

lift arm

1шт.

35

626166R1

ARM, press and lift, units A and D

1шт.

35

625132R2

ARM, press and lift, unit C

1шт.

36

625117R2

PAD, pressure and lift arm

1шт.

37

463092R1

U-BOLT, pressure arm

1шт.

NUT, 7/16 in.

2шт.

WASHER, 7/16 in. lock

2шт.

38

602416R1

SPRING

compression

1шт.

39

F6366

LOCK

pressure spring

1шт.

40

462541R1

ROD, guide

1шт.

PIN, 3/16 x 1 in. cotter

1шт.

41

462537R11

PITMAN, lift, Serial Range: 1956-1961

1шт.

41

462537R1

PITMAN, lift, 1962 and since

1шт.

F15562

PIN

Pitman lift flat cotter

1шт.

42

464480R1

WASHER

WASHER, reinforcement, units C and D

1шт.

43

602992R1

GASKET

disk, units C and D

1шт.

44

602988R1

SPACER

seal retainer, units C and D

1шт.

45

464628R1

SEAL

unit C

1шт.

46

602994R1

FLANGE

unit C and D

1шт.

SCREW, 1/4 x 7/16 in. cap

3шт.

47

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk bearing, LH thread, unit C and D

1шт.

47

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk bearing, RH thread, units C and D

1шт.

48

464483R1

CYLINDER END CAP

CAP, bearing housing dirt, units C and D

1шт.

49

464477R91

CLAMP, bar, units C and D

1шт.

50

464753R1

SUPPORT, liquid fertilizer tube, unit C and D

1шт.

BOLT W/NUT, 3/8 x 1 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

51

464751R11

TUBE

liquid fertilizer, units C and D

1шт.

52

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP, tube, units C and D

1шт.

53

464450R11

ARM, covering blade, unit C

1шт.

54

464452R91

COVERER, bracket left, unit C

1шт.

54

464453R91

COVERER, bracket right, unit C

1шт.

PIN, 5/32 x 1-1/2 in. cotter

2шт.

55

464484R1

SPACER, units C and D

1шт.

56

464488R1

ROD, left stabilizer, units C and D

1шт.

56

464486R1

ROD, right stabilizer, units C and D

1шт.

57

464485R1

CLIP, units C and D

1шт.

BOLT W/NUT, 1/2 x 2 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga

1шт.

58

601291R1

SCRAPER

outside

1шт.

BOLT, 5/16 x 4-1/4 in. sq-nk crg

1шт.

NUT, 5/16 in.

1шт.

Q397

WASHER

11/32 x 3/4 in. x 16 ga

1шт.

59

NA62774

SPRING

outside scraper

1шт.
