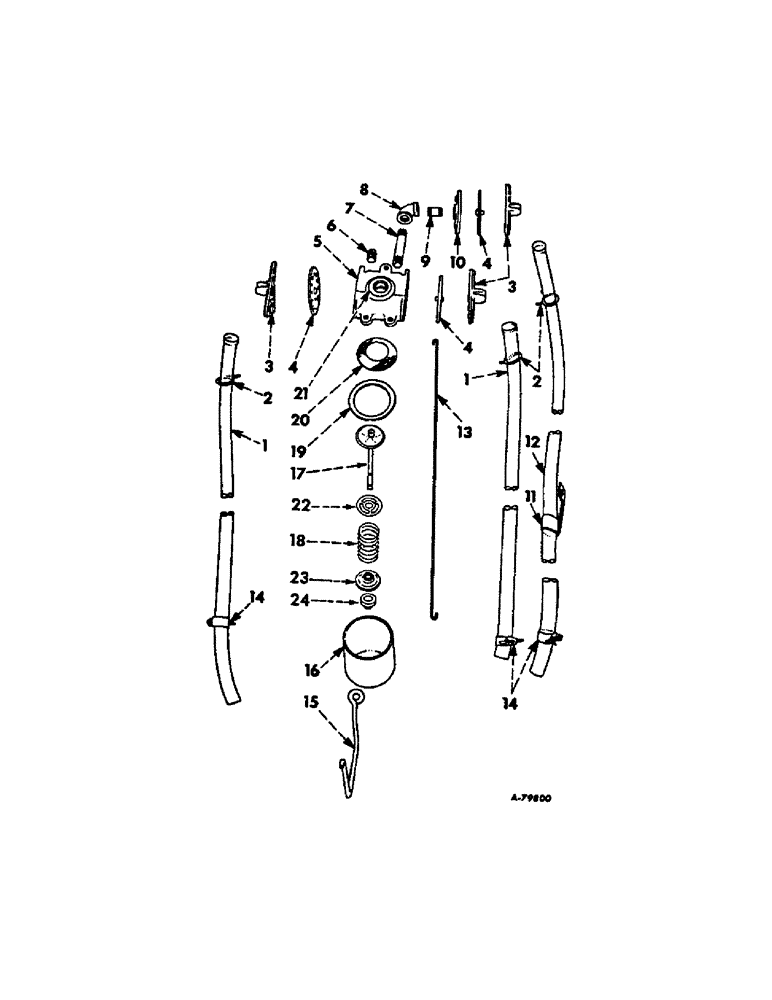

Запчасти Case IH LIQUID (B-62[A]) - LIQUID FERTILIZERS, FLOW CONTROL VALVE AND HOSE

1

626232R1

HOSE, valve outlet, 43 in. long, 1 for nos. 249 and 250 planters, 4 for nos. 449, 450, 649 and 650 planters

1шт.

1

626342R1

HOSE, valve outlet, 50 in. long, for nos. 249 and 250 planters

1шт.

2

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, upper hose, 1 in. dia, 2 for nos. 249 and 250 planters, 4 for nos. 449 and 450 planters, 6 for nos. 649 and 650 planters

1шт.

3

626230R1

HEAD, flow control, 2 for nos. 249 and 250 planters, 4 for nos. 449 and 450 planters, 6 for nos. 649 and 650 planters

1шт.

BOLT, 1/4 x 1-1/4 in. cd-pltd sq-hd, 4 for nos. 249 and 250, 8 for nos. 449 and 450, 12 for nos. 649 and 650

1шт.

129-409

WING NUT,1/4"-20

NUT, 1/4 in. cd-pltd wing, 4 for nos. 249 and 250, 8 for nos. 449 and 450, 12 for nos. 649 and 650

1шт.

4

626233R1

DISC, metering valve, 2 for nos. 249 and 250 planters, 4 for nos. 449 and 450 planters, 6 for nos. 649 and 650 planters

1шт.

5

626217R11

HOUSING W/WASHER, flow control valve, 2 for nos. 449 and 450 planters

1шт.

5

626334R11

HOUSING W/WASHER, flow control valve, for nos. 249 and 250 planters

1шт.

5

626366R11

HOUSING W/WASHER, flow control valve, 2 for nos. 649 and 650 planters

1шт.

BOLT W/NUT, 5/16 x 1 in. cd-pltd sq-hd, 2 for nos. 249 and 250, 4 for nos. 449, 450, 649 and 650

1шт.

626247R1

BOLT W/NUT, 5/16 x 1-3/4 in. cd-pltd sq-hd, 1 for nos. 249 and 250, 2 for nos. 449, 450, 649 and 650

1шт.

NUT, 5/16 in. cd-pltd, 3 for nos. 249 and 250, 6 for nos. 449, 450, 649 and 650

1шт.

WASHER, 5/16 in. cd-pltd lock, 3 for nos. 249 and 250, 6 for nos. 449, 450, 649 and 650

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing, 1 for nos. 249 and 250, 2 for nos. 449, 450, 649 and 650

1шт.

6

143934

PLUG

3/8 in. pipe, 2 for nos. 649 and 650 planters

1шт.

7

626339R1

NIPPLE, 3/8 x 3 in. pipe, 1 for nos. 249 and 250 planters, 2 for nos. 649 and 650 planters

1шт.

8

119097

ELBOW,90º, 3/8" NPT

3/8 in. 90 degree pipe, 2 for nos. 649 and 650 planters

1шт.

9

626369R1

NIPPLE, 3/8 x 1 in. pipe, 2 for nos. 649 and 650 planters

1шт.

10

626335R1

ADAPTER, flow control, 1 for nos. 249 and 250 planters, 2 for nos. 649 and 650 planters

1шт.

11

626368R1

CLAMP, hose support, 2 for nos. 649 and 650 planters

1шт.

12

626367R1

HOSE, valve outlet, 83 in. long, 2 for nos. 649 and 650 planters

1шт.

13

626209R1

ROD, flow control valve link, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

14

626238R1

CLAMP, lower hose, 2 for nos. 249 and 250 planters, 4 for nos. 449 and 450 planters, 6 for nos. 649 and 650 planters

1шт.

15

626218R1

BAIL, bowl, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

16

60877D

BOWL

water trap, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

17

474706R91

VALVE, flow control, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters, also order cup, 474705R1 and pin, 220257 if not so equipped

1шт.

18

626231R1

SPRING, flow control valve, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 ad 650 planters, Serial Range: 1958-1963

1шт.

18

474711R1

SPRING, control valve, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters, 1964 and since

1шт.

19

625861R3

RUBBER WASHER

rubber water trap bowl, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

20

626216R1

SCREEN, bowl filter, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

21

626215R2

WASHER, rubber flow control valve, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters

1шт.

22

474710R1

GUIDE, valve, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters, 1964 and since

1шт.

23

474705R1

CUP, spring retainer, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649, and 650 planters, 1964 and since

1шт.

24

474709

COLLAR, valve stem, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters, 1964 and since

1шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 in. stainless steel cotter, 1 for nos. 249 and 250 planters, 2 for nos. 449, 450, 649 and 650 planters, 1964 and since

1шт.
