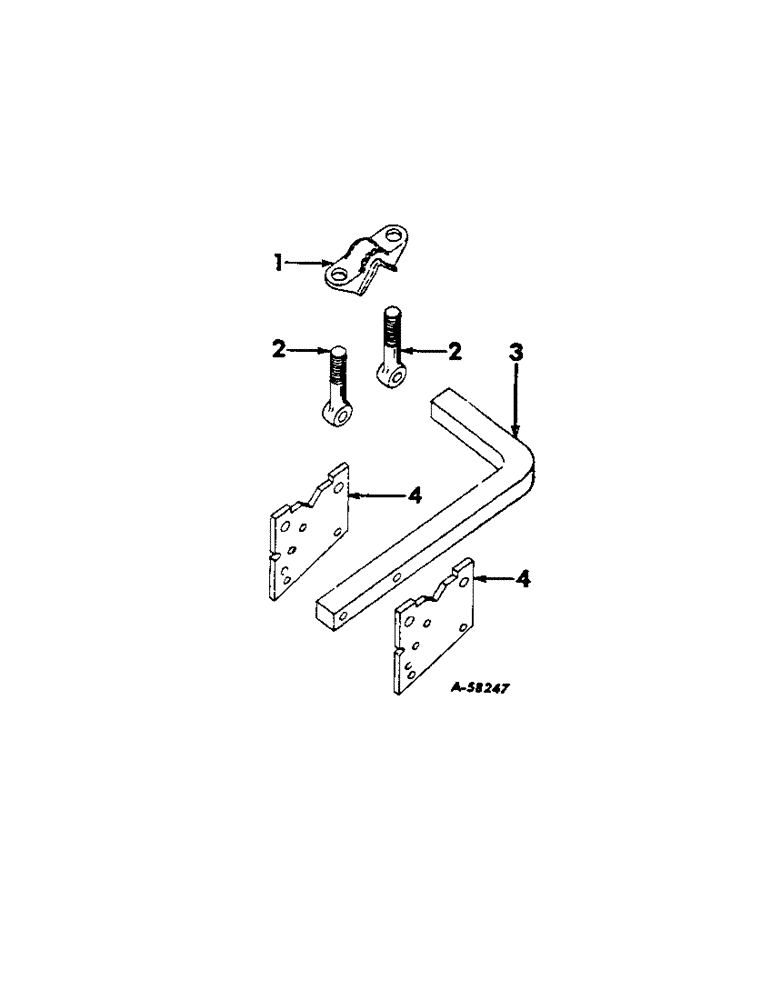

Запчасти Case IH LIQUID (B-59[A]) - LIQUID FERTILIZERS, APPLICATOR ATTACHING BAR UNIT

1

518859R1

CLAMP

CAP, attaching

1шт.

2

524917R1

EYEBOLT, attaching

2шт.

NUT, 7/8 in.

2шт.

PIN, 5/8 x 1-1/2 in. headed

2шт.

PIN, 3/16 x 1 in. self-opening cotter

2шт.

3

527078R1

BAR, applicataor attaching

1шт.

BOLT, 7/16 x 2-3/4 in. hex-hd mach

2шт.

NUT, 7/16 in.

2шт.

WASHER, 7/16 in. lock

2шт.

4

487001R1

PLATE, attaching bar

2шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

attaching bar support

1шт.
