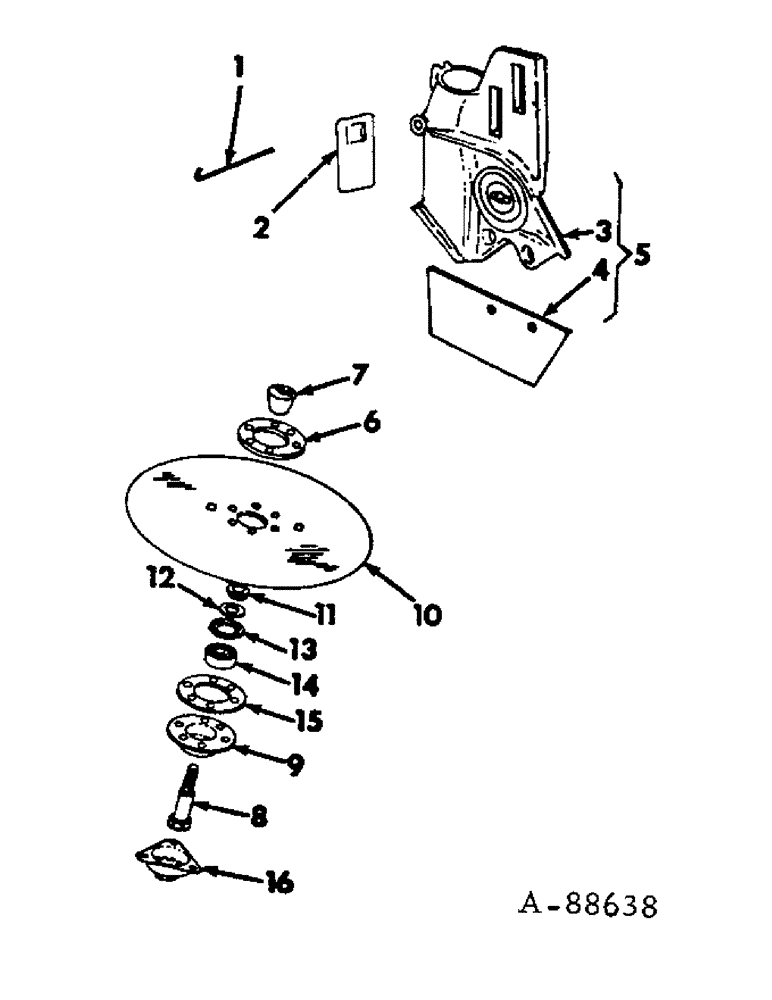

Запчасти Case IH LIQUID (B-58) - LIQUID FERTILIZERS, DISK APPLICATOR

1

625792R1

WIRE, cover fastening

1шт.

2

625789R1

COVER

PLATE, cover

1шт.

3

625777R1

DISC

BOOT, left

1шт.

3

625778R1

DISC

BOOT, right

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 in. C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

625780R1

BLADE

left runner

1шт.

4

625781R1

BLADE

right runner

1шт.

13969R1

RIVET, 5/16 x 5/8 in. csk-hd

4шт.

5

625799R91

BOOT

W/RUNNER, left

1шт.

5

625800R91

CLUTCH ASSEMBLY

BOOT W/RUNNER, right

1шт.

6

464480R1

WASHER

WASHER, reinforcement

1шт.

7

464468R1

BUSHING

SPACER, opener disk

1шт.

8

464467R1

BOLT,7/16" - 14 x 2 5/8"

opener disk

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 in. C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

1/4 x 7/16 in. cd-pltd cap

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

463955R1

DISC

DISK, opener

1шт.

11

602988R1

SPACER

bearing

1шт.

12

464628R1

SEAL

1шт.

13

602994R1

FLANGE

1шт.

14

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ball

1шт.

15

602992R1

GASKET

1шт.

16

464483R1

CYLINDER END CAP

CAP, bearing housing dirt

1шт.
