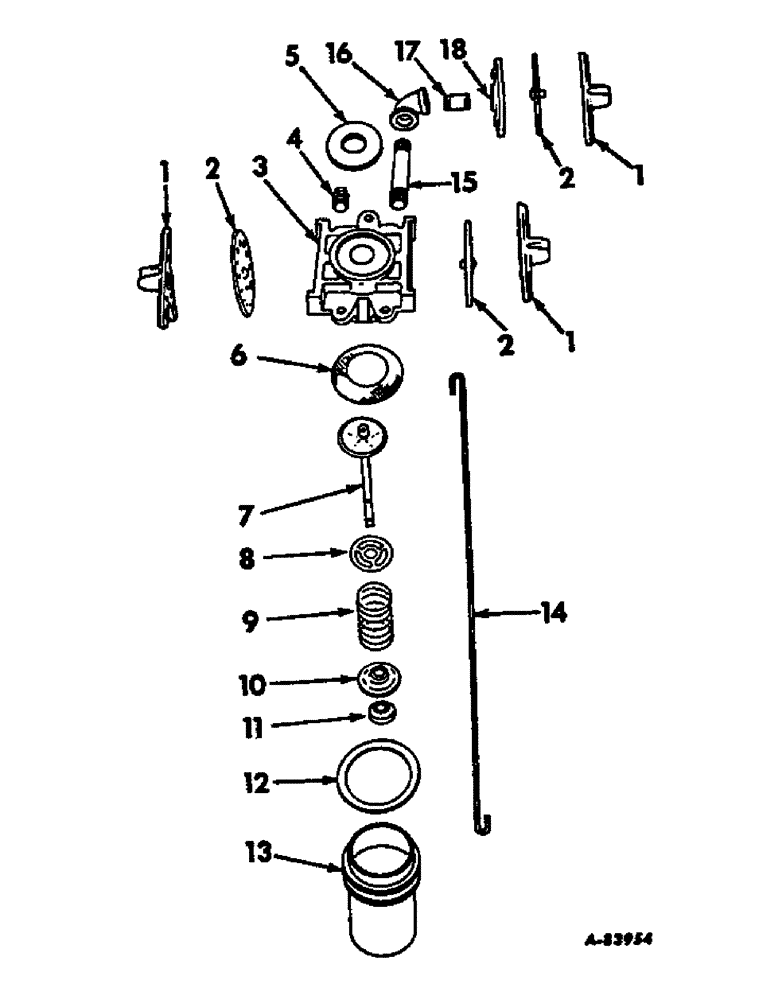

Запчасти Case IH LIQUID (B-56) - LIQUID FERTILIZERS, LIQUID FERTILIZER FLOW CONTROL VALVE

1

626230R1

HEAD, flow control

4шт.

18877R1

BOLT

1/4 x 1-1/4 C-Z sq-hd

8шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 C-Z wing

8шт.

2

626233R1

DISC, metering

4шт.

3

474702R1

HOUSING, flow control valve

2шт.

4

1017870R1

PLUG, pipe

2шт.

5

474703R2

WASHER, flow control valve

2шт.

6

478492R1

SCREEN, bowl filter

2шт.

7

474706R91

VALVE ASSY, flow control

2шт.

8

474710R1

GUIDE, valve

2шт.

9

474711R1

SPRING, flow control valve

2шт.

10

474705R1

CUP, spring retainer

2шт.

11

474709R1

COLLAR, flow control valve

2шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 stainless-stl cot

2шт.

12

625861R3

RUBBER WASHER

sediment jar

2шт.

13

64178D

CONTAINER

JAR, half pint glass mason

2шт.

14

626209R1

ROD, flow control valve

2шт.

15

626339R1

NIPPLE, 3/8 x 3 pipe

2шт.

16

119097

ELBOW,90º, 3/8" NPT

3/8 x 90 deg pipe

2шт.

17

626369R1

NIPPLE, 3/8 x 1 pipe

2шт.

18

626335R1

ADAPTER, flow control

2шт.
