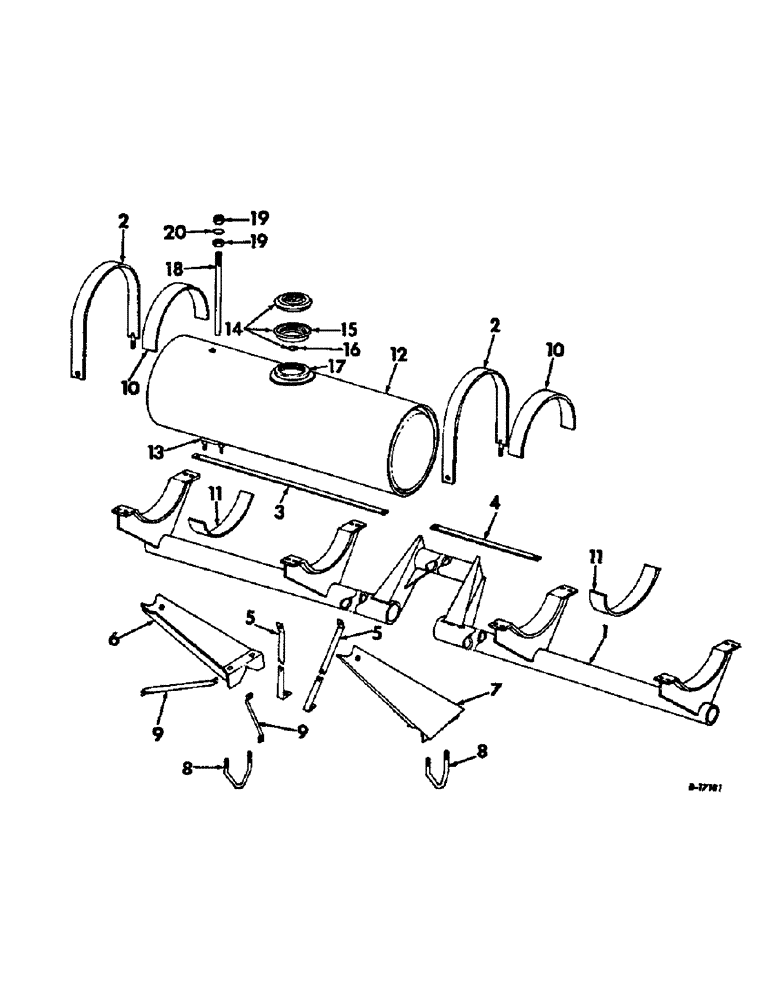

Запчасти Case IH LIQUID (B-54) - LIQUID FERTILIZERS, LIQUID FERTILIZER AND TANK AND SUPPORTS

1

488185R1

FRAME ASSY, main

1шт.

2

488193R1

STRAP ASSY, tank

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

3

488195R1

BAR, tie long

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

488196R1

BAR, tie short

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

488197R1

BRACE, main frame

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

487034R1

SUPPORT ASSY, main frame LH

1шт.

7

487035R1

SUPPORT ASSY, main frame RH

1шт.

8

475484R1

BOLT, frame support U

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

131047

WASHER,7/8"

7/8"

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex-hd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

475489R2

BRACE, frame support

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

488198R1

PAD, strap clamp

4шт.

11

488199R1

PAD, tank

4шт.

12

486421R91

TANK ASSY, 65 gal

2шт.

13

484740R1

HOUSING, tank valve

2шт.

484699R1

BOLT, 5/16-18 x 1-3/4 stainless-stl hex-hd

6шт.

484700R1

NUT

5/16-18 stainless-stl hex

6шт.

14

474676R93

CAP

ASSY, filler

2шт.

15

474677R3

GASKET

filler cap

2шт.

16

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

filler cap, note A

2шт.

17

481802R1

NECK FILLER

NECK, tank filler, note A

1шт.

18

474674R1

PIPE, tank vent

2шт.

19

474675R1

NUT, tank vent pipe

4шт.

20

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

vent pipe

2шт.
