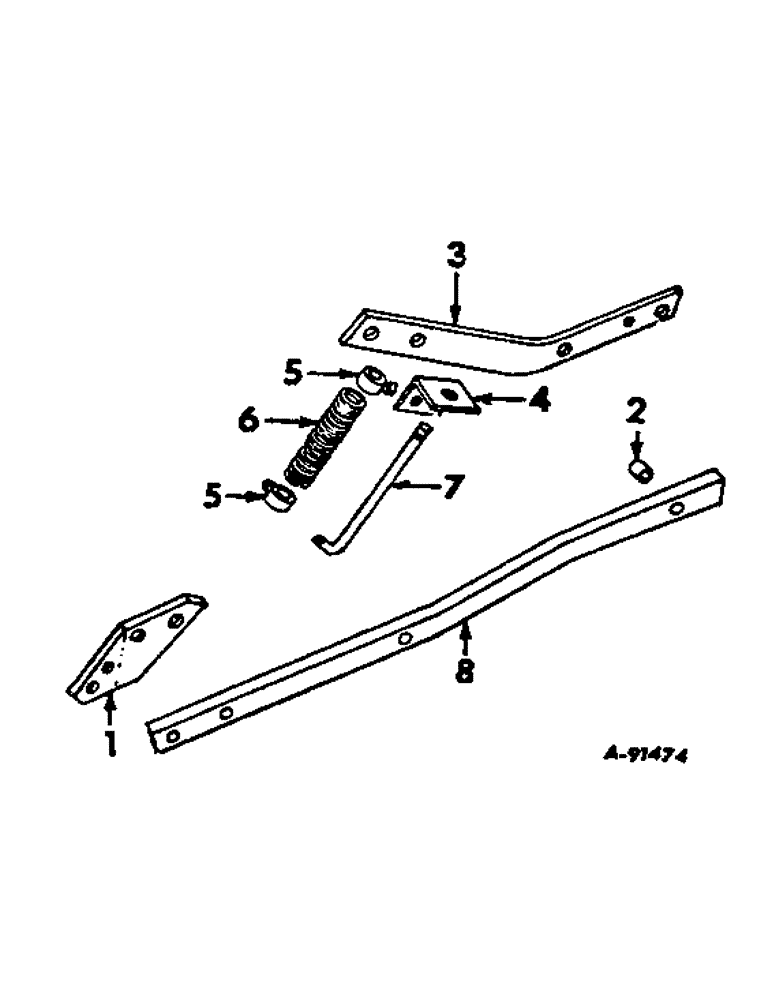

Запчасти Case IH LIQUID (B-51) - LIQUID FERTILIZERS, DISK APPLICATOR BOOT ATTACHING BAR AND BRACKET / PRODUCT GRAPHICS

1

467224R1

BRACKET, LH boot attaching

2шт.

1

467231R1

BRACKET, RH boot attaching

2шт.

2

475426R1

SPACER, drawbar

8шт.

3

475412R1

SUPPORT, pressure rod

4шт.

18815R1

BOLT,Hex, 1/2"-13 x 5", G2

1/2 x 5 in. C-Z mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

475413R1

GUIDE, pressure rod

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 in. C-Z hex-hd mach

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR, pressure rod

8шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

8шт.

6

PO32

SPRING, pressure rod

4шт.

7

475411R1

ROD, pressure spring

4шт.

PIN, 3/16 x 1 in. self-opening cotter

8шт.

8

475410R1

BAR, boot attaching

4шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 in. C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.

2753694R1

PRODUCT GRAPHIC, liquid gauge

2шт.
