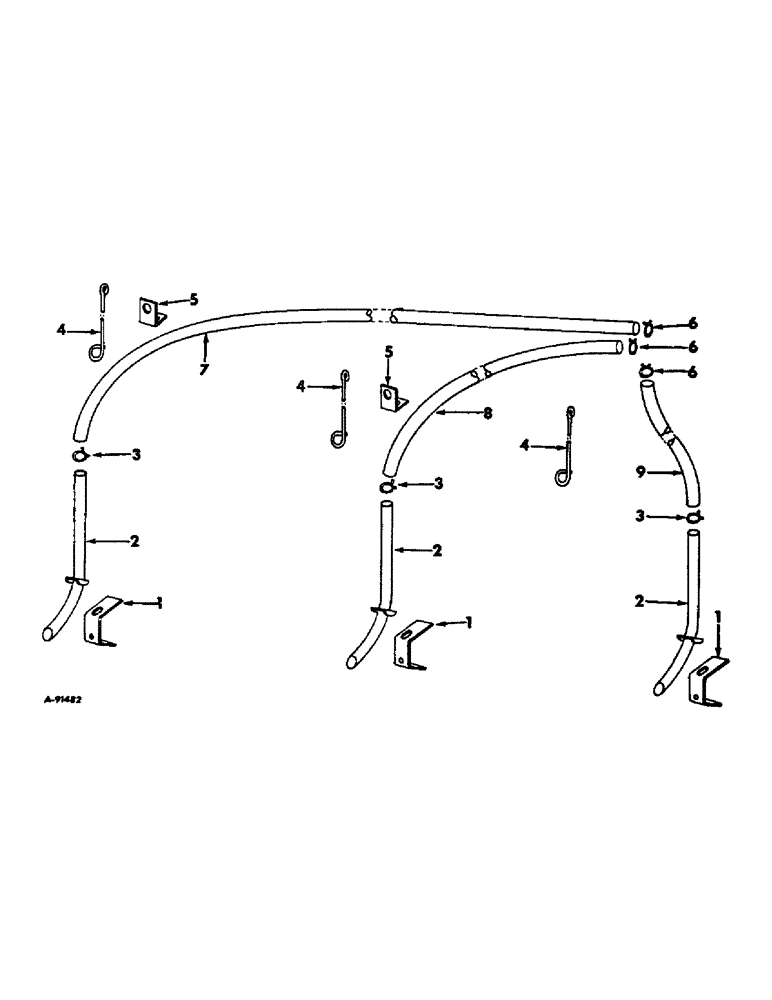

Запчасти Case IH LIQUID (B-49) - LIQUID FERTILIZERS, LIQUID FERTILIZER HOSES AND TUBES

1

464754R1

SUPPORT, applicator tube

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

179113

SCREW, 3/8-16 x 1-1/2 C-Z sq hd ov-pt set

4шт.

2

464751R11

TUBE

ASSY, liquid applicator

4шт.

3

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, no. 17 style 115 hose

4шт.

4

484499R1

BRACKET, support hose

4шт.

5

490191R1

CLIP, hose

2шт.

6

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP, hose

4шт.

7

HOSE, valve outlet long, 5/8 ID x 132 in. order hose from 100 ft. roll marked 526604R1

2шт.

8

HOSE, valve outlet medium, 5/8 ID x 96 in. order hose from 100 ft. roll marked 526604R1

2шт.

9

HOSE, valve outlet short, 5/8 ID x 60 in., order hose from 100 fto. roll marked 526604R1

2шт.
