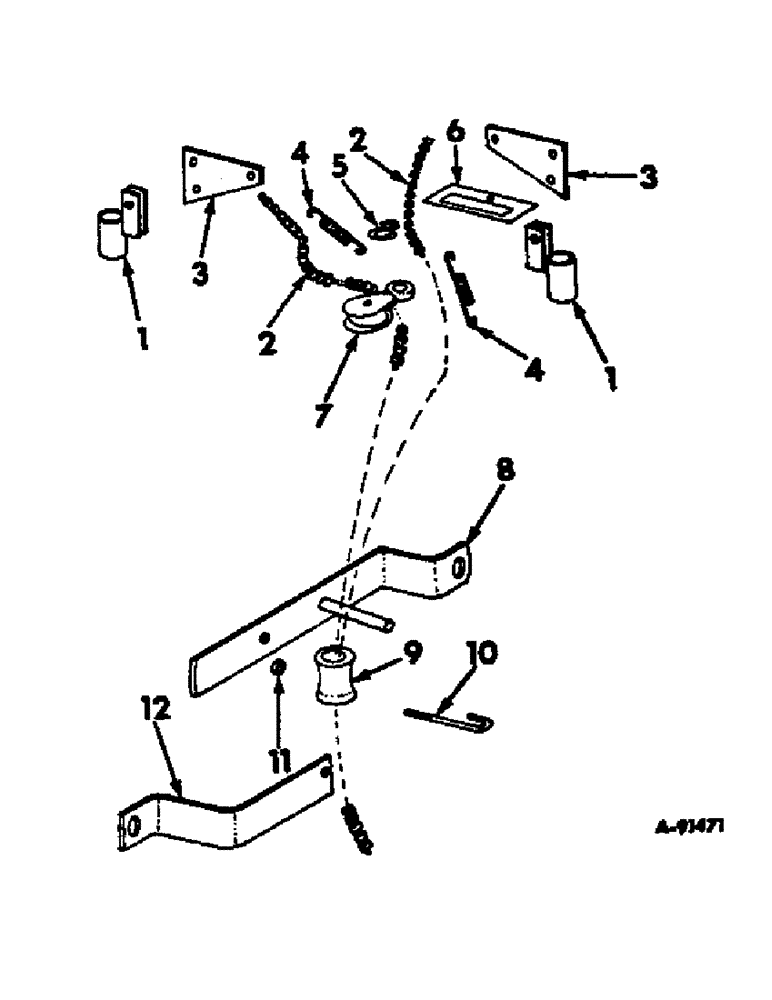

Запчасти Case IH LIQUID (B-47) - LIQUID FERTILIZERS, LIQUID FERTILIZER CONTROLS

1

474694R91

PIVOT ASSY, pull chain

2шт.

2

626208R1

CHAIN, control

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

3шт.

3

474699R1

ARM, shut off control

2шт.

21815R1

PIN, 5/16 x 11/16 C-Z std-hd 5/16" x 11/16"

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

4

943045R1

SPRING

control chain

2шт.

5

512749R1

HOOK

pulley

1шт.

6

486774R1

BAR, pulley mounting

1шт.

7

514938R91

PULLEY ASSY, throw-out

1шт.

8

488203R1

LEVER ASSY, throw-out

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

3125AA

SLIDE, chain

1шт.

10

620101R1

BOLT, hook

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

625347R1

BUSHING, throw-out lever

1шт.

12

488202R1

BAR, rockshaft

1шт.
