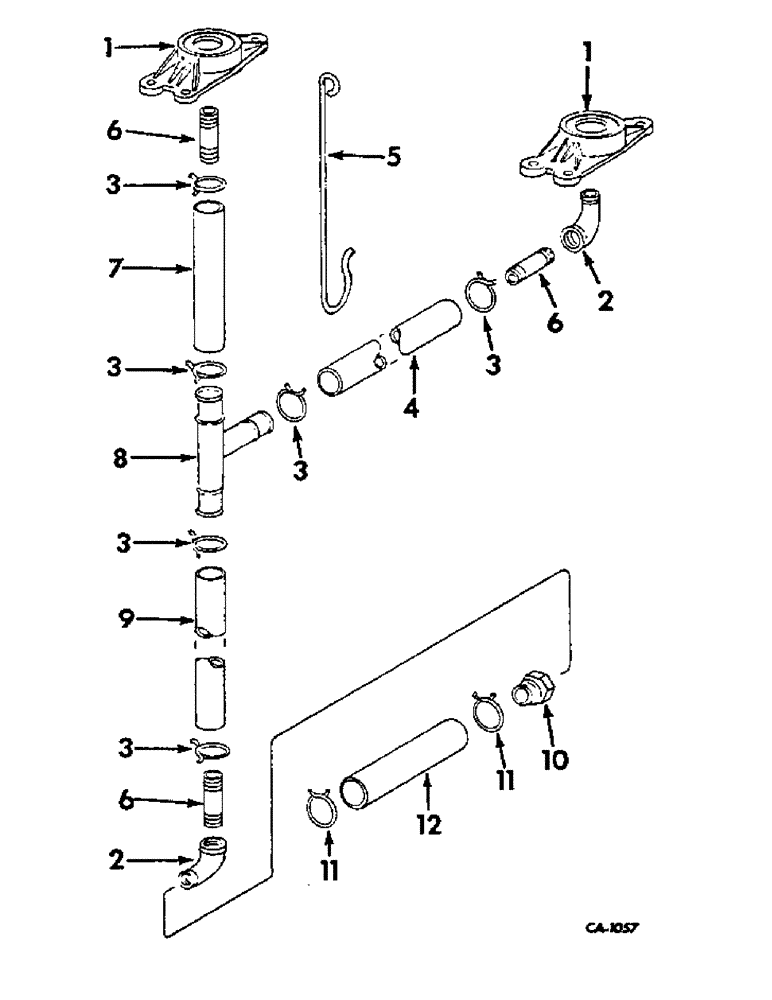

Запчасти Case IH LIQUID (B-42) - LIQUID FERTILIZER SQUEEZE PUMP, CONNECTIONS USED W/58-SERIES 8-ROW

1

475203R1

FITTING, tank outlet

4шт.

2

23756R1

ELBOW, 3/4 x 90 deg street

4шт.

3

681146R1

HOSE CLAMP,#22, 1 3/8", Spring

CLAMP, no. 22 hose

12шт.

4

HOSE, outer tank to tee, use 63 inches of 1 inch hose from a 50 ft roll marked 490960R1

2шт.

5

491530R1

SUPPORT, hose

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

23755R1

NIPPLE, 3/4 x 2 CDP pipe

6шт.

7

HOSE, inner tank to tee, use 6 inches of 1 inch hose from a 50 ft roll marked 490960R1

2шт.

8

493716R1

TEE, hose

2шт.

9

HOSE, tee to reducing adapter, use 47 inches of 1 inch hose from a 50 ft roll marked 490960R1

2шт.

10

24175R1

BUSHING,1" NPT Male x 3/4" NPT Fem

ADAPTER, 1 in. male x 3/4 in. female CDP reducing

2шт.

11

310637R1

CLAMP, no 28 hose

4шт.

12

HOSE, reducing adapter to pump, use 5 inches of 1 inch hose from a 50 ft roll marked 490960R1

2шт.
