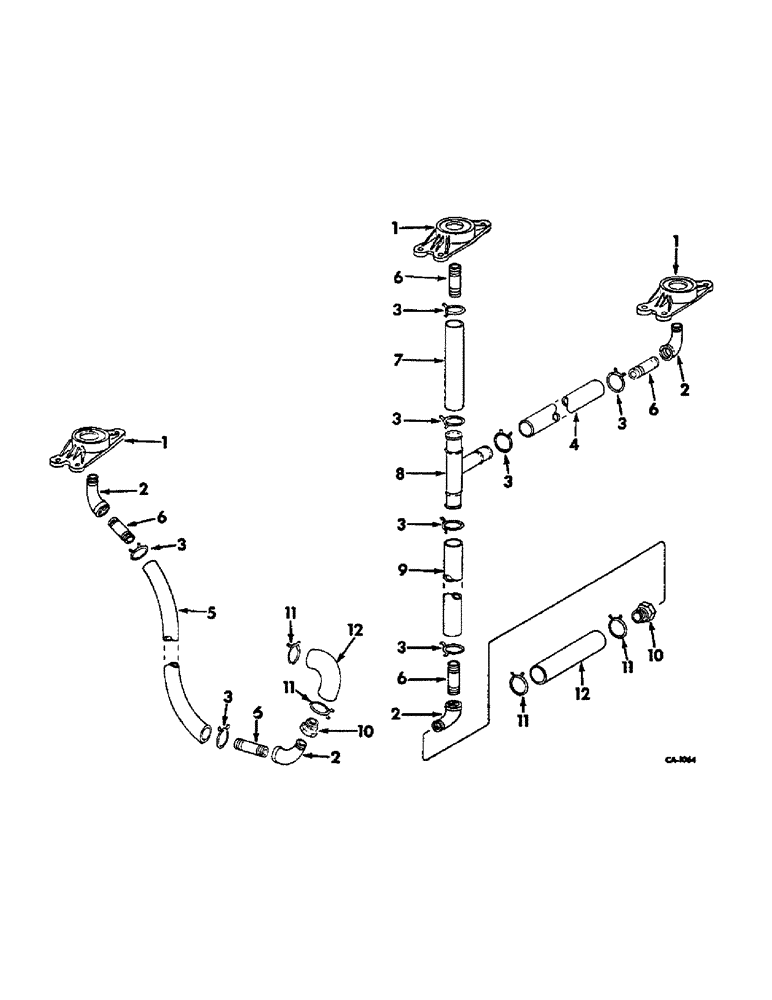

Запчасти Case IH LIQUID (B-40) - LIQUID FERTILIZERS - SQUEEZE PUMP, LIQUID FERTILIZER SQUEEZE PUMP, CONNECTIONS USED W/56 & 66 6-ROW
11
3
11
11
7
3
5
12
6
3
4
3
1
9
12
6
8
1
6
10
10
3
6
3
11
2
6
3
2
2
1
3
2
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
4
HOSE, RH tank to tee, use 42 inches of 1 inch hose from a 50 ft roll marked 490960R1
1шт.
5
HOSE, LH tank to reducing adapter, use 105 inches of 1 inch hose from a 50 ft roll marked 490960R1
1шт.
7
HOSE, inner tank to tee, use 6 inches of 1 inch hose from a 50 ft roll marked 490960R1
1шт.
9
HOSE, tee to reducing adapter, use 50 inches of 1 inch hose from a 50 ft roll marked 490960R1
1шт.
10
24175R1
BUSHING,1" NPT Male x 3/4" NPT Fem
ADAPTER, 1 inch male x 3/4 female CDP reducing
2шт.
12
HOSE, reducing adapter to pump, use 5 inches of 1 inch hose from a 50 ft roll marked 490960R1
1шт.
