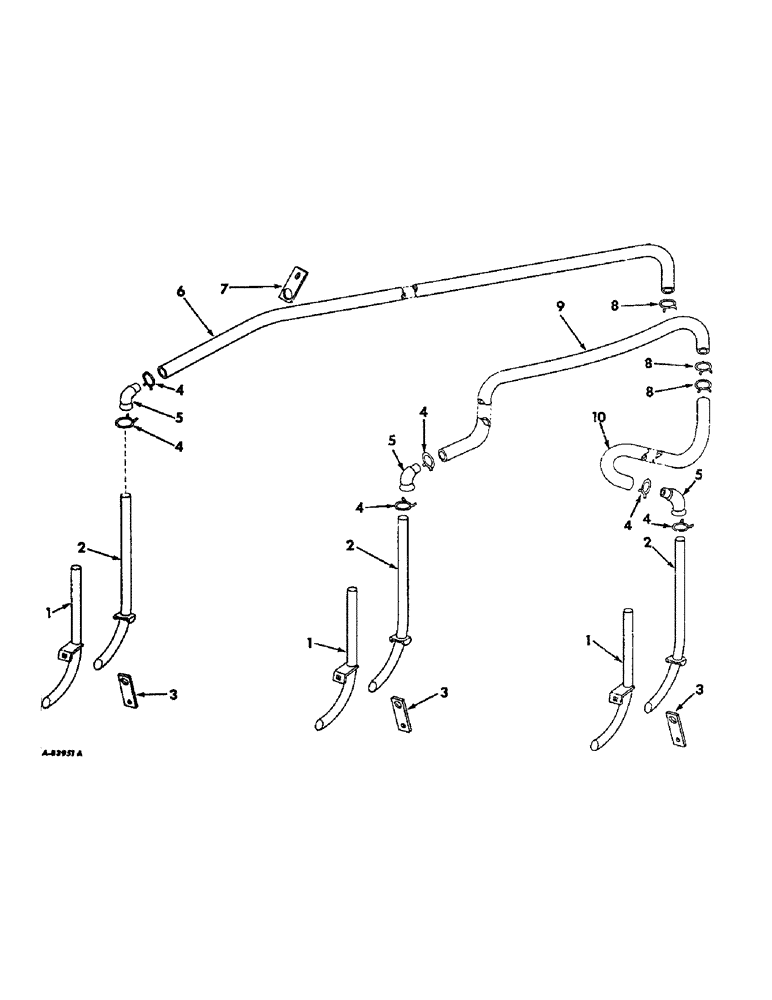

Запчасти Case IH LIQUID (B-22) - 58 LIQUID FERTILIZERS, LIQUID FERTILIZER HOSES AND TUBES, FOR SIX ROW PLANTERS

1

477095R91

TUBE ASSY, for runner openers

3шт.

2

464751R11

TUBE

ASSY, for double disk openers

3шт.

3

464753R1

SUPPORT, tube, for double disk openers

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-11 x 1 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, extension tube lower

6шт.

5

476908R2

ELBOW, valve outlet long hose

3шт.

6

HOSE, valve outlet long, use 60 in. of 5/8 ID transparent hose from 100 ft roll, 526604R1

1шт.

7

479263R1

CLIP, hose retaining, used w/65 gallon tank, 2 used w/100 gallon tank

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach, used w/65 gallon tank, 2 used w/100 gallon tank

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Used w/65 gallon tank, 2 used w/100 gallon tank 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Used w/65 gallon tank; 2 used w/100 gallon tank 1/2"

1шт.

8

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, 5/8 in. plastic hose

3шт.

9

HOSE, valve outlet middle, use 32 in. of 5/8 ID transparent hose from 100 ft roll, 526604R1, used w/65 gallon tank, use 42 in. of 5/8 ID transparent hose from 100 ft roll, 526604R1, used w/100 gallon tank

1шт.

10

HOSE, valve outlet short, use 24 in. of 5/8 ID transparent hose from 100 ft roll, 526604R1, used w/65 gallon tank, use 32 in. of 5/8 ID transparent hose from 100 ft roll, 526604R1, used w/100 gallon tank

1шт.
