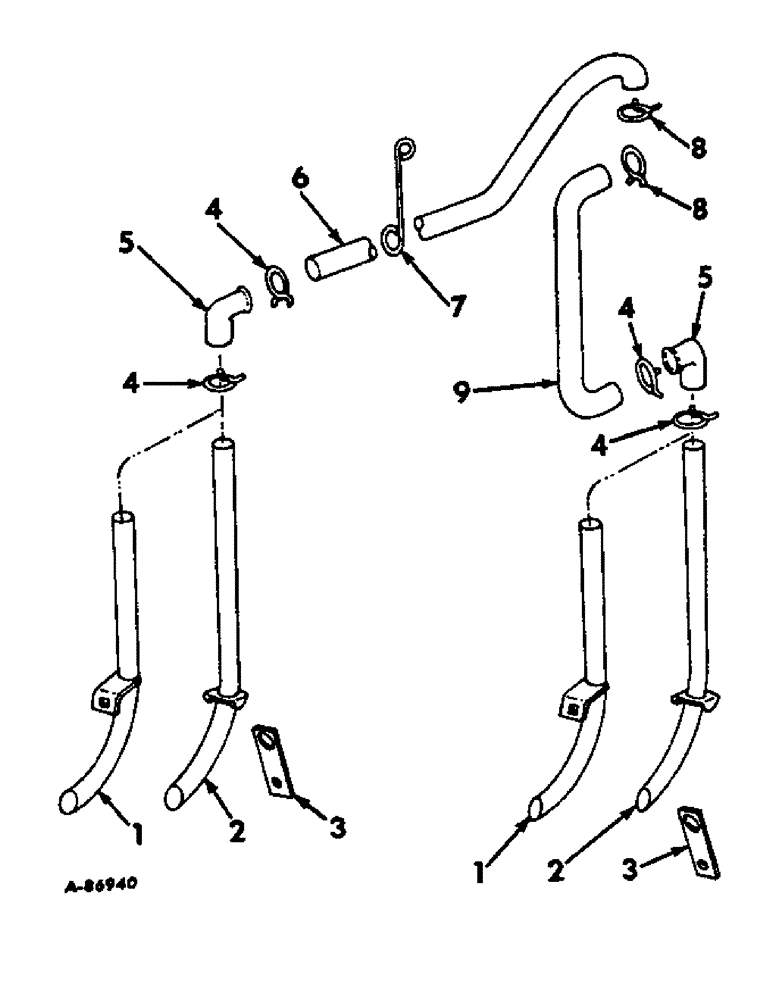

Запчасти Case IH LIQUID (B-21) - 58 LIQUID FERTILIZERS, LIQUID FERTILIZER HOSES, CLAMPS & TUBES, FOR ONE TANK, FOUR & EIGHT ROW

1

477095R91

TUBE ASSY, for runner opener

2шт.

2

464751R11

TUBE

ASSY, for double disk opener

2шт.

3

464753R1

SUPPORT, tube, for double disk opener

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, tube

4шт.

5

476908R2

ELBOW, valve outlet long hose

2шт.

6

HOSE, valve outlet long, used for four row, for 65 gallon tank use 54 inches of 5/8 ID hose from a 100 ft roll marked 526604R1, for 100 gallon tank use 60 inches of 5/8 ID hose from a 100 ft roll marked 526604R1

1шт.

6

HOSE, valve outlet long, used w/eight row, for outer tanks use 50 inches of 5/8 ID hose from a 100 ft roll marked 526604R1, for inner tanks use 42 inches of 5/8 ID hose from a 100 ft roll marked 526604R1

1шт.

7

484499R1

BRACKET, support hose, used w/eight row

1шт.

7

479263R1

CLIP, hose retaining, used w/four row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 C-Z cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

1шт.

8

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, 5/8 in. plastic hose

2шт.

9

HOSE, valve outlet short, for 50 and 65 gallon tanks use 28 inches of 5/8 ID hose from a 100 ft roll marked 526604R1, for 100 gallon tank use 42 inches of 5/8 ID hose from a 100 ft roll marked 526604R1

1шт.
