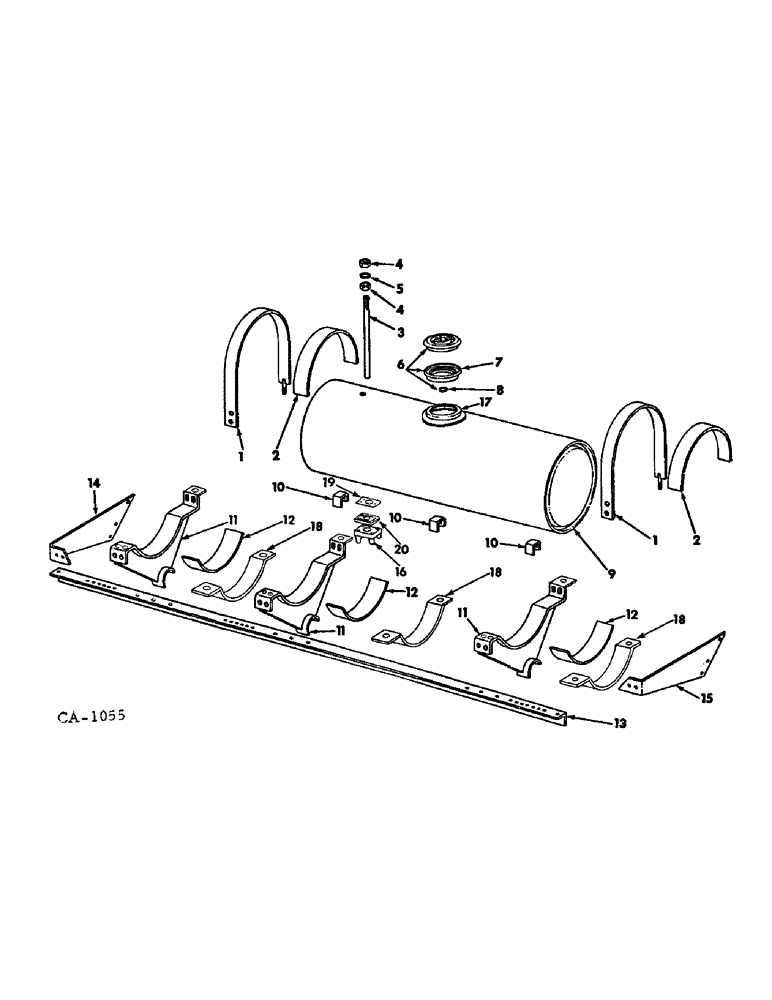

Запчасти Case IH LIQUID (B-16) - 58 LIQUID FERTILIZERS, LIQUID FERTILIZER TANK AND SUPPORTS, FOR FOUR AND SIX ROW

1

479257R92

STRAP ASSY, clamp, used w/65 gallon tank

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

493664R1

STRAP ASSY, clamp, used w/100 gallon tank

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

478846R1

PAD, clamp strap, used w/65 gallon tank

2шт.

2

493667R1

PAD, clamp strap, used w/100 gallon tank

2шт.

3

474674R1

PIPE, tank vent, used w/65 gallon tank

1шт.

3

493663R1

PIPE, tank vent, used with 100 gallon tank

1шт.

4

474675R1

NUT, tank bent pipe lock

2шт.

5

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

vent pipe

1шт.

6

474676R93

CAP

ASSY, filler, used w/gravity feed

1шт.

6

469918R3

CAP

ASSY, filler, used w/squeeze pump

1шт.

7

474677R3

GASKET

filler cap

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

filler cap

1шт.

9

493008R91

1шт.

TANK ASSY, 65 gal, replaces 486421R91, consists of (1) tank 493013R91 (NSS), (1) neck 481802R1, (2) pad 479262R1 (NSS), (1) plate 493007R1, (1) gasket 493006R1, (1) housing 484740R2, (3) bolt 484699R1, (3) nut 484700R1, (3) screw 492999R1, (1) product graphic 2752432R1

1шт.

9

493658R91

1шт.

TANK W/VALVE HOUSING, 100 gallon consists of (1) tank 493659R91 (NSS), (1) neck 481802R1, (2) pad 479262R1 (NSS), (1) plate 493007R1, (1) gasket 493006R1, (1) housing 484740R2, (3) screw 492999R1, (3) bolt 484699R1, (3) nut 484700R1, (1) product graphic 2752432R1

1шт.

10

477575R2

CHANNEL

marker chain guide

3шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT, 1/2 x 1-4 C-Z no. 3 plow

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

11

478844R92

SUPPORT ASSY, tank, used w/65 gallon tank

3шт.

19285R1

BOLT

1/2 x 1-1/4 C-Z sq-nk crg

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

11

493671R1

SUPPORT ASSY, tank, used w/100 gallon tank

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

12

474687R1

PAD, tank, used w/65 gallon tank

3шт.

12

493656R1

PAD, tank, used w/100 gallon tank

3шт.

13

476912R3

ANGLE, lift rod support LH

1шт.

13

476913R3

ANGLE, lift rod support RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 used w/65 gallon tank, 5 used w/100 gallon tank 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 3 used w/65 gallon tank; 5 used w/100 gallon tank 1/2"

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg, 3 used w/65 gallon tank, 5 used w/100 gallon tank

1шт.

14

480146R1

PLATE, lift rod support RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

480145R1

PLATE, lift raod support LH, used w/100 gallon tank

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

484740R2

HOUSING, valve

1шт.

When ordering ref. nos. 16 and 17 service kit, fiber glass repair 481803R91 is required.

1шт.

484699R1

BOLT, 5/16 x 1-3/4 stainless stl

3шт.

484700R1

NUT

5/16-18 stainless stl hex

3шт.

17

481802R1

NECK FILLER

NECK, tank filler

1шт.

When ordering ref. nos. 16 and 17 service kit, fiber glass repair 481803R91 is required.

1шт.

18

493668R1

PAD, tank, used w/100 gallon tank

3шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 zn sq-nk crg

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 znd hex-hd mach

1шт.

19

493007R1

PLATE, support

1шт.

20

493006R1

GASKET, valve housing

1шт.
