Запчасти Case IH LIQUID (B-06) - 56 AND 66 LIQUID FERTILIZERS, LIQUID FERTILIZER FLOW CONTROL

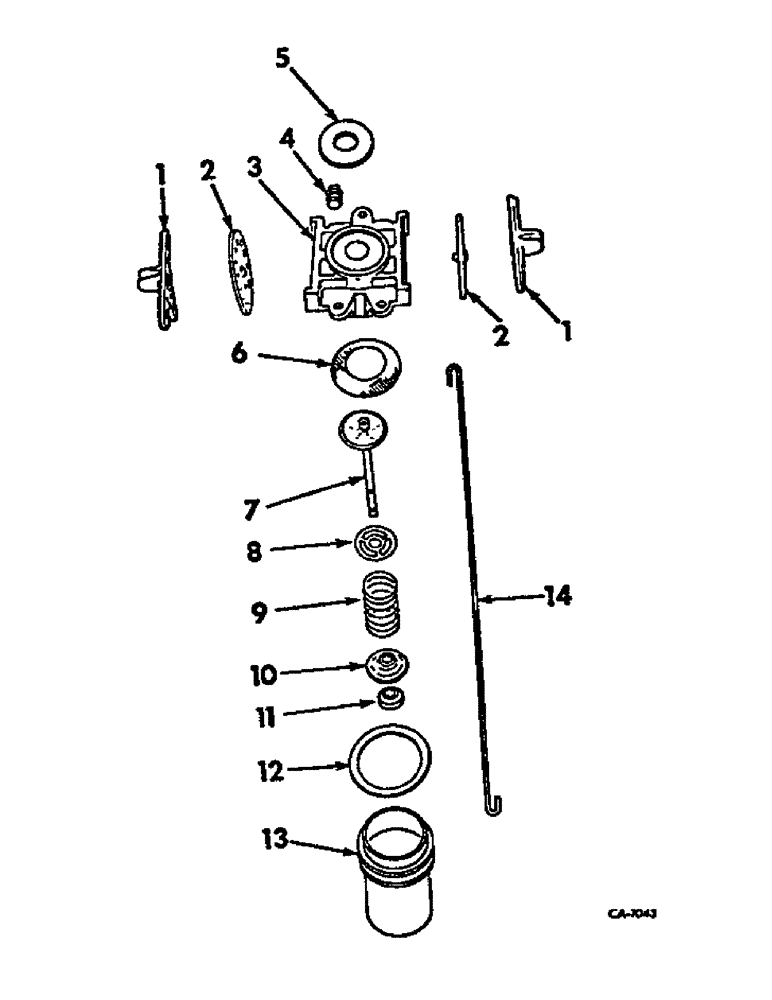

Схема запчастей Case IH LIQUID - (B-06) - 56 AND 66 LIQUID FERTILIZERS, LIQUID FERTILIZER FLOW CONTROL
13
2
6
2
7
1
1
3
8
11
5
9
4
14
12
10

Артикул

Название

Примечание

Количество

1

626230R1

HEAD, flow control

2шт.

18877R1

BOLT

1/4 x 1-1/4 C-Z sq-hd mach

4шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 C-Z wing

4шт.

2

626233R1

DISC, metering valve

2шт.

3

474702R1

HOUSING, flow control valve

1шт.

4

474704R1

PLUG, pipe

2шт.

5

474703R2

WASHER, flow control valve

1шт.

6

478492R1

SCREEN, bowl filter

1шт.

7

474706R91

VALVE ASSY, flow control

1шт.

8

474710R1

GUIDE, valve

1шт.

9

474711R1

SPRING, flow control

1шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 stainless stl cot

1шт.

10

474705R1

CUP, spring retainer

1шт.

11

474709R1

COLLAR, valve stem

1шт.

12

625861R3

RUBBER WASHER

sediment bowl rubber

1шт.

13

64178D

CONTAINER

JAR, half pint glass mason

1шт.

14

626209R1

ROD, flow control valve

1шт.

Выбрано товаров: 17
