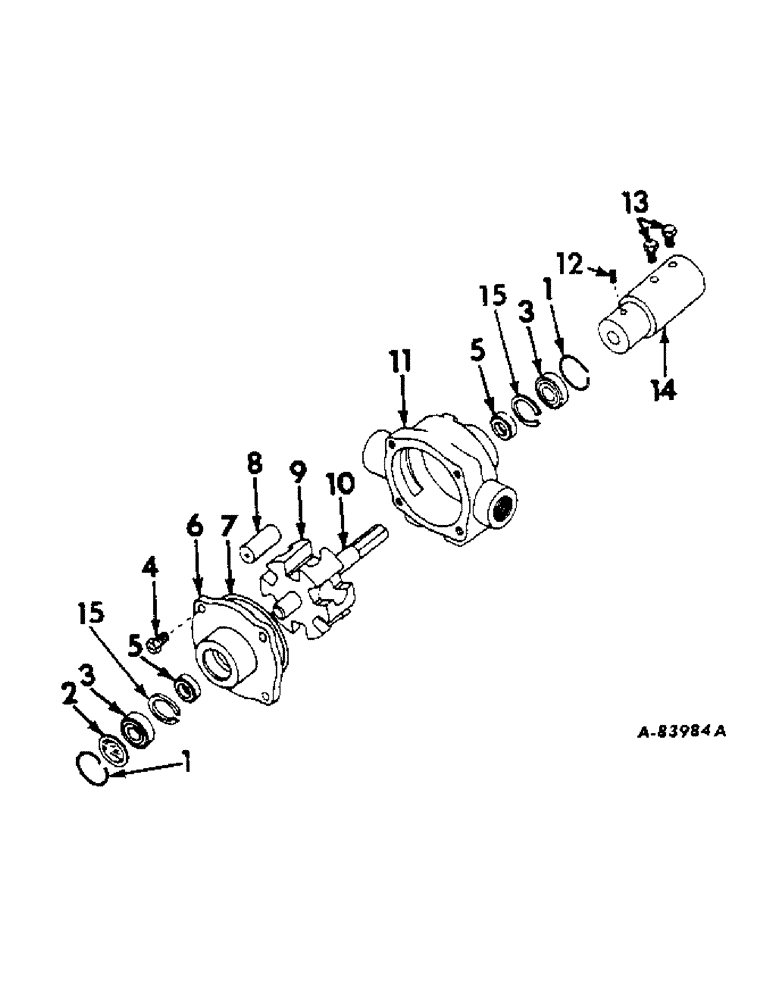

Запчасти Case IH LIQUID (C-21) - LIQUID CHEMICAL FERTILIZERS, PUMP ASSEMBLY

526990R91

PUMP

ASSY, hypro no. C-6600, 6 nylon roller, cast iron, consists of all parts marked unit A

1шт.

463269R91

PUMP ASSY, hypro no. N-7500, 8 nylon roller, ni-resist, order pump assy, 463269R92, consists of all parts marked unit B

1шт.

463269R92

PUMP ASSY, hypro no. N-7700, 7 nylon roller, ni-resist, for tractors with 540 RPM PTO, consists of all parts marked unit C

1шт.

541271R91

PUMP

ASSY, hypro no. N-7100, 7 nylon roller, ni-resist, for tractors with 1000 RPM PTO, consists of all parts marked unit D

1шт.

1

485612R1

RING, bearing retainer, 2 for unit A

1шт.

1

485620R1

RING, bearing retainer, 2 for units B, C and D

1шт.

2

485810R1

PLATE, name, unit A

1шт.

2

PLATE, name, not serviced separately, units B, C and D

1шт.

3

492087R91

BALL BEARING,0.625" ID x 1.375" OD x 0.4375"

ball, 2 for unit A

1шт.

3

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

2 for units B, C and D

1шт.

4

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap, 4 for unit A, 6 for units B, C and D

1шт.

5

485806R91

SEAL

rubber sealing member, 2 for unit A

1шт.

5

540502R91

SEAL

rubber sealing member, 2 for units B, C and D

1шт.

6

485807R91

PLATE W/SEAL ASSY, end, unit A

1шт.

6

PLATE W/SEAL ASSY, end, unit B, discontinued for service

1шт.

6

540503R91

PLATE W/SEAL ASSY, end, unit C

1шт.

6

541273R91

PLATE W/SEAL ASSY, end, unit D

1шт.

7

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gasket end plate, unit A

1шт.

7

343700R1

O-RING,-155, 70 Duro, 3.987" ID x .103" Thk

gasket end plate, units B, C and D

1шт.

8

485811R1

ROLLER

nylon, 6 for unit A, 7 for units C and D, 8 for unit B

1шт.

9

485808R91

ROTOR ASSY, unit A

1шт.

9

485817R91

ROTOR ASSY, unit B

1шт.

9

540504R91

ROTOR ASSY, unit C

1шт.

9

541274R91

ROTOR ASSY, unit D

1шт.

10

485809R1

SHAFT, unit A

1шт.

10

SHAFT, unit B, discontinued for service

1шт.

10

540505R1

SHAFT, units C and D

1шт.

11

485805R91

BODY W/SEAL ASSY, unit A

1шт.

11

485814R91

BODY W/SEAL ASSY, unit B

1шт.

11

540501R91

BODY W/SEAL ASSY, unit C

1шт.

11

541272R91

BODY W/SEAL ASSY, unit D

1шт.

12

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 znd hex-soc-hd cup point set, units A, B, C and D

1шт.

13

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 and hex-hd cap, 2 for unit A

1шт.

13

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 znd sq-hd cup-pt set, unit A

1шт.

13

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hex-soc-hd cup point set, 4 for units B, C and D

1шт.

14

485813R91

ADAPTER W/SET SCREWS ASSY, for standard 1-3/8 in. PTO, unit A

1шт.

14

ADAPTER W/SET SCREWS ASSY, unit B, discontinued for service

1шт.

14

540507R91

ADAPTER W/SET SCREWS ASSY, units C & D

1шт.

540511R1

KEY, spline, units C and D

1шт.

540508R91

BOLT W/NUT & LOCKWASHER, shear, units C and D

1шт.

15

485823R1

RING, bearing spacer, 2 for units B, C and D

1шт.

540506R91

KIT, repair, units B, C and D, consists of (1) o-ring 343700R1, (7) roller 485711R1, (2) seal 540502R91

1шт.
