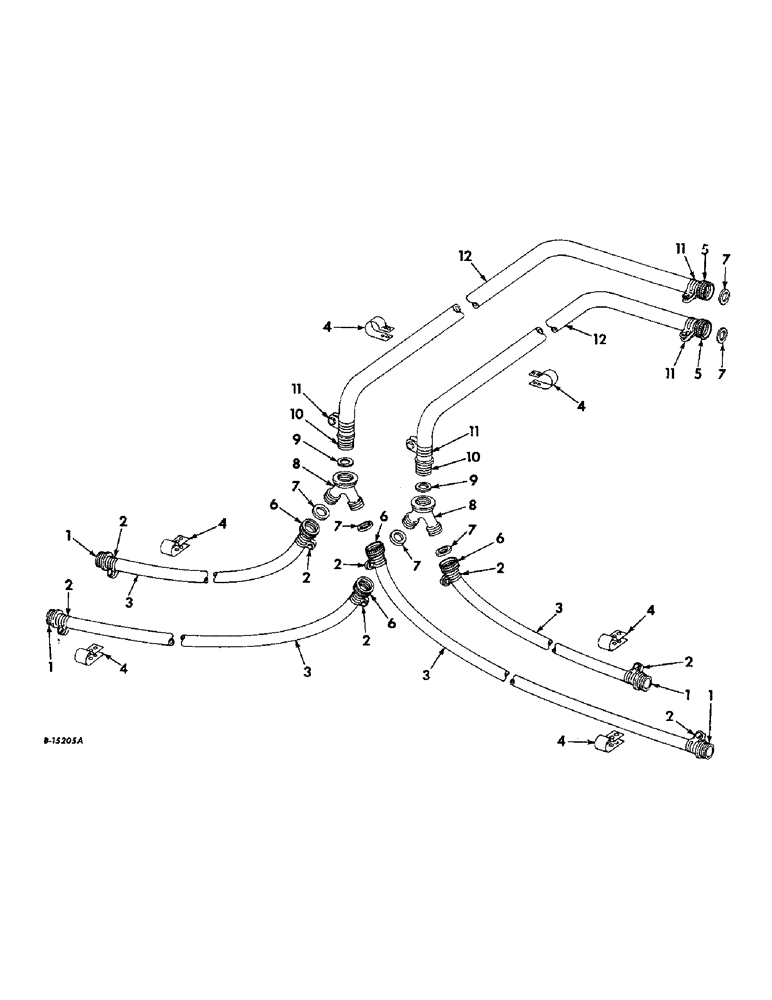

Запчасти Case IH LIQUID (C-19) - LIQUID CHEMICAL FERTILIZERS, LIQUID PRE-EMERGE CHEMICAL CONNECTIONS, FOR 101 SQUADRON HITCH

1

478015R1

COUPLING, 1/2 in. hose shank, 3/4 in. male hose, brass

4шт.

2

233384R91

CLAMP, pump hose

8шт.

3

HOSE, pump extension 1/2 x 7/8 x 60 in. long, order 526602R1

4шт.

4

526653R1

CLIP, pump hose

6шт.

102637

NUT,1/2"-13, G5

6шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

478010R1

COUPLING, 3/4 in. hose shank, 3/4 female hose swivel, brass

2шт.

6

475220R1

COUPLING, 1/2 in. hose shank, 3/4 in. female hose swivel, brass

4шт.

7

452222R1

WASHER, on female hose coupling

6шт.

8

478012R1

COUPLING, 3/4 male, 3/4 female siamese brass

2шт.

9

478722R1

WASHER, on siamese coupling end

2шт.

10

478011R1

COUPLING, 3/4 in. hose shank, 3/4 in. male hose, brass

2шт.

11

526609R91

CLAMP, 3/4 in. hose

4шт.

12

HOSE, pump 3/4 x 1-3/32 x 132 in. long, order 526603R1

2шт.
