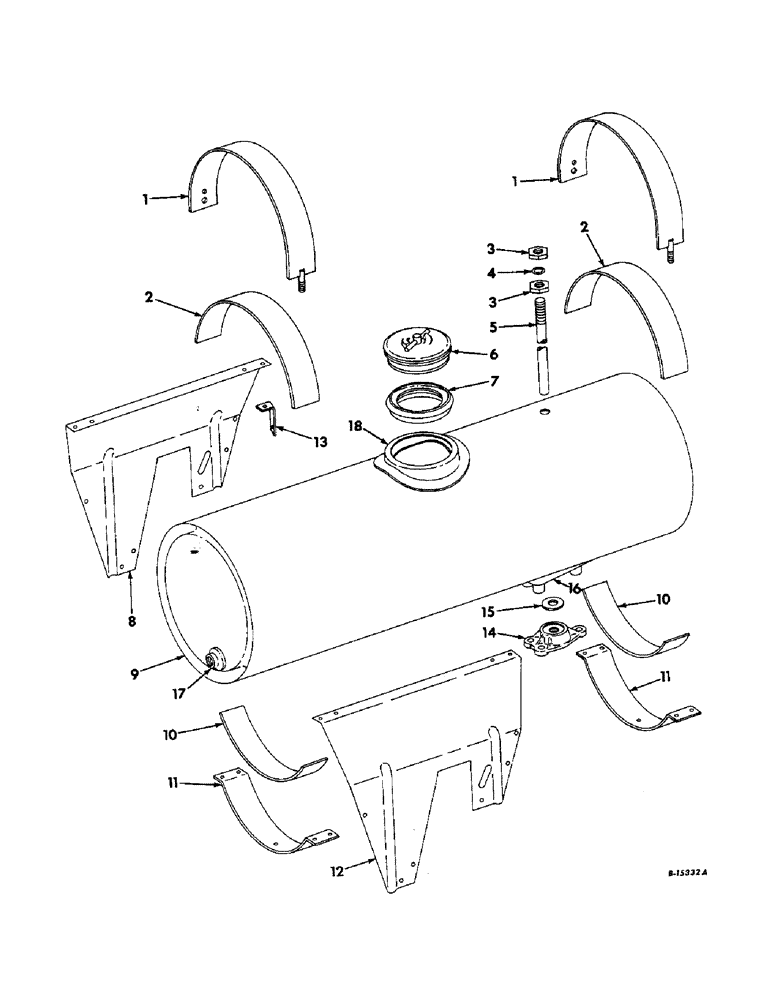

Запчасти Case IH LIQUID (C-14) - LIQUID CHEMICAL FERTILIZERS, LIQUID PRE-EMERGE TANK AND SUPPORTS, 1965 AND SINCE

1

479257R92

STRAP ASSY, clamp

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

478846R1

PAD, clamp

2шт.

3

474675R1

NUT, pipe lock

2шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

tank pipe

1шт.

5

474674R1

PIPE, tank

1шт.

6

469918R2

CAP

COVER ASSY, tank

1шт.

7

474677R3

GASKET

tank cover

1шт.

8

475205R31

SUPPORT ASSY, tank LH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

493010R91

TANK ASSY, 50 gallon chemical, includes ref. nos. 16, 17 and 18

1шт.

10

474687R1

PAD, tank

2шт.

11

479271R1

STRAP, tank support

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z on right side

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

475206R2

SUPPORT, tank RH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

478488R1

GUIDE, rod

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

475203R1

FITTING, tank outlet

1шт.

484699R1

BOLT, 5/16-18 x 1-3/4 stainless stl hex-hd

3шт.

15

474703R2

WASHER, tank outlet fitting

1шт.

16

484740R1

HOUSING, valve

1шт.

When ordering ref. nos. 16, 17 and 18, service kit 481803R91 is required

1шт.

484700R1

NUT

stainless stl hex

3шт.

17

475202R1

FITTING, tank outlet

1шт.

When ordering ref. nos. 16, 17 and 18, service kit 481803R91 is required

1шт.

18

481802R1

NECK FILLER

NECK, tank filler

1шт.

When ordering ref. nos. 16, 17 and 18, service kit 481803R91 is required

1шт.
