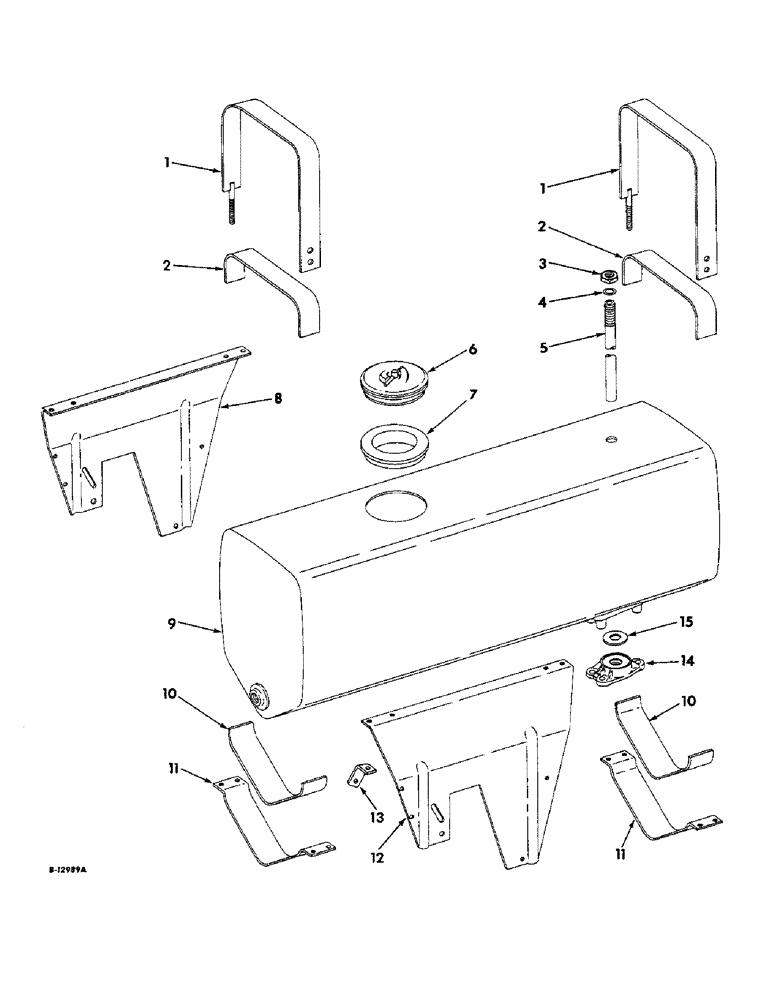

Запчасти Case IH LIQUID (C-44) - LIQUID CHEMICAL FERTILIZERS, LIQUID PRE-EMERGE TANK AND SUPPORTS, 1963 TO 1965

1

474684R92

STRAP ASSEMBLY, clamp

2шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 in. C-Z cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

619856R1

WASHER

13/32 x 1 in. x 16 ga C-Z

2шт.

2

474686R1

PAD, clamp

2шт.

3

474675R1

NUT, vent pipe lock

2шт.

4

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

vent pipe lock nut, 11/16 x 7/8 x 3/32 in.

1шт.

5

474674R1

PIPE, tank vent

1шт.

6

469918R2

CAP

COVER, tank

1шт.

7

474677R3

GASKET

cover

1шт.

8

475205R21

SUPPORT ASSEMBLY, tank LH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

475200R91

TANK ASSEMBLY, 50 gallon

1шт.

10

474687R1

PAD, tank

2шт.

11

475204R1

STRAP, tank support

2шт.

12

475206R2

SUPPORT, tank RH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

478488R1

GUIDE, rod

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

475203R1

FITTING, tank outlet

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 5/16 x 1-1/4 in. C-Z cap

3шт.

15

474703R2

WASHER, tank outlet fitting

1шт.
