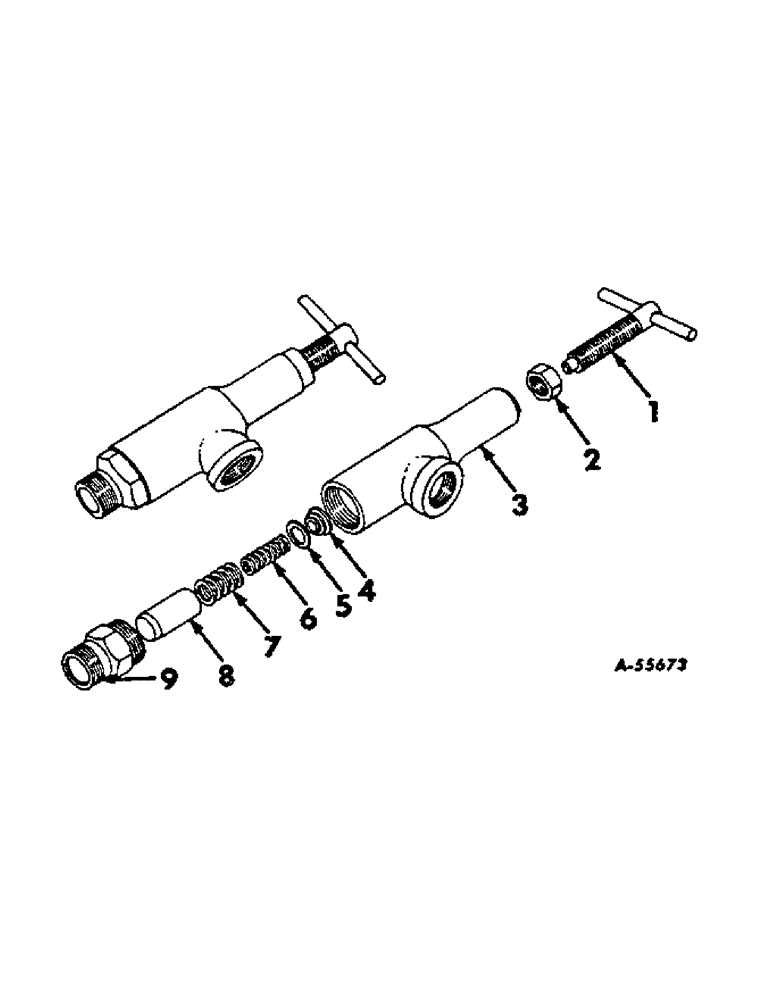

Запчасти Case IH LIQUID (C-11) - LIQUID CHEMICAL FERTILIZERS, PRESSURE RELIEF VALVE

526788R91

VALVE ASSEMBLY, pressure relief consists of all items listed below

1шт.

1

488440R1

STEM, pressure relief

1шт.

2

486149R1

NUT, aluminum lock

1шт.

3

486150R1

BODY, aluminum

1шт.

4

486151R1

VALVE, spring retainer

1шт.

5

Not serviced separately, order kit 486152R91

1шт.

6

486155R1

SPRING, stainless steel inside

1шт.

7

486156R1

SPRING, stainless steel outside

1шт.

8

Not serviced separately, order kit 486152R91

1шт.

9

486157R1

ADAPTER, aluminum inlet

1шт.

486152R91

KIT, seat and washer, consists of ref. 5 and 8

1шт.

526789R91

STRAINER ASSEMBLY, line, consists of all items listed below

1шт.
