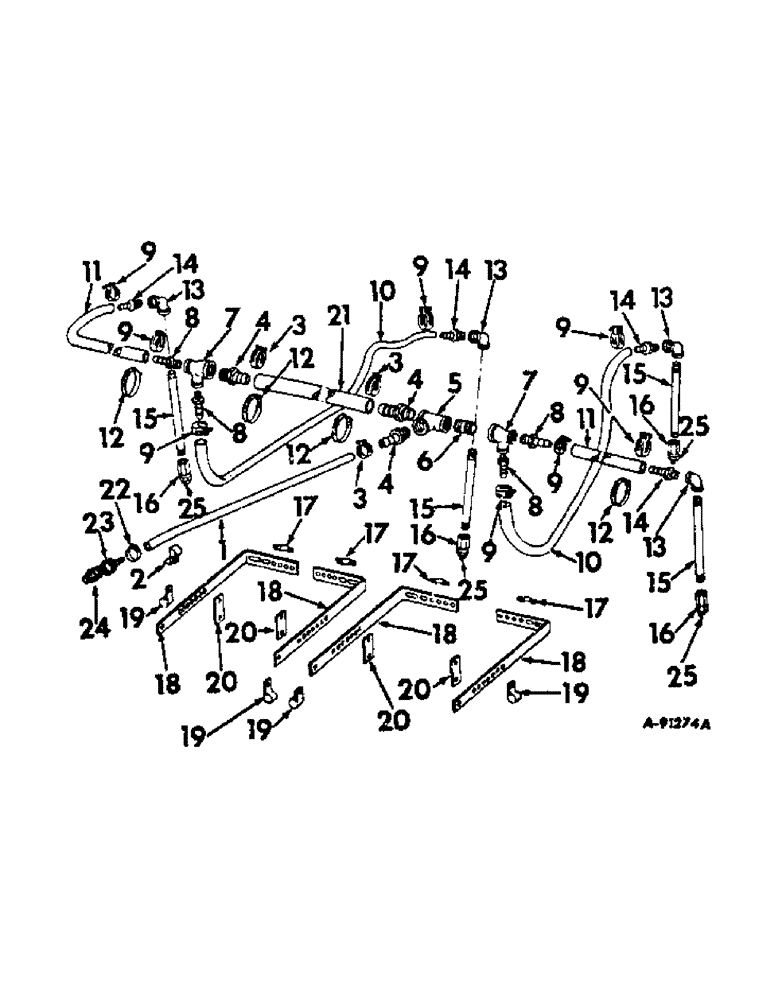

Запчасти Case IH LIQUID (C-09) - LIQUID CHEMICAL FERTILIZERS, PLANTER HOSES AND CONNECTIONS

1

HOSE, pressure, 1969 and since, use 240 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

2

526653R1

CLIP, hose

3шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16

3шт.

3

233384R91

CLAMP, 1/2 in. hose, 3 for four row, 5 for six row and 9 for eight row

1шт.

4

526635R1

NIPPLE, 1/2 NPT x 1/2 hose brass, 3 for four row, 5 for six row and 9 for eight row

1шт.

5

144089

TEE,1/2" NPT, Fem

1/2 brass pipe, planter hose, 1 for four and six row, 2 for eight row

1шт.

6

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

NIPPLE, 1/2 NPT x 1-1/2 brass pipe planter hose, 1 for four and eight row 2 for six row

1шт.

7

179643

TEE, 1/2 x 1/2 x 3/8 reducing pipe brass, 2 for six row, 4 for eight row

1шт.

7

179645

TEE, 1/2 x 3/8 x 3/8 pipe reducing brass, outside planter hose, 2 per planter

1шт.

8

526634R1

NIPPLE, 3/8 NPT x 3/8 hose brass, 4 for four row, 6 for six row and 8 for eight row

1шт.

9

526611R91

CLAMP, 3/8 in. hose, 2 per hose

1шт.

10

HOSE, planter inner, 2 for four row, 4 for six row and 6 for eight row, use 42 in. of 3/8 in. hose from a 50 ft. roll marked 526601R1

1шт.

11

HOSE, planter outer, 2 per planter, use 83 in. of 3/8 in. hose from a 50 ft. roll marked 526601R1

1шт.

12

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, no. 3 type F hose, 4 for four row, 3 for six row and 5 for eight row

1шт.

13

137538

YOKE

ELBOW, 1/4 x 90 deg pipe brass, 1 per row

1шт.

14

526633R1

NIPPLE, 1/4 NPT x 3/8 hose brass, 1 per row

1шт.

15

443592

NIPPLE, 1/4 x 7-1/2 pipe brass, 1 per row

1шт.

16

486177R1

CONNECTOR, body, 1 per row

1шт.

17

526998R1

CLIP, nozzle pipe, 1 per row

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

526995R1

BRACKET, nozzle attaching, 1 per row

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

526653R1

CLIP, hose to planter frame rail, 1 per row

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

475227R1

STRAP, nozzle attaching bracket, 1 per row

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 3/8 C-Z med lock

2шт.

21

HOSE, planter, 1 for four row, use 18 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

21

HOSE, planter, 2 for six row and 4 for eight row, use 34 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

21

HOSE, planter, 2 for six row, use 60 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

22

526610R91

CLAMP, 1/2 hose

1шт.

23

475220R1

COUPLING, 1/2 in. hose shank brass swivel garden hose 3/4 thrd

1шт.

475222R1

WASHER, hose coupling

1шт.

24

490411R1

ADAPTER, 1/2 NPT x 3/4 garden hose

2шт.

25

671540R1

CAP, nozzle brass, 1 per row

1шт.
