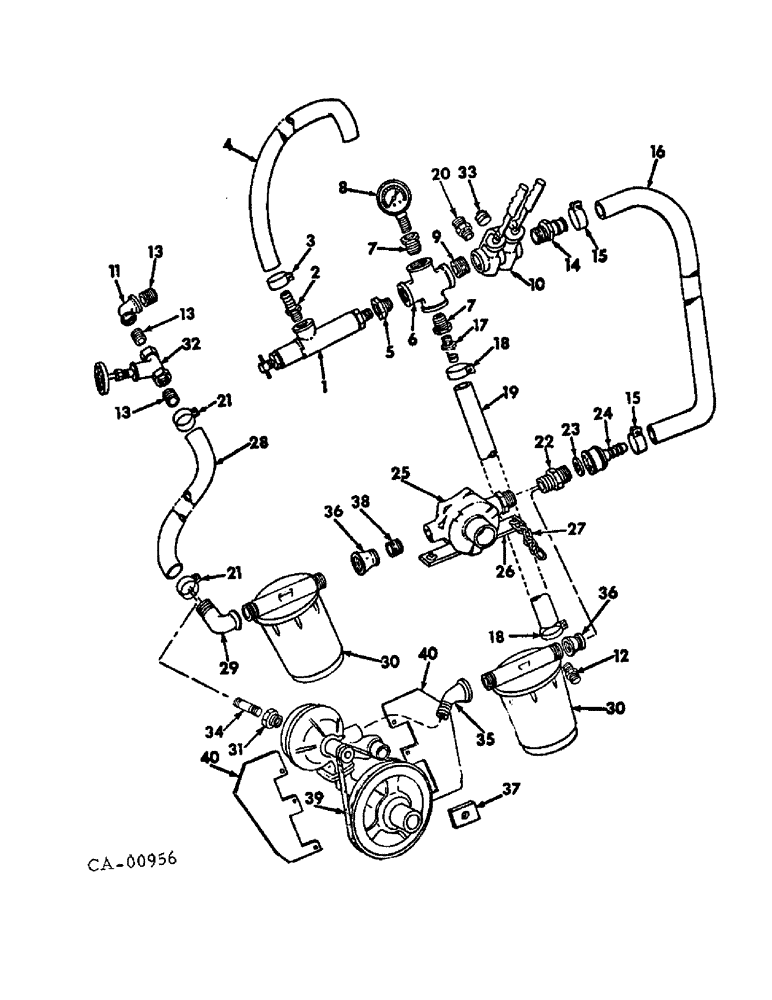

Запчасти Case IH LIQUID (C-07) - LIQUID CHEMICAL FERTILIZERS, CONTROL VALVES, PUMP AND CONNECTIONS, 1970 AND SINCE

1

526788R91

VALVE ASSY, pressure relief, for components see list of parts under details of pressure relief valve

1шт.

2

526635R1

NIPPLE, 1/2 NPT x 1/2 hose shank

1шт.

3

233384R91

CLAMP, 1/2 hose by-pass

1шт.

4

HOSE, by-pass, use 60 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

5

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

6

144159

CABLE

CROSS, 3/4 pipe

1шт.

7

115240

ADAPTER,3/4" NPT Male x 1/4" NPT Fem

3/4 x 1-1/4 pipe reducing

2шт.

8

526992R92

GAUGE

GAGE, pressure

1шт.

9

144614

SPRING

NIPPLE, 3/4 x 1-3/8 pipe

1шт.

10

493039R1

VALVE, control, double handle

1шт.

11

119100

ELBOW,90 Degree, 1" NPT

1 NPT 90 deg street

1шт.

12

490414R1

NIPPLE, 1/2 NPT x 3/8 hose shank

1шт.

13

144615

LINE

NIPPLE, 1 x 1-1/2 pipe

3шт.

14

526636R1

NIPPLE, 3/4 hose

1шт.

15

526609R91

CLAMP, 3/4 hose

2шт.

16

HOSE, discharge, use 72 in. of 3/4 in. hose from a 25 ft. roll marked 526603R1

1шт.

17

490412R1

NIPPLE, 3/4 NPT x 3/8 hose shank

1шт.

18

526611R91

CLAMP, 3/8 hose

2шт.

19

HOSE, agitator, use 66 in. of 3/8 in. hose from a 50 ft. roll marked 526601R1

1шт.

20

490411R1

ADAPTER, 1/2 male hose, 1 used w/pre-emerge, 2 used w/spray boom

1шт.

21

39142H

COLLAR CLAMP

CLAMP, no. 60 hose

2шт.

22

475221R1

ADAPTER, 3/4 male pump hose

2шт.

23

475222R1

WASHER, pump hose coupling

3шт.

24

478010R1

COUPLING, 3/4 female hose

1шт.

25

526990R91

PUMP

ASSY, 6 nylon roller cast iron

1шт.

25

463269R92

PUMP ASSY, 7 nylon roller ni-resistant, for tractors w/540 RPM PTO

1шт.

25

541271R91

PUMP

ASSY, 7 nylon roller ni-resistant, for tractors w/1000 RPM PTO, for components see list of parts under details of pump assembly

1шт.

26

466008R1

ANCHOR, pump

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

466007R91

CHAIN, pump

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

611344R1

WASHER

11/32 x 7/8 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

HOSE, suction, use 48 in. of 1-1/4 in. hose from a 50 ft. roll markred 493570R1

1шт.

29

NLS

NO LONGER SERVICED

ELBOW, 1 x 90 deg street

1шт.

30

542551R1

STRAINER, line

1шт.

31

211116R1

ADAPTER, 1-1/4 x 1 reducer pipe

1шт.

32

671660R91

VALVE, tank shut-off

1шт.

33

444590

PLUG

brass pipe, for machines equipped with spray boom

1шт.

34

127874

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, 1 x 1-1/2 pipe

1шт.

35

NLS

NO LONGER SERVICED

ELBOW, 1 x 45 deg street

1шт.

36

144094

TOOL BOX

COUPLING, 1 x 3/4 reducer pipe

1шт.

37

152028H1

CLIP

1шт.

38

128067

BOLT

NIPPLE, 3/4 x 1-1/2 pipe

1шт.

39

542547R92

PUMP ASSY, centrifugal 540 RPM composed of

1шт.

545469R1

GASKET, Serial Range: volute-frame

1шт.

545470R1

SEAL

1шт.

545471R1

O-RING

1шт.

55568C1

V-BELT 40.00" L, 10 Ribs, Poly 40.00" L, 10 Ribs

1шт.

267805R1

RING

retaining, .625

2шт.

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

2шт.

301020R1

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

377864R1

RING, retaining, 1.812

1шт.

561088R1

SNAP RING,#244, 2.588", Int, Spiral

RING, retaining, 2.588

2шт.

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

sealed ball

2шт.

545473R1

ROLLER, idler bearing outer

1шт.

542645R1

GUARD, belt

2шт.

152028H1

CLIP

1шт.

PO23796

SPACER,1/4" Pipe x 1 1/16"

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 znd sq-nk crg

2шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

39

542548R92

PUMP ASSY, centrifugal 1000 RPM, composed of

1шт.

545469R1

GASKET, Serial Range: volute-frame

1шт.

545470R1

SEAL

1шт.

545471R1

O-RING

1шт.

55569C1

V-BELT 31.00" L, 10 Ribs, Poly 31.00" L, 10 Ribs

1шт.

267805R1

RING

retaining, .625

2шт.

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

2шт.

301020R1

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

377864R1

RING, retaining, 1.812

1шт.

561088R1

SNAP RING,#244, 2.588", Int, Spiral

RING, retaining, 2.588

2шт.

582010R91

BEARING ASSY,0.625" ID x 1.375" OD x 0.4331"

sealed ball

2шт.

545473R1

ROLLER, idler bearing outer

1шт.

542645R1

GUARD, belt

2шт.

152028H1

CLIP

1шт.

PO23796

SPACER,1/4" Pipe x 1 1/16"

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 znd sq-nk crg

2шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

40

542645R1

GUARD, belt

2шт.
