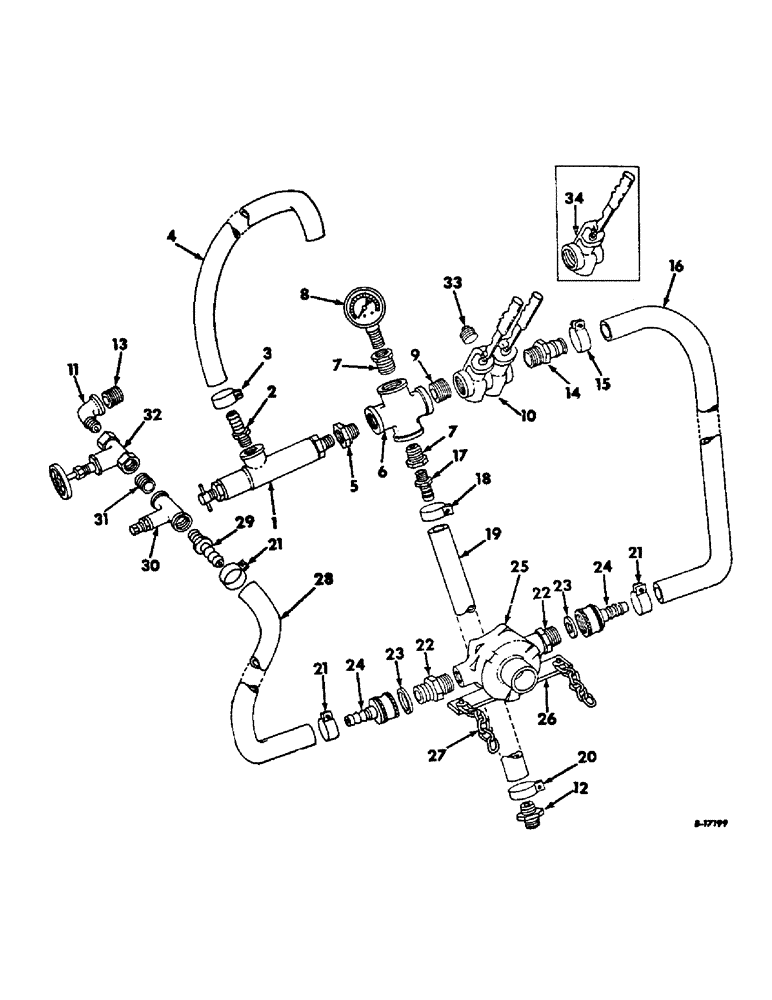

Запчасти Case IH LIQUID (C-05) - LIQUID CHEMICAL FERTILIZERS, CONTROL VALVES, PUMP AND CONNECTIONS, 1968 TO 1970

1

526788R91

VALVE ASSY, pressure relief, for components see list of parts under details of pressure relief valve

1шт.

2

526635R1

NIPPLE, 1/2 NPT x 1/2 hose shank

1шт.

3

233384R91

CLAMP, 1/2 hose by-pass

1шт.

4

HOSE, by-pass, use 60 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

1шт.

5

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

6

144159

CABLE

CROSS, 3/4 pipe

1шт.

7

115240

ADAPTER,3/4" NPT Male x 1/4" NPT Fem

3/4 x 1-1/4 pipe reducing

2шт.

8

526992R92

GAUGE

GAGE, pressure

1шт.

9

144614

SPRING

NIPPLE, 3/4 x 1-3/8 pipe

1шт.

10

493039R1

VALVE, control, double handle, 1969 and since

1шт.

11

126031

ELBOW, 3/4 NPT 90 deg street

1шт.

12

490414R1

NIPPLE, 1/2 NPT x 3/8 hose shank

1шт.

13

219902

NIPPLE, 3/4 x 2 pipe

1шт.

14

526636R1

NIPPLE, 3/4 hose

1шт.

15

526609R91

CLAMP, 3/4 discharge, Serial Range: hose-nipple

1шт.

16

HOSE, discharge, use 72 in. of 3/4 in. hose from 1 25 ft. roll marked 526603R1

1шт.

17

490412R1

NIPPLE, 3/4 NPT x 3/8 hose shank

1шт.

18

526611R91

CLAMP, 3/8 hose

1шт.

19

HOSE, agitator, use 66 in. of 3/8 in. hose from a 50 ft. roll marked 526601R1

1шт.

20

526611R91

CLAMP, 3/8 hose

1шт.

21

526609R91

CLAMP, 3/4 hose

2шт.

22

475221R1

ADAPTER, 3/4 male pump hose

2шт.

23

475222R1

WASHER, pump hose coupling

2шт.

24

478010R1

COUPLING, 3/4 female hose

2шт.

25

526990R91

PUMP

ASSY, 6 nylon roller cast iron, for componets see list of parts under details of pump assembly

1шт.

25

463269R92

PUMP ASSY, 8 nylon roller, ni-resist, for components see list of parts under details of pump assembly

1шт.

26

466008R1

ANCHOR, pump

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

466007R91

CHAIN, pump

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

611344R1

WASHER

11/32 x 7/8 x 1L ga C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

HOSE, suction, use 24 in. of 3/4 in. hose from a 25 ft. roll marked 526603R1

1шт.

29

526636R1

NIPPLE, 3/4 NPT x 3/4 hose shank

1шт.

30

526789R91

FILTER ASSY, strainer, for components see list of parts under details of line strainer

1шт.

31

144614

SPRING

NIPPLE, 3/4 x 1-3/8 pipe

1шт.

32

490407R91

VALVE, tank shut-off

1шт.

33

444590

PLUG

brass pipe, 1969 and since, for machines equipped with spray boom

1шт.

34

490410R1

VALVE, control, single handle, Serial Range: up-1969

1шт.
