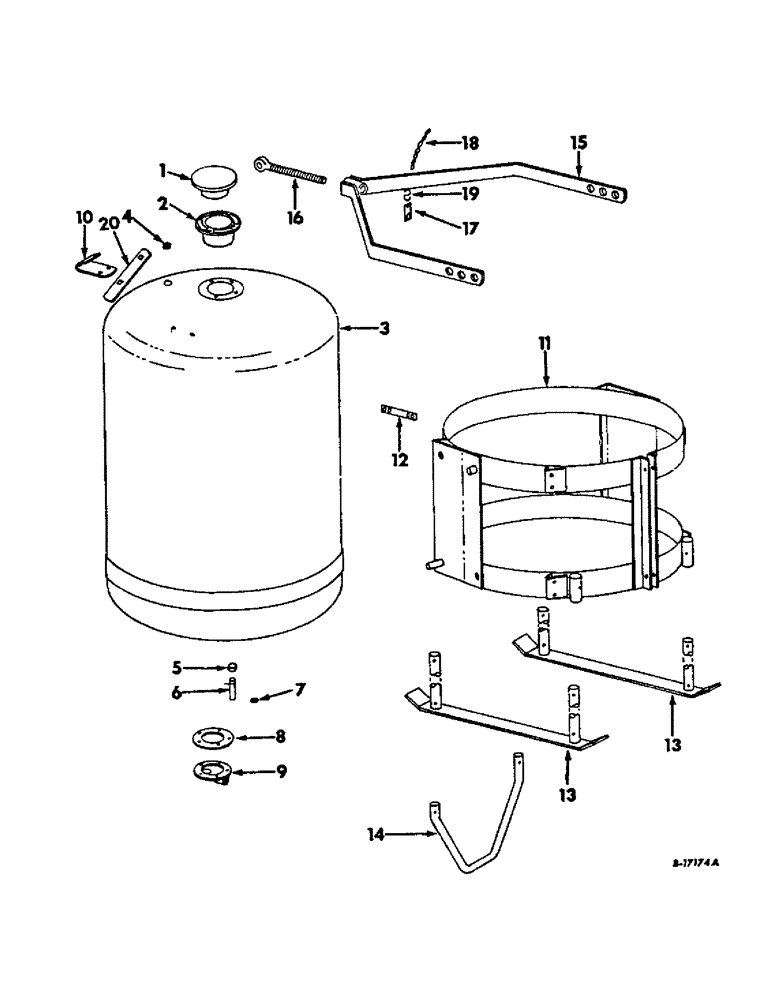

Запчасти Case IH LIQUID (C-03) - LIQUID CHEMICAL FERTILIZERS, LIQUID CHEMICAL TANK AND SUPPORTS

1

492419R1

CAP, filler well

1шт.

2

492418R1

FILLER, well

1шт.

492417R1

RIVET, pop

4шт.

3

490344R11

TANK ASSY, 150 gal. chemical

1шт.

4

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

rubber

1шт.

5

144167

CAP, 1/4 brs pipe agitator nozzle

1шт.

6

490384R1

NOZZLE, agitator

1шт.

7

490385R1

GASKET, rubber

5шт.

8

490386R1

GASKET, drain housing

1шт.

9

490347R1

HOUSING, drain, Serial Range: 1968-1970

1шт.

9

542550R1

HOUSING, drain, 1970 and since

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

5шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120376

NUT,5/16"-18, G5

5шт.

10

490387R1

SUPPORT, valve control

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

3/8 x 1-1/8 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

4шт.

11

490388R2

FRAME ASSY, support

1шт.

385159R91

PIN

quick attachable cot

2шт.

12

526653R1

CLIP, valve to planter hose

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 13 x 1-3/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

13

490399R1

STAND ASSY

2шт.

14

490440R3

BAR, safety support

1шт.

Q850

PIN

3/8 x 1-7/8 std-hd

6шт.

586591R1

COTTER PIN

PIN, quick attachable cot

6шт.

15

490402R1

SUPPORT ASSY, bail

1шт.

16

490404R2

BOLT, eye

1шт.

280954

NUT,3/4"-10, G5

7/8-9 C-Z hex

2шт.

17

490405R1

BAR, chain clip

1шт.

13094R1

PIN, 5/16 x 1-1/4 self opening cot 3/16" x 1 1/4"

2шт.

18

490406R1

CHAIN, upper bail, no. 25 and sash chain, 24 in. long

1шт.

19

374623R1

HOOK

S-HOOK

2шт.

20

493045R1

BAR, rope att arm

1шт.
