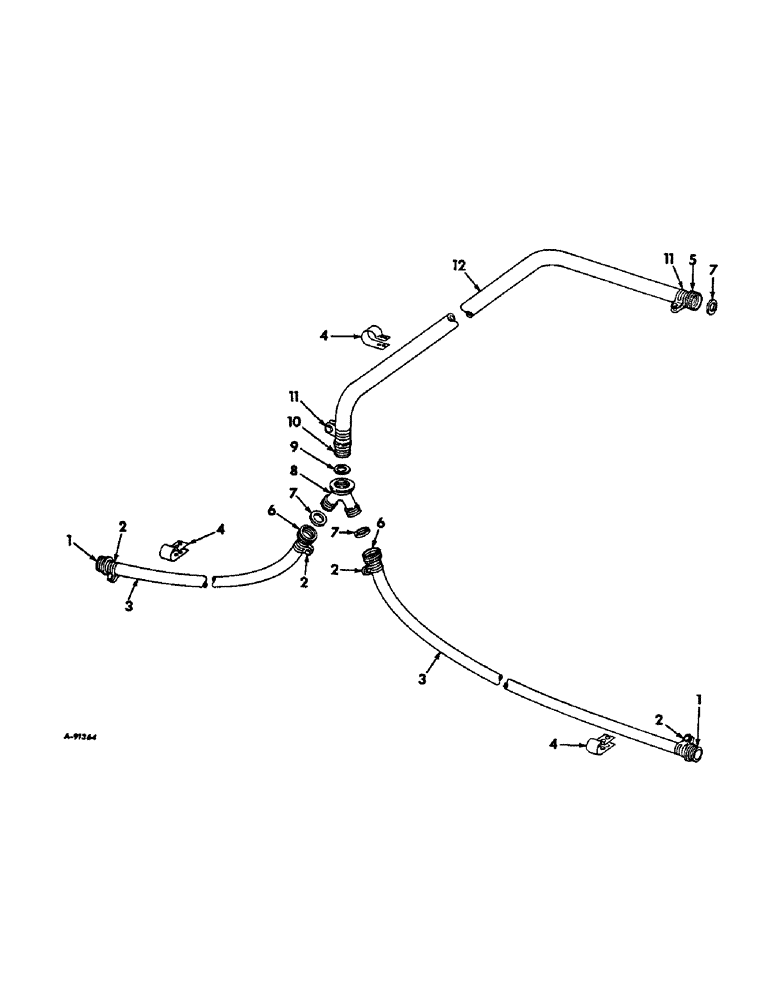

Запчасти Case IH LIQUID (C-12) - LIQUID CHEMICAL FERTILIZERS, HOSES AND CONNECTIONS FOR USE WITH DUPLEX HITCH / PRODUCT GRAPHICS

1

478015R1

COUPLING, 1/2 in. hose shank, 3/4 in. male hose, brass

2шт.

2

233384R91

CLAMP, 1/2 in. hose

4шт.

3

HOSE, extension, use 82 in. of 1/2 in. hose from a 50 ft. roll marked 526602R1

4шт.

4

487533R1

CLAMP, hose

4шт.

5

478010R1

COUPLING, 3/4 in. hose shank, 3/4 in. female hose swivel, brass

1шт.

6

475220R1

COUPLING, 1/2 in. hose shank, 3/4 in. female hose swivel, brass

2шт.

7

475222R1

WASHER, on female hose coupling

5шт.

8

478012R1

COUPLING, 3/4 male, 3/4 female siamese brass

1шт.

9

478722R1

WASHER, on siamese coupling end

1шт.

10

478011R1

COUPLING, 3/4 in. hose shank, 3/4 in. male hose, brass

1шт.

11

526609R91

CLAMP, 3/4 in. hose

2шт.

12

HOSE, pressure, use 156 in. of 3/4 in. hose from a 25 ft. roll marked 526603R1

1шт.

2752432R1

PRODUCT GRAPHIC, IH

1шт.

547496R92

DECAL

PACKAGE, international name product graphics

1шт.
