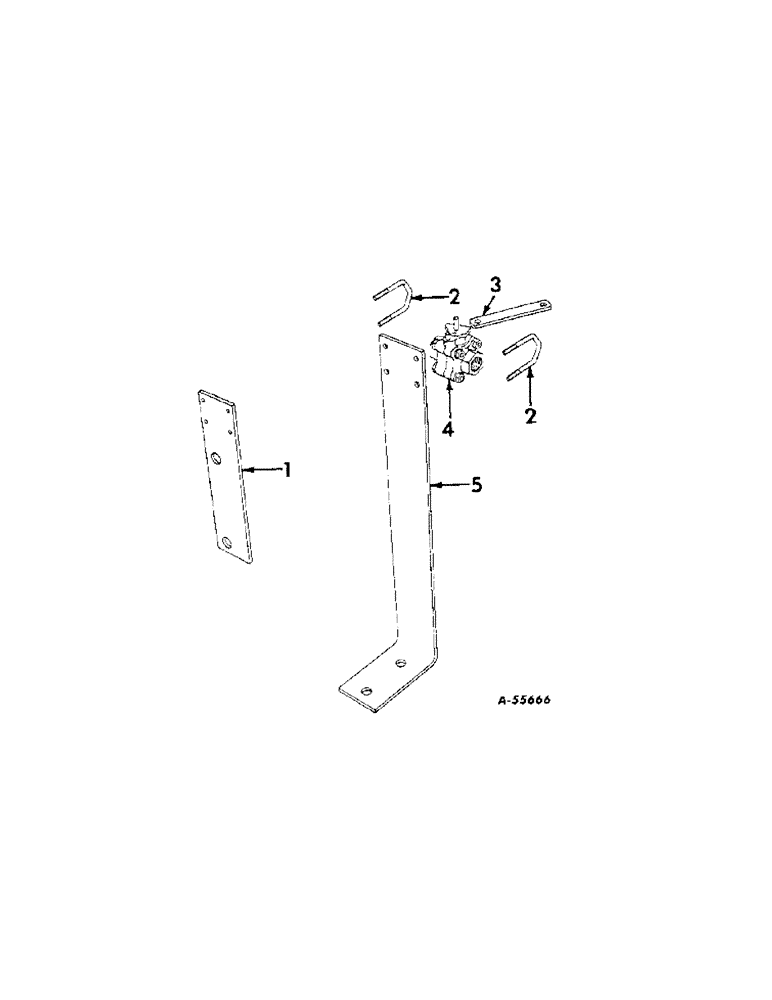

Запчасти Case IH LIQUID (C-27) - LIQUID CHEMICAL FERTILIZERS, SHUT-OFF VALVE AND ATTACHING PARTS, 1959 TO 1965

1

527002R1

BRACKET, valve, for front mounted implements

1шт.

BOLT, 3/4 x 1-3/4 in. mach

2шт.

WASHER, 3/4 in. lock

2шт.

2

527003R1

U-BOLT, valve attaching

1шт.

NUT, 1/4 in.

2шт.

WASHER, 1/4 in. lock

2шт.

3

526993R1

HANDLE, valve

14шт.

4

526994R91

VALVE ASSEMBLY, shut-off, less handle

1шт.

5

527006R1

MOUNTING, shut-off valve

1шт.

BOLT, 1/2 x 1 in. mach

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

527004R91

KIT, shut-off valve service, for valve assy, 526994R91, consists of (2) body seals (NSS), (2) ring seats (NSS), (1) stem seal (NSS)

1шт.
