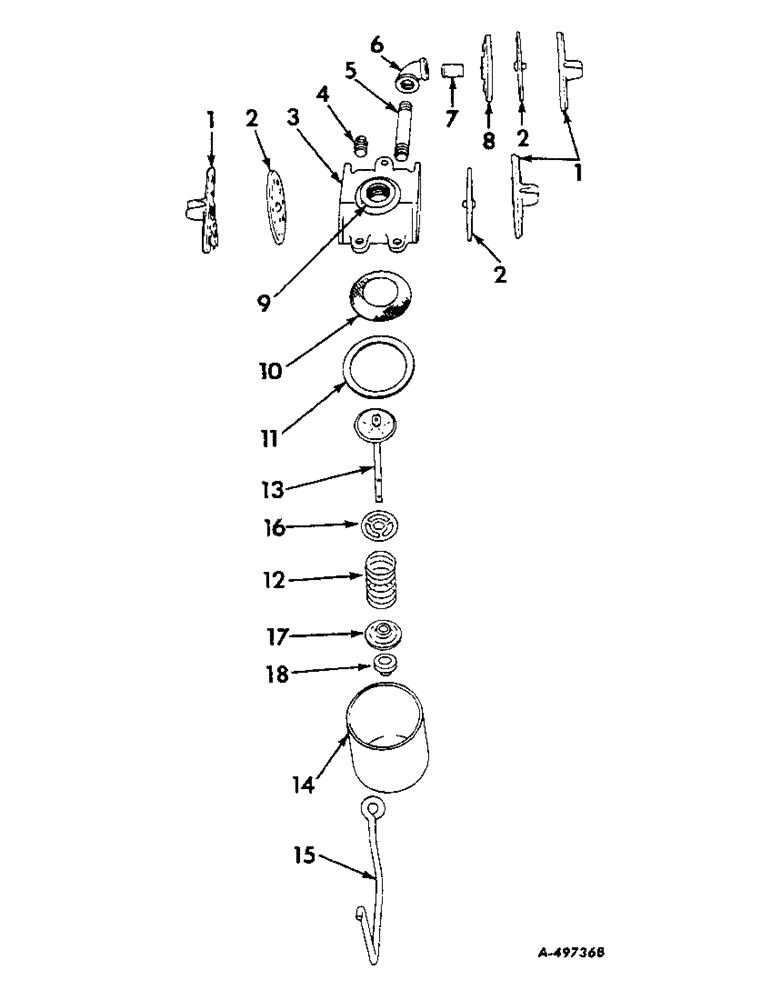

Запчасти Case IH LIQUID (C-25) - LIQUID CHEMICAL FERTILIZERS, FLOW CONTROL VALVE, 1959 TO 1965

1

626230R1

HEAD, flow control

1шт.

19398R1

BOLT, 1/4 x 1-1/4 in. sq-hd cd-pltd mach

2шт.

129-409

WING NUT,1/4"-20

NUT, 1/4 in. cd-pltd wing

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. cd-pltd wing

1шт.

2

626233R1

DISK, metering valve

1шт.

3

626366R11

HOUSING W/WASHER, flow control valve

1шт.

One used for 4-rows with single tank and two used for 6-rows with double tank.

1шт.

3

626217R11

HOUSING W/WASHER, flow control valve

1шт.

One used for 2 rows with single tank and two used for 4-row with double tank.

1шт.

626247R1

BOLT, 5/16 x 1-3/4 in. cd-pltd sq-hd mach

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. cd-pltd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 5/16 in. cd-pltd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

143934

PLUG

3/8 in. pipe

1шт.

5

626339R1

NIPPLE, 3/8 x 3 in. pipe

1шт.

5

527084R1

NIPPLE, 3/8 x 5 in. pipe

1шт.

6

119097

ELBOW,90º, 3/8" NPT

3/8 in. 90 degree pipe

1шт.

7

626369R1

NIPPLE, 3/8 x 1 in. pipe

1шт.

8

626335R1

ADAPTER, flow control

1шт.

9

626215R2

WASHER, flow control valve rubber

1шт.

10

626216R1

SCREEN, filter

1шт.

11

625861R2

WASHER, sediment bulb rubber

1шт.

12

626231R1

SPRING, flow control, Serial Range: 1959-1963

1шт.

12

474711R1

SPRING, flow control, 1964 and since

1шт.

13

474706R1

VALVE ASSEMBLY, flow control, also order cup, 474705R1 and pin, 220257 if not so equipped

1шт.

14

60877D

BOWL

sediment

1шт.

15

626218R1

BAIL, sediment bowl

1шт.

16

474710R1

GUIDE, valve, 1964 and since

1шт.

17

474705R1

CUP, spring retainer, 1964 and since

1шт.

18

474709R1

COLLAR, valve stem, 1964 and since

1шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 in. stainless steel cotter, 1964 and since

1шт.

626209R1

ROD, control valve link

1шт.
