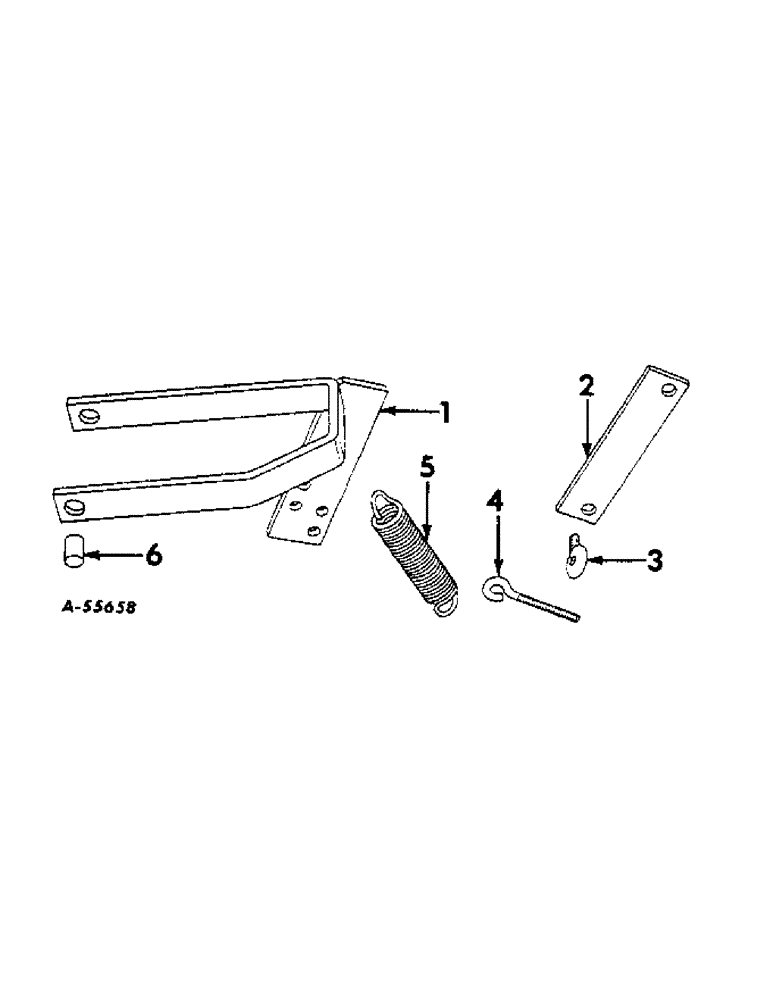

Запчасти Case IH LIQUID (C-40) - LIQUID CHEMICAL FERTILIZERS, SPRING LOADED APPLICATOR

1

525317R91

FRAME, left attaching

1шт.

1

525318R91

FRAME, right attaching

1шт.

BOLT, 1/2 x 1-1/2 in. mach

4шт.

NUT, 1/2 in.

4шт.

WASHER, 1/2 in. lock

4шт.

WASHER, 17/32 x 1-1/4 x 16 ga

4шт.

2

525319R1

ANCHOR, spring

1шт.

BOLT, 1/2 x 2-3/4 in. mach

1шт.

NUT, 1/2 in.

1шт.

WASHER, 1/2 in. lock

1шт.

3

26489BX

EYEBOLT W/NUT, spring anchor

1шт.

NUT, 1/2 in.

1шт.

WASHER, 1/2 in. lock

1шт.

4

S4808X

EYEBOLT

W/NUT, spring adjusting

1шт.

NUT, 3/8 in.

1шт.

510579R1

WASHER

13/32 x 1-1/4 in. x 16 ga

1шт.

5

PO6

SPRING

pressure, 1-1/2 in. OD, lgth, 7-1/4 in. 28 coils

1шт.

PIN, 5/16 x 1-1/4 in. self-opening cotter

1шт.

6

PO17943

BUSHING, frame pivot arm

1шт.
