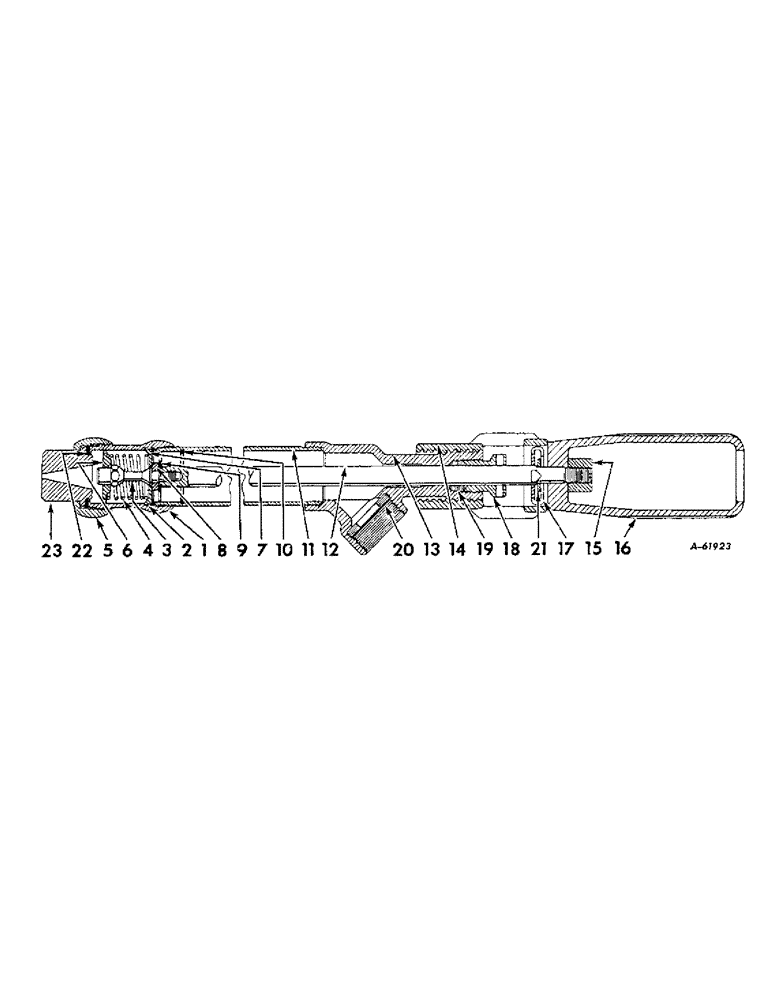

Запчасти Case IH LIQUID (C-37) - LIQUID CHEMICAL FERTILIZERS, GUNJET ASSEMBLY, 1959 TO 1965

463283R91

GUNJET ASSEMBLY, spraying systems, no. 2-OC20, consists of ref. nos. 1 thru 23

1шт.

1

486158R1

UNION, nozzle housing

1шт.

2

486159R1

WASHER, spring collar

1шт.

3

486160R1

STUD, adjusting stem end

1шт.

4

486161R1

SPRING, coil

1шт.

5

486162R1

FITTING, orifice cap tip

1шт.

6

486163R1

WASHER, pressure plate

1шт.

7

GASKET, spring collar, order kit 463284R91

1шт.

8

PLATE, seat, order kit 463284R91

1шт.

9

486164R1

WASHER, guide

1шт.

10

486165R1

RING, snap

1шт.

11

486166R1

TUBE

1шт.

12

486167R1

ROD, adjusting stem

1шт.

13

486168R1

TEE, inlet body

1шт.

14

486169R1

ADJUSTER, sleeve

1шт.

15

486170R1

NUT, hand grip

1шт.

16

486171R1

GRIP, hand

1шт.

17

COLLAR, adjusting screw, order kit 463284R91

1шт.

18

486172R1

FITTING, packing screw

1шт.

19

PACKING, thermo leather, order kit 4632849R1

1шт.

20

WASHER, garden hose, order kit 463284R91

1шт.

21

486173R1

WASHER, hand grip

1шт.

22

5806

GASKET, OC tip

1шт.

23

486174R1

TIP, large off-center

1шт.

463284R91

REPAIR KIT, gunjet no. 2, consists of ref. 7, 8, 17, 19, and 20

1шт.

463285R1

HOSE, gunjet

1шт.

463286R1

NIPPLE, hose, 1/2 NPT x 1/2 ID

1шт.

463287R1

NIPPLE, gunjet connection

1шт.
